Fuel tank position/design/function - GF47.10-P-3000D
MODEL 170
| Fuel tank position | The fuel tank (80) is positioned in the trunk above the rear axle | ||
| Fuel tank design | The fuel tank (80) is manufactured from sheet steel. | ||

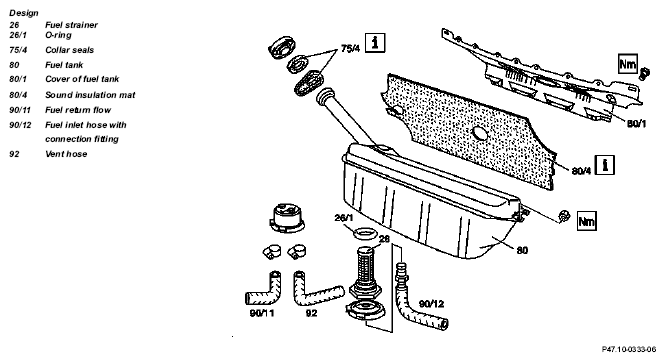

| Fuel tank function | The fuel is drawn through the fuel strainer (26) and the fuel inlet hose (90/12). The fuel flows back along the return flow hose (90/11). The vent hose (76/1) runs to the activated charcoal canister. | ||
| Fuel tank ventilation system function | GF47.10-P-3005B | ||
| Fuel gage sensor (B4) position/task/design/ function | GF47.10-P-3001B | ||
| Splash bowl position/task/function | GF47.10-P-3101C | ||
| Vent valve position/task/function | GF47.30-P-3101D | ||
| On-board refueling vapor recovery function | GF47.10-P-3004A |
