Side impact protection system function - GF91.60-P-2005A

MODEL 208 129 as of 1.9.95,

MODELS 140, 170, 202 with CODE (292) Side airbag at front left and right

MODEL 210 up to 30.6.99 with CODE (292) Side airbag at front left and right except CODE (290) Windowbag except CODE (293) Left and right rear sidebag except CODE (491) U.S. version except CODE (498) Japanese version

Illustrated on model 210.0

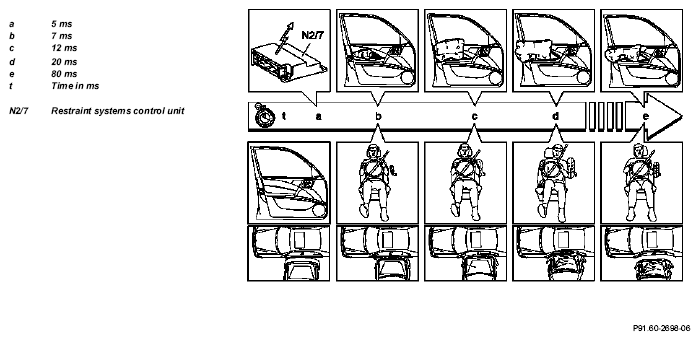

Chronological sequence of sidebag deployment

The illustration shows the chronological sequence of sidebag deployment after a heavy side impact.

The times that are shown are merely to indicate the extremely rapid speed at which the sidebag is inflated and deflated.

The values are therefore only examples and not generally valid in the sense of a specification or mandatory requirement.

Side impact (shown on model 210)

If the driver sidebag sensor (A53) or the front passenger sidebag sensor (A54) detects a side impact, the relevant crash data are sent to the emergency tensioning retractor (ETR) with airbag (AB) control unit (N2/2).

The emergency tensioning retractor (ETR) with airbag (AB) control unit (N2/2) checks the plausibility of the signal and if appropriate activates the squibs for the sidebag at the affected side of the vehicle.

• If a side impact from the left occurs, the driver sidebag squib (R12/9) is activated.
• If a side impact from the right occurs, the front passenger sidebag squib (R12/10) is activated.

Front passenger seat occupancy

In vehicles with seat occupied recognition or automatic child seat recognition, the occupancy status of the front passenger seat is recorded.

If the front passenger seat is not  occupied or a child seat is not  detected the sidebag  at the passenger-side will not  activate.

	Airbag and Emergency Tensioning Retractor Control Unit, location/task/design/function	Model 210 up to 1.6.98, Model 210 from 1.6.98 up to 30.6.99.	GF91.60-P-4006A
	Sidebag sensor, location/task/design/function		GF91.60-P-4009A
	Driver/front passenger sidebag, location/task/design/function	Model 210 as of 1.6.98, Model 210 as of 1.6.98 with code (292) front left and right sidebag.	GF91.60-P-4004A
	Seat occupied recognition, location/task/design/function	Model 129 as of 1.9.95, model 140 as of 1.11.95, model 202 from 1.8.96 to 30.11.97 except code (491) USA version. Model 129 from 1.9.95 to 31.5.97, model 140 from 1.11.95 to 31.5.97, model 202 from 1.8.96 to 31.5.97 with code (491) USA version. Model 210 from 1.2.96 to 28.2.97.	GF91.60-P-4010A
	Seat occupied recognition with automatic child seat recognition, location/task/design/function	Models 129, 140, 202 as of 1.6.97, model 210 from 1.3.97 to 1.6.98 with code (491) USA version. Model 210 as of 1.6.98. Model 202 as of 1.12.97 except code (491) USA version.	GF91.60-P-4008A
	Airbag OFF indicator lamp, location/task	Models 129, 140, 202 as of 1.6.97, model 210 from 1.3.97 to 1.6.98 with code (491) USA version. Model 210 as of 1.6.98. Model 202 as of 1.12.97 except code (491) USA version.	GF91.60-P-4012A
	Supplemental Restraint System (SRS) Deployment Logic	Model 129	GF91.60-P-0002-08F
		Model 140	GF91.60-P-0002-08E
		Model 170	GF91.60-P-0002-08D
		Model 202	GF91.60-P-0002-08C
		Model 208	GF91.60-P-0002-08B
		Model 210	GF91.60-P-0002-08A
