Check & Adjust Front Toe Angle: Adjustments

For check and adjustment procedure refer to illustrations. See Fig 1 and Fig 2 . Vehicle manufacturer does not provide step-by-step adjustment procedures for 4-Matic. Procedure should be similar.

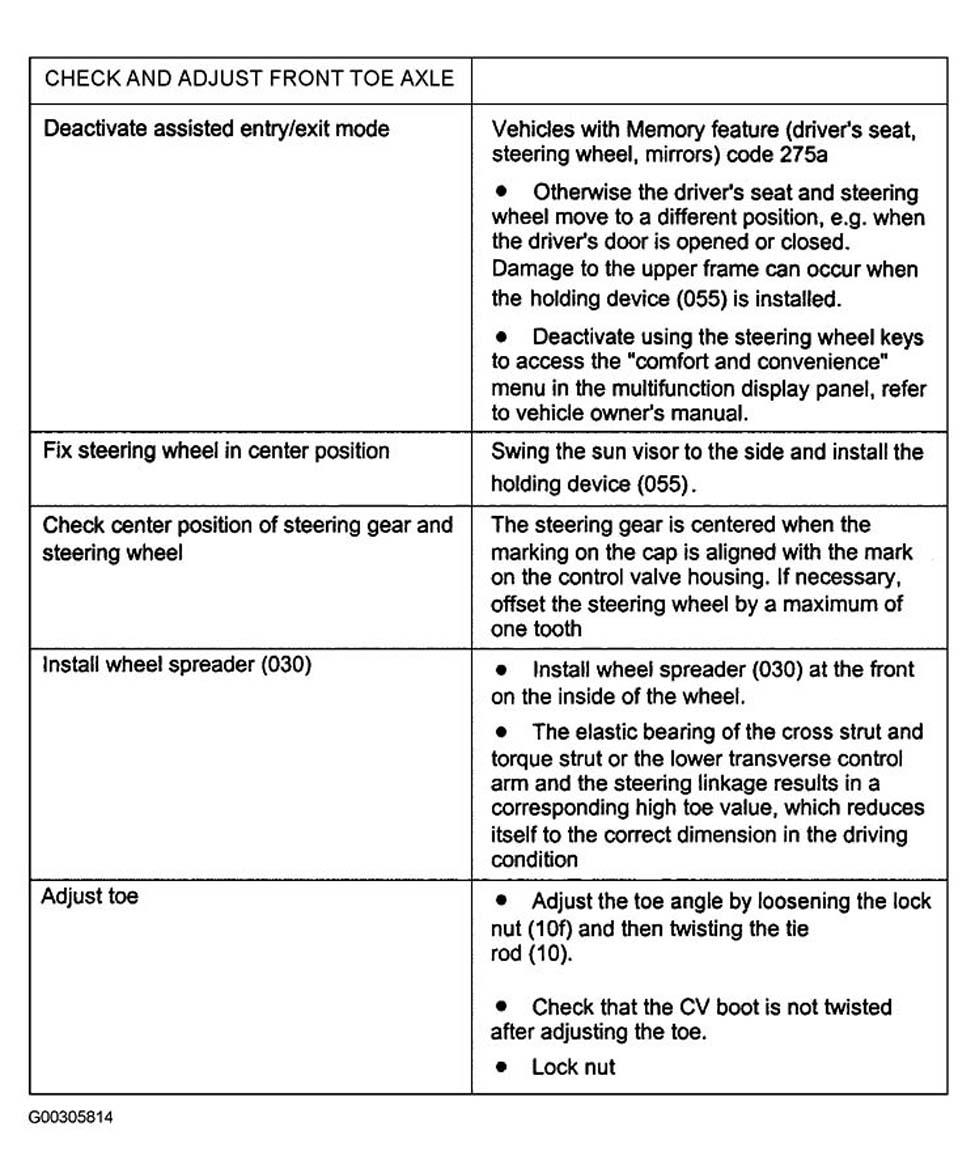

Fig 1: Check & Adjust Front Toe Angle Procedure (RWD - 1 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

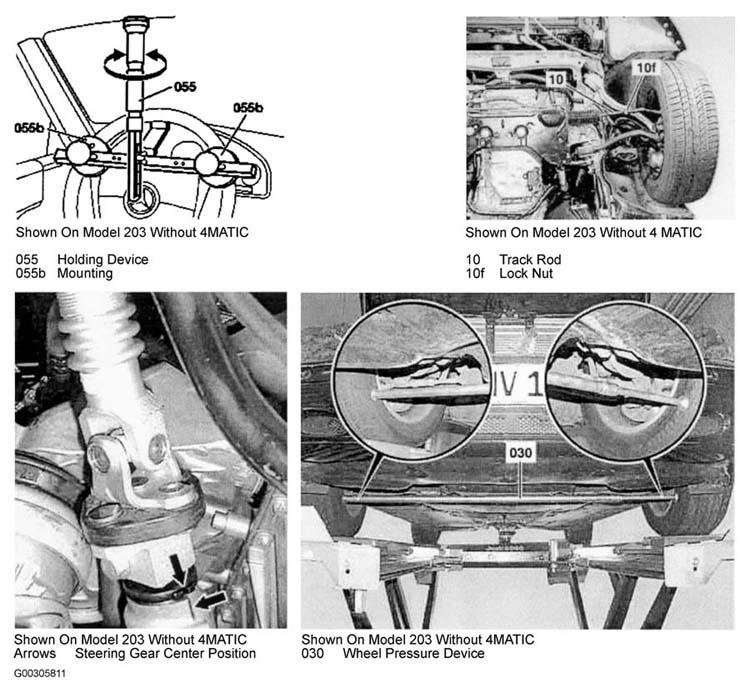

Fig 2: Check & Adjust Front Toe Angle Procedure (RWD - 2 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
