Driver-Side Fuse And Relay Module Connector End View (K40/2)

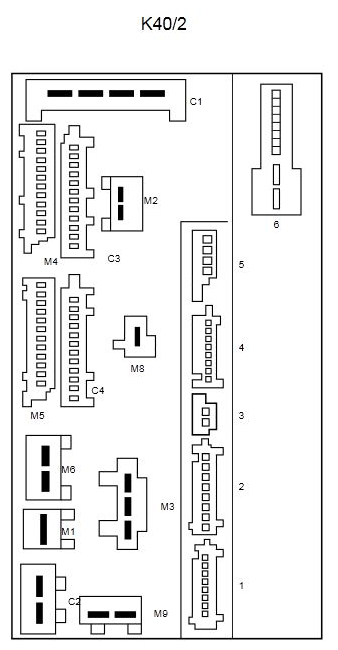

Fig 1: Driver-Side Fuse And Relay Module Connector End View (K40/2)
G11070657Courtesy of MERCEDES-BENZ USA
