Disassembling and assembling floor shift - AR27.60-P-0920B: Notes

TRANSMISSION 722.60 /610 /611 /612 /613 /62 /630 /631 /66 (except, 722.626 /628)

Not with one-touch shift

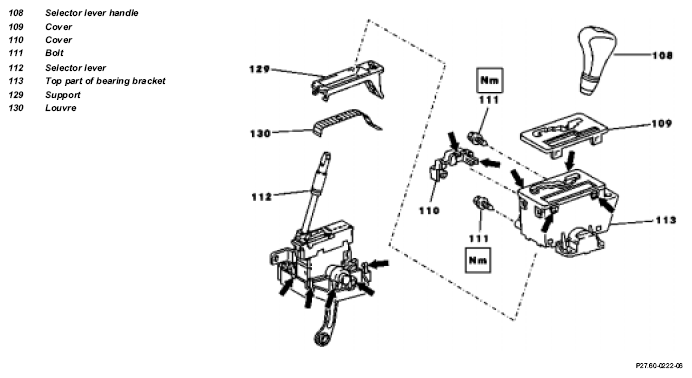

Fig 1: Identifying Floor Shift Disassemble/Assemble Components (1 Of 2)
G04606658

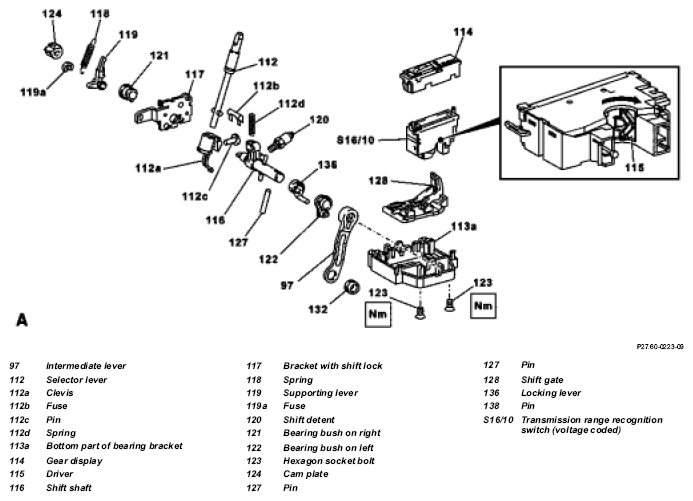

Fig 2: Identifying Floor Shift Disassemble/Assemble Components (2 Of 2)
G04606659
Modification notes

1.7.97 Remove sleeve Step 14a, included for first time
DISASSEMBLINGASSEMBLING Disassembly, assembly
1 Remove selector lever handle (108)   AR27.60-P-0920-01A
2 Unclip trim (109) (arrows)
3 Unclip cover (110) (arrows)
4 Unscrew bolt (111) TORQUE SPECIFICATION *BA27.60-P-1003-02A
5 Move selector lever (112) into position "D"
6 Unclip upper section of bearing bracket (113) (arrows)
7 Pull carrier (129) out of upper section of bearing bracket and remove sliding cover (130)
8 Take off gear display (114)
9 Disconnect gear identification switch (S16/10) IMPORTANTInstallation:  Move selector lever into position "1"
In the installed position of the transmission range recognition switch relative to shift shaft, driver (115) must be positioned at the rear in direction of travel (arrow).

10 Take off shift shaft (116) complete with intermediate lever (97) and bracket with shift lock (117) IMPORTANTInstallation:  Insert components only pre-assembled into bottom part of bearing bracket (113a) and grease bearing points. *BR00.45-Z-1001-06A
11 Pull shift shafts (116) out of bracket with shift lock
12 Detach selector lever with clevis (112a) by removing retainer (112b) and pulling out pin (112c) IMPORTANT Spring (112d) may jump out.
REFER TO COMPONENT MODIFICATIONS Selector lever brazed Transmission 722.6 as of 01.05.96 BT27.60-P-0002-01A
13 Unbolt shift detent (120) IMPORTANTInstallation:  Grease ball. *BR00.45-Z-1001-06A
14 Remove bearing bush on left (122); take pin (127) out of shift shaft with a press for this step INSPECT Inspect bearing bush for wear, replace if necessary.
15 Separate shift shaft (116) with idler lever (97) from sleeve (137) by removing pin (127) IMPORTANTInstallation:  Grease pin lightly before installing it in the shift shaft.
REFER TO COMPONENT MODIFICATIONS Center shift modified BT27.60-P-0001-01A
16 Remove right bearing bush (121) from bracket INSPECT Inspect bearing bush for wear, replace if necessary.
17 Take off supporting lever (119); release spring (118) and take off circlip (119a) for this step
18 Take shift gate (128) off bottom part of bearing bracket; unscrew hexagon socket bolts (123) for this step TORQUE SPECIFICATION *BA27.60-P-1002-02A
19 Reassemble in opposite order
20 Set play at shift lock SPECIAL TOOL AR27.60-P-0910A
Inspection data of shift lock

Number Designation Transmission 722.6
BE27.60-P-1001-01A Size of gap "a" between locking lever and cam plate   mm 0.2
Figure see   AR27.60-P-0910A
TORQUE SPECIFICATION Tightening torques of floor-mounted shift

Number Designation Transmission 722.6
BA27.60-P-1002-02A Bolt of shift gate to bottom part of bearing bracket Nm 6
BA27.60-P-1003-02A Bolt of bracket of shift lock to top part of bearing bracket Nm 3.5
Fig 3: Identifying Electrical Connection Set (201 589 00 99 00)
G04606660
Repair materials

Number Designation Order number
BR00.45-Z-1001-06A Long-life grease A 000 989 63 51
