Remove/install camshaft Hall sensor - AR15.10-P-2000TY
ENGINE 113.967 in MODEL 219.375
ENGINE 113.990 in MODEL 219.376

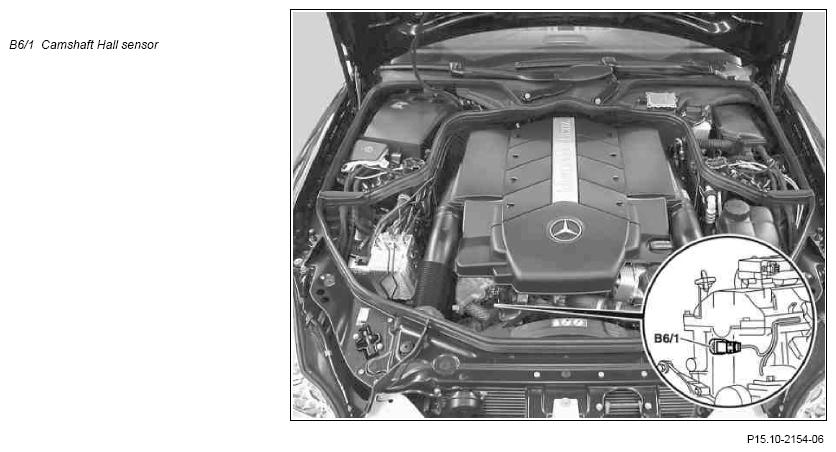

Illustrated on model 219.375
| Remove/install | |||
| 1 | Open engine hood | AR88.40-P-1000TX | |
| 2 | Disconnect the electrical connector at the camshaft Hall sensor (B6/1) | ||
| 3 | Remove camshaft Hall sensor (B6/1) from cylinder head | ||
| *BA15.10-P-1002-03A | |||
| 4 | Install in the reverse order |
POSITION SENSOR
| Number | Designation | Engines 113.940/941/942/943/944/948/960/961/962/963/964/965/966/967/968/969/971/980/981/982/984/986/992/993/995 | Engines 113.987/988/990/991 | |
|---|---|---|---|---|
| BA15.10-P-1002-03A | Camshaft Hall sensor on cylinder head | Nm | 8 | 8 |
