Interior protection sensor, location/purpose/function - GF80.50-P-4113TA
MODEL 211.0 with code (551a) Anti-theft alarm system (ATA) with code (882b) Interior motion sensor (only with anti-theft alarm system) except CODE (413) Panorama sliding roof
MODEL 211.2 with code (551a) Anti-theft alarm system (ATA) with code (882b) Interior motion sensor (only with anti-theft alarm system)

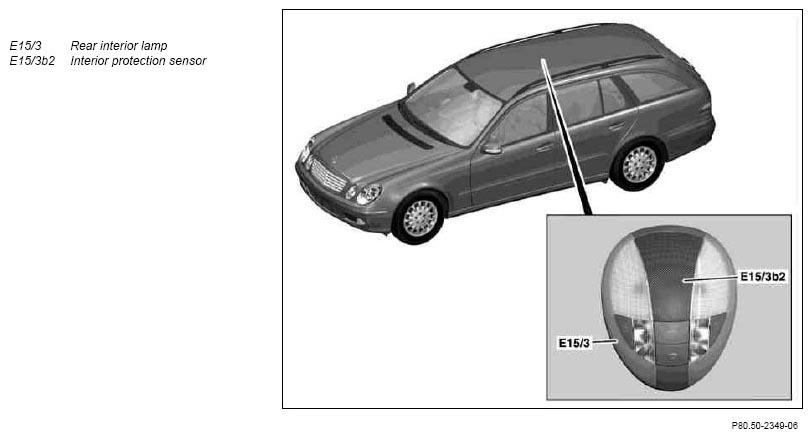

Shown on model 211.2
| Interior protection sensor, location | The interior protection sensor (E15/3b2) is located in the rear interior lamp (E15/3) |
| Interior protection sensor, purpose | The interior protection sensor (E15/3b2) operates a motion sensor and senses motions in the passenger compartment |
| Interior protection sensor, function | Monitoring interior compartment with aid of ultrasonic signals not specially focussed. In this manner the interior protection sensor (E15/3b2) recognizes entry into the vehicle and can actuate an alarm. |
