Tire Pressure Monitor Reactivation
- Turn ignition switch to OFF position.
- Ensure inflation pressure of all 4 tires is as specified on tire placard (located on inside of fuel filler flap).
- Turn ignition switch to ON position (engine may be on or off).
- Press menu select button (located on left side of multifunction steering wheel) until the standard display menu (odometer) appears in multifunction display on instrument cluster. In some models, the standard menu will appear when the ignition is switched on.
- Scroll using the up/down arrow buttons (located on left side of multifunction steering wheel) until a TPMS related menu is displayed.

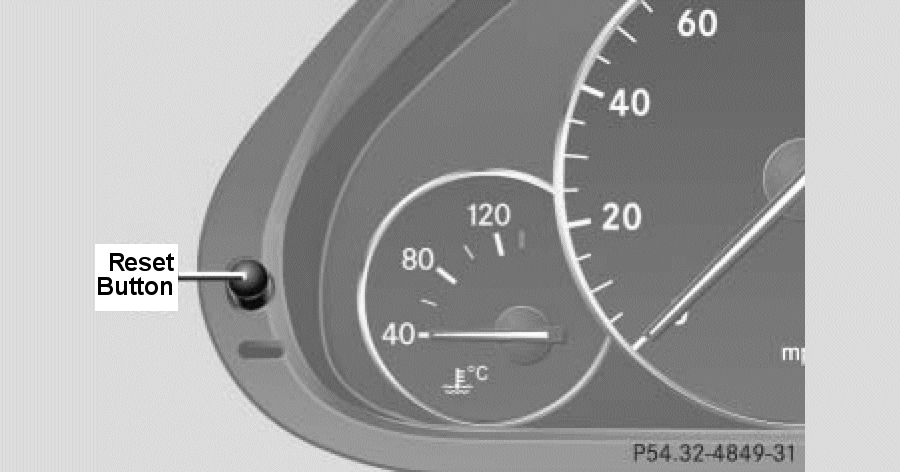

- Press reset button on left side of instrument cluster. See Fig 1. The message "RESTART TIRE PRESSURE MONITOR?" should appear in multifunction display.
- Using "+" button (located on right side of multifunction steering wheel), select "YES". The multifunction display will now display a message confirming TPM system is activated. If a message appears requesting reactivation, perform procedure again from beginning.
- After driving for at least 10 minutes, the system checks whether the current tire pressures are within the specified range. The new tire pressures are then accepted as reference values and monitored.NOTE: To cancel the TPMS restart, press the "-" (minus) button. The tire pressure values stored at the last restart will be retained.
NOTE:
In the following step, pressing any other button other than the "+" button will terminate activation process.
