Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component |
Location |

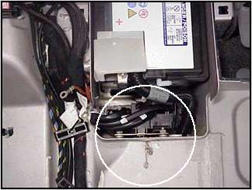

| Front Prefuse Box |
Under rear seats. See Figure. |
| Front SAM Control Module W/Fuse & Relay Module |
Under right side of dash. See Figure. |
| Fuse Box |
Left end of dash. |

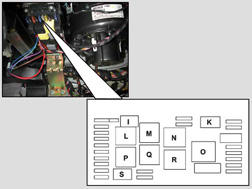

| Rear SAM Control Module W/Fuse & Relay Module |
Under center console. See Figure. |
