Fuel consumption signal, function - GF07.61-P-3029SM
ENGINE 113.986
ENGINE 113.987
ENGINE 113.988
ENGINE 113.989

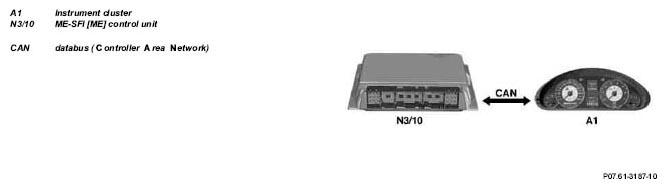

Fig 1: Identifying Instrument Cluster, ME Control Unit And Data Bus (Controller Area Network) (Engine 113.986)
The current fuel consumption is sent to the trip computer in the instrument cluster (A1) by the ME control unit (N3/10) in the form of square-wave pulse packages.
One square-wave pulse means 0.2 l/h.
The instrument cluster consumption signal is thus calculated (e.g. 8.2 l/h) and displayed in the multifunction display.
| ME-SFI [ME] control unit component description | N3/10 | GF07.61-P-6000SM |
