Belt tension sensor component description - GF91.60-P-4108SXU
MODEL 216.3, 221.0 /1
with CODE (494) USA version
up to Model Year 8

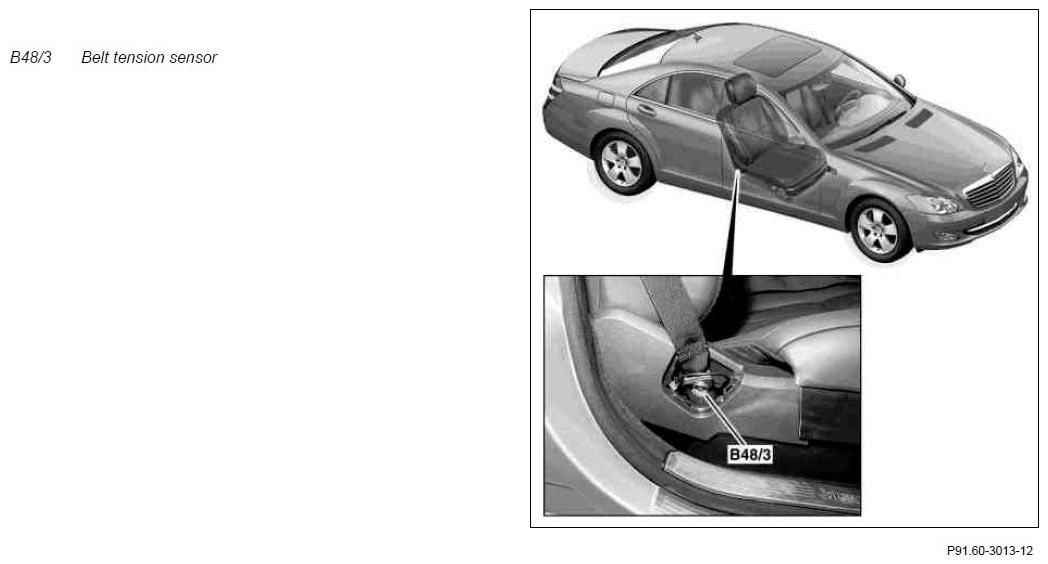

Shown on model 221.0
Location
The belt tension sensor is located at the belt end fitting of the seat belt on the front passenger seat.
Task
The belt tension sensor determines the belt tension and makes it available to the Weight Sensing System (WSS) control unit (N110) in model 216 or the WSS (Weight Sensing System) control unit (N2/13) in model 221.
