Transmission oil cooling, function - GF27.55-P-2000AHS
TRANSMISSION 722.9 in MODEL 216.3 as of model year 2009
/ YoM 08
TRANSMISSION 722.9 in MODEL 216.3 (except 216.374) as of Model Year 2011
/YoM 10 model refinement package
TRANSMISSION 722.9 in MODEL 221.0 as of model year 2009
/ YoM 08
TRANSMISSION 722.9 in MODEL 221.0 (except 221.095)
TRANSMISSION 722.9 in MODEL 221.0 (except 221.074) as of Model Year 2011
/YoM 10
TRANSMISSION 722.9 in MODEL 221.1 as of model year 2009
/ YoM 08
TRANSMISSION 722.9 in MODEL 221.1 (except 221.195)
TRANSMISSION 722.9 in MODEL 221.1 (except 221.174) as of Model Year 2011
/YoM 10
Cooling circuit
Function requirements for transmission oil cooling, general
- Circuit 87 ON
- Circuit 61 (engine running)
Transmission oil cooling, general
Transmission oil cooling lowers the temperature of the transmission oil and thus prevents overheating damage in the transmission.
Transmission oil cooling, function sequence

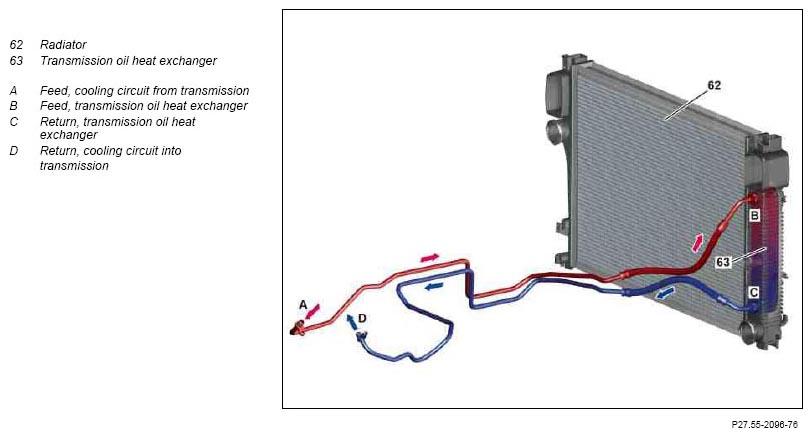

The transmission oil is drawn out of the transmission oil pan by a mechanical pump in the transmission and is pumped via the feed to the transmission oil heat exchanger (which is integrated in the engine radiator). The transmission oil then flows through the return line back to the transmission.
| Overview of system components for automatic transmission (AT) | GF27.10-P-9992AHS |
