O2 sensors, location - GF07.04-P-4103-02M
Shown is model 240

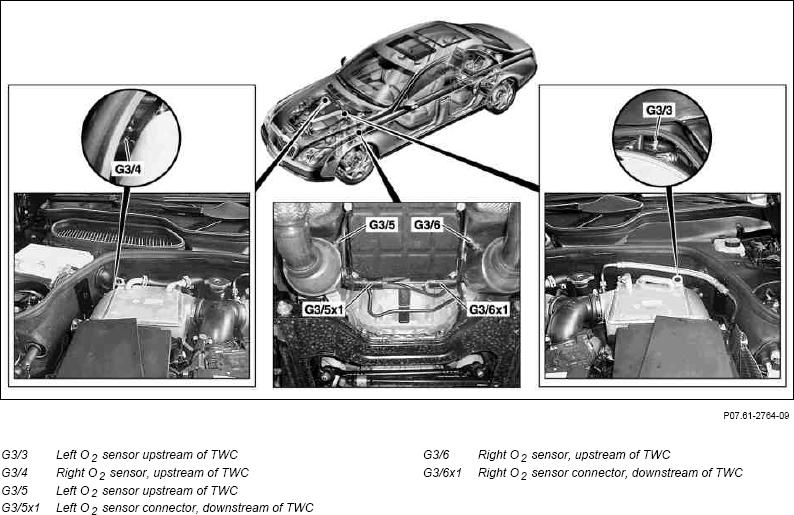

Fig 1: Locating O2 Sensors
Courtesy of MERCEDES-BENZ USA
