Regulating valve component description - GF27.60-P-5140GC
TRANSMISSION 722.6 in MODEL 204.0, 216, 221 up to Model Year 8 Control slide lubrication pressure
Location

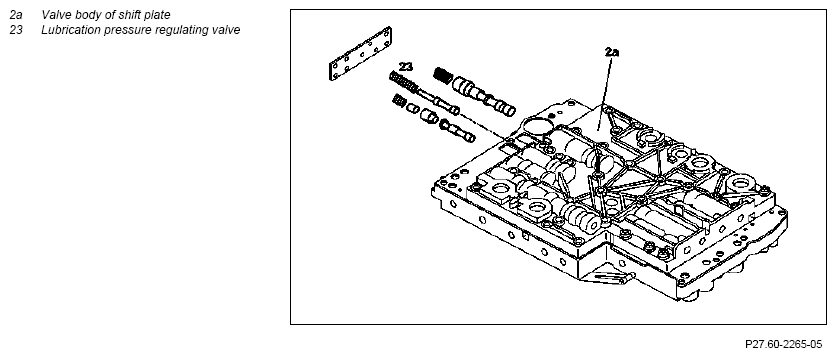

The lubrication pressure regulating valve is located in the valve body of the shift plate.
Task
The lubrication pressure regulating valve limits the pressure in the torque converter. The lubrication pressure is also used to lubricate and cool the mechanical part of the transmission 722.6
Function

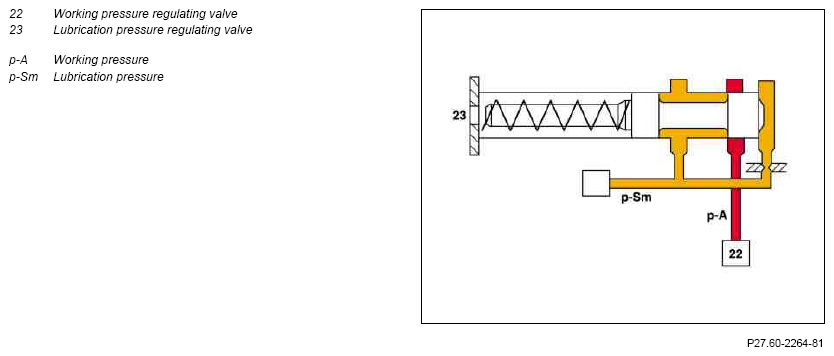

On the working pressure regulating valve excess oil is diverted to the lubrication pressure regulating valve. The lubrication pressure regulated there is used to supply the transmission lubrication and the torque converter.
