Pressure sensor upstream throttle valve actuator, location/task/function - GF07.04-P-5048M
ENGINE 275.950 in MODEL 215, 220
ENGINE 275.951 in MODEL 230 up to Model Year 8
ENGINE 275.953 in MODEL 216, 221 up to Model Year 8
ENGINE 275.954 in MODEL 230 up to Model Year 8
ENGINE 275.980 in MODEL 215, 220
ENGINE 275.981 in MODEL 230 up to Model Year 8
ENGINE 275.982 in MODEL 216, 221 up to Model Year 8
ENGINE 285.950 in MODEL 240
ENGINE 285.980 in MODEL 240

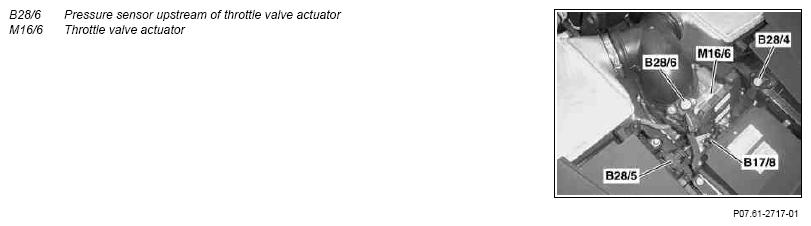

| Pressure sensor upstream of throttle valve actuator arrangement | on the throttle valve actuator. fed with charge air over a hose line. | |
| Pressure sensor upstream of throttle valve actuator task | Detect the boost pressure for the boost pressure control, so that the pressure ratio downstream/upstream of the compressor (B28/6to B28/5) can be calculated for the boost pressure control. | |
| Pressure sensor upstream of throttle valve actuator function | GF07.04-P-5048-01M |
