Fuel tank, location/design/function - GF47.10-P-3000MS
MODEL 216, 221 with ENGINE 275.953 up to Model Year 8
MODEL 216, 221 with ENGINE 275.982 up to Model Year 8

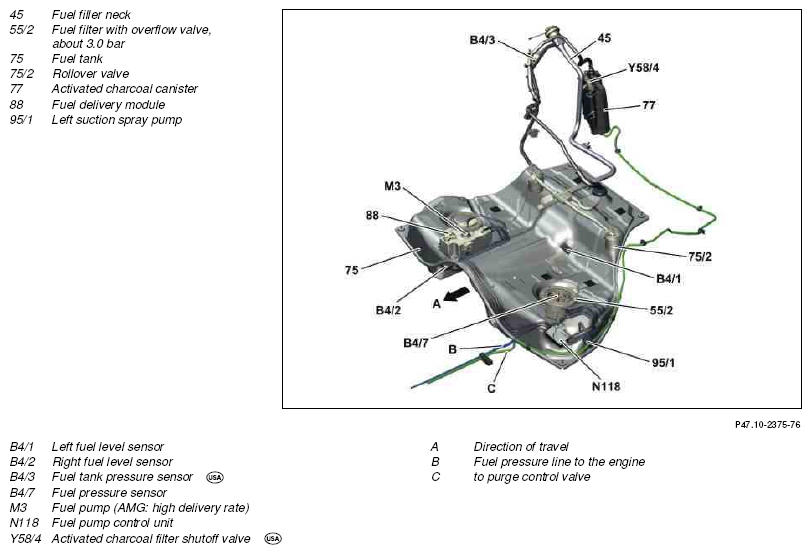

| Fuel tank position | The fuel tank is positioned at the frame floor ahead of the rear axle because of the through-loading facility from trunk into passenger compartment. | ||
| Fuel tank design | The fuel tank made out of sheet metal is split into two chambers due to the "U"-shaped recess. | ||
| Fuel tank function | GF47.10-P-3000-01MS |
