A/C Operating Unit Display Fails Intermittently (LI83.30-P-065348)
Publication date: 2016-12-02Reference number: LI83.30-P-065348
A/C OPERATING UNIT DISPLAY FAILS INTERMITTENTLY
TECHNICAL SERVICE BULLETIN
Reference Number(s): LI83.30-P-065348 Version 1, Date of Issue:
December 02, 2016
| MERCEDES-BENZ: | Model series 204; Model series 218 |
| DESIGN GROUP: | 83.30 Air conditioning |
COMPLAINT
A/C operating unit display intermittently shuts off/display remains dark.
The fault code A10D00 "The power supply is too low" may be logged in the fault memory of the air conditioning system.
The air conditioning can still be operated via the A/C operating unit.
CAUSE
The 12 V output on the A/C operating unit is not monitored and is switched off.
REMEDY
- Update software of air conditioning control unit.

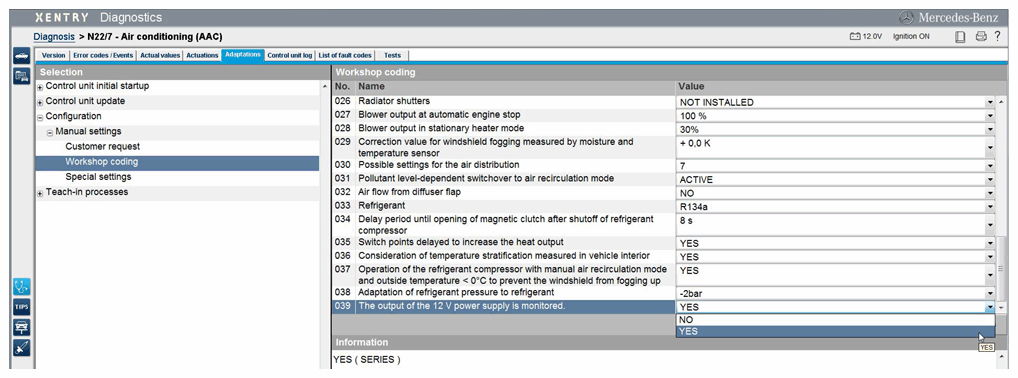

- Set workshop coding "The output of the 12 V power supply is monitored" in air conditioning control unit to "YES" (see ATTACHMENTS ).
- Erase fault memory.
Do not replace any components of the A/C as this will not remedy the problem!
ATTACHMENTS
ATTACHMENTS
| File | Description |
|---|---|
| Screenshot Xentry englisch.jpg | English |
CONTROL UNIT/FAULT CODE
CONTROL UNIT/FAULT CODE
| Control unit | Fault code | Fault text |
|---|---|---|
| N22/7 - Air conditioning (AAC) (HVAC_204) | A10D00 | The power supply is too low. _ |
OPERATION NUMBERS/DAMAGE CODES
OPERATION NUMBERS/DAMAGE CODES
| Op. no. | Operation text | Time | Damage code | Note |
|---|---|---|---|---|
| 54-0991 | PROGRAM AND CODE CONTROL UNIT (AFTER QUICK TEST) | 83405 F1 | ||
| 54-1011 | PERFORM QUICK TEST | 83405 F1 | Connect/disconnect Star Diagnosis Perform quick test/system diagnosis Print out data Erase fault memory |
|
| 54-0650 | 12V |
