Remove/install sidebag sensor - AR91.60-P-0710EW

MODEL 212, 218

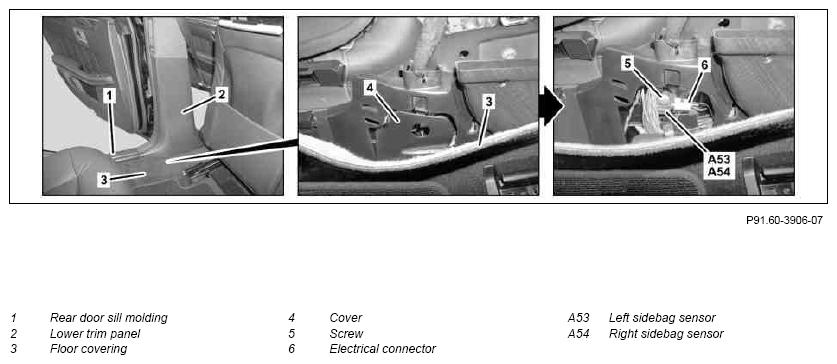

Fig 1: Identifying Sidebag Sensor Remove/Install Components - Shown On Model 212

G09978101

Courtesy of MERCEDES-BENZ USA

Shown on model 212

	Remove/install
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Adjust front seat to foremost position
2	Disconnect ground line of battery		AR54.10-P-0003EW
3.1	Remove rear door sill (1)	MODEL 212
3.1	Remove rear door sill (1)	MODEL 212	AR68.30-P-4100EW
3.2	Remove rear door sill (1)	Model 218
4	Remove lower trim (2) on B-pillar
5	Release floor covering (3) beneath the B-pillar until the cover (4) is accessible
6	Open cover (4) on cable duct
7	Remove bolt (5) from left sidebag sensor (A53) or right sidebag sensor (A54)	Screw, sidebag and window bag sensor to B-pillar	BA91.60-P-1010-01M
8	Remove left sidebag sensor (A53) or right sidebag sensor (A54) and disconnect electrical connector (6)	Ensure that left sidebag sensor (A53) or right sidebag sensor (A54) is seated correctly in longitudinal member.
9	Install in the reverse order

AIRBAG

Number	Designation		MODEL 212	MODEL 218
BA91.60-P-1010-01M	Screw, sidebag and window bag sensor to B-pillar	Nm	8	9
