Remove/install starter - AR15.30-P-7100CD

ENGINE 651 in MODEL 166, 172, 204, 207, 212 (except 212.098/298), 218, 221

MODIFICATION NOTES

15.10.12 Factual information and information for the circuit 50 electrical line, added. Operation step 8

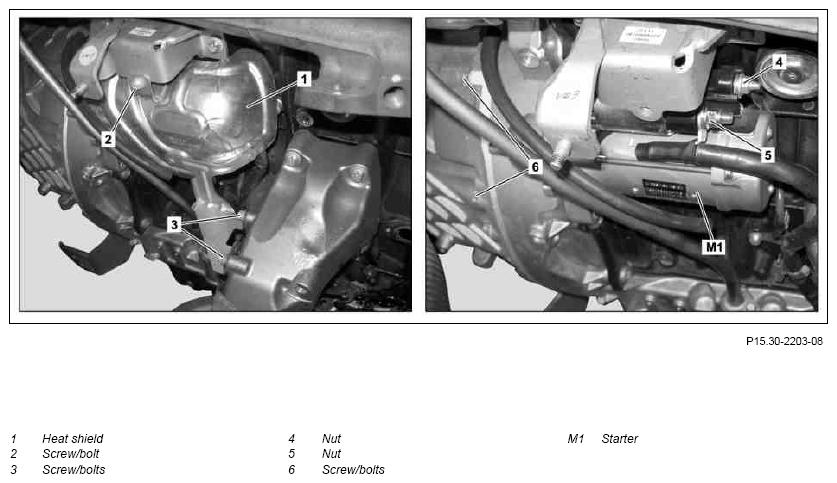

Fig 1: Identifying Starter Remove/Install Components
G09975077Courtesy of MERCEDES-BENZ USA

Shown on vehicle without code (B03) ECO start/stop function

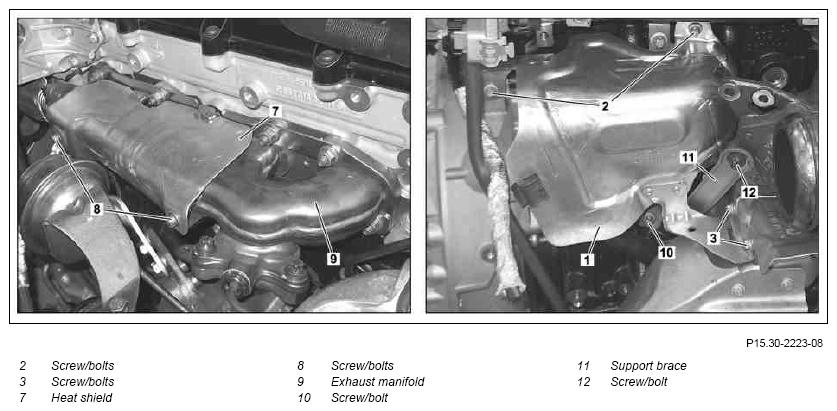

Fig 2: Identifying Starter Remove/Install Components - Shown On Vehicle Without Code (B03)
G09975078Courtesy of MERCEDES-BENZ USA

Shown on MODEL 166

Installation of lines shown on model 204

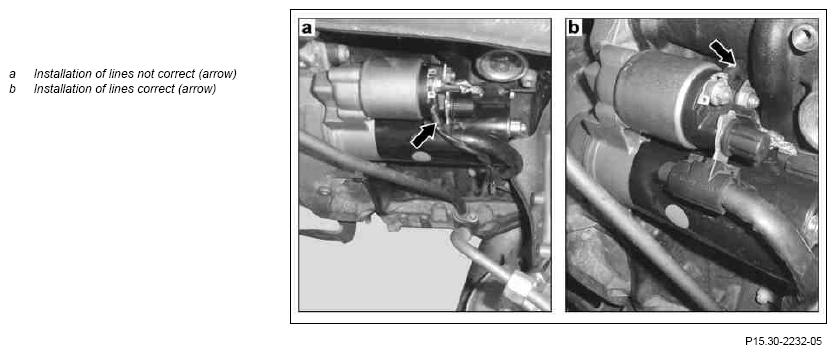

Fig 3: Identifying Starter Remove/Install Components - Shown On Model 166
G09975079Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
NOTES Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
1 Disconnect ground line at the on-board electrical system battery MODEL 221 with ENGINE 651 AR54.10-P-0003SX
MODEL 172 with ENGINE 651 AR54.10-P-0003W
MODEL 166 with ENGINE 651 AR54.10-P-0003GZ
MODEL 204 with ENGINE 651 AR54.10-P-0003CW
MODEL 207, 212 (except 212.098/298), 218 with ENGINE 651
NOTES
Insulate ground line of battery.
Unwanted contact of the disconnected ground line with the ground point of the battery can occur otherwise.
IMPORTANT Do not connect quiescent current retention unit.
AR54.10-P-0003EW
2 Remove lower engine compartment paneling MODEL 166 with ENGINE 651 AR61.30-P-1001GQ
MODEL 172 with ENGINE 651 AR94.30-P-5300W
MODEL 204 (except 204.9), 207, 212 (except 212.098/298), 218 with ENGINE 651 AR94.30-P-5300EW
MODEL 204.9 with ENGINE 651 AR61.20-P-1105CY
MODEL 221 with ENGINE 651 AR61.20-P-1105SX
3.1 Remove catalytic converter diesel particulate filter unit Vehicles with catalytic converter diesel particulate filter unit
ENGINE 651 in MODEL 221 AR49.10-P-5501SXI
ENGINE 651 in MODEL 166, 172, 204, 207, 212 (except 212.098/298), 218, 221 AR49.10-P-5501CD
ENGINE 651 in MODEL 166 AR49.10-P-5501GQ
3.2 Remove catalytic converter Vehicles with catalytic converter
ENGINE 651 in MODEL 204.9, 212.08/28, 212.09 (except 212.098), 212.29 (except 212.298) AR49.10-P-5500OMD
3.3 Remove diesel particulate filter Vehicle with diesel particulate filter
ENGINE 651 in MODEL 204, 212 with TRANSMISSION 722.9 AR14.40-P-1000OMD
4 Remove screws/bolts (8) MODEL 166 with ENGINE 651
TORQUE SPECIFICATION Bolt, shield to exhaust manifold *BA14.10-P-1002-01P
5 Remove heat shield (7) from turbocharger (9) MODEL 166 with ENGINE 651
6 Remove screw/bolts (2, 3), unfasten shield (1) on retaining clamp and take off TORQUE SPECIFICATION Bolt, heat shield to engine support *BA22.10-P-1003-02A
TORQUE SPECIFICATION Shield to starter *BA15.30-P-1004-01P
7 Detach contact protection, unscrew nut (5) and remove electrical line for circuit 30 from starter (M1) TORQUE SPECIFICATION Nut, connection for circuit 30 *BA15.30-P-1002-01P
8 Unscrew nut (4) and remove electrical line for circuit 50 from starter (M1) INSTALLATION NOTES
The circuit 50 electrical line (arrow, picture a) in Fig 3 must not be routed to the front on starter. The circuit 50 electrical line (arrow, picture b) must be laid between the starter and the crankcase. The connector for the circuit 50 electrical line on starter must point in the direction of the crankcase.
The circuit 50 electrical line (picture a) will chafe on the heat shield (1) otherwise.

TORQUE SPECIFICATION Nut, connection for circuit 50 *BA15.30-P-1003-01P
9 Remove rear support brace for turbocharger IMPORTANT Only for sequential turbo-charging.
TORQUE SPECIFICATION Bolt, rear/center turbocharger bracket to cylinder crankcase *BA09.40-P-1003-01P
TORQUE SPECIFICATION Bolt, rear/center turbocharger bracket to turbocharger *BA09.40-P-1002-01P
10 Remove screw/bolts (6) IMPORTANT When loosening upper bolt (6) a suitable extension should be led at and past the rear engine mount over the transmission to the upper bolt (6) in order to ease removal.
TORQUE SPECIFICATION Screw/bolt, starter to major assembly carrier/cylinder crankcase *BA15.30-P-1001-01P
11 Remove starter (M1) from below
INSPECT Check
12 Check pinion on the starter (M1) for damage and wear When reusing the starter (M1)
INSTALLATION IMPORTANT Replace starter (M1) in case of damage or wear.

13 Check flywheel ring gear on flywheel/drive plate for wear and damage When replacing the starter (M1)
  AR03.30-P-8001CD
IMPORTANT Replace flywheel/clutch plate in case of damage or wear.
14 Install in the reverse order
TURBOCHARGER

Number Designation MOTOR 651
BA09.40-P-1002-01P Bolt, rear/center turbocharger bracket to turbocharger Nm 20
TURBOCHARGER

Number Designation MOTOR 651
BA09.40-P-1003-01P Bolt, rear/center turbocharger bracket to cylinder crankcase Nm 20
EXHAUST MANIFOLD

Number Designation ENGINE 651
BA14.10-P-1002-01P Bolt, shield to exhaust manifold Nm 8
STARTER

Number Designation ENGINE 651
BA15.30-P-1001-01P Screw/bolt, starter to major assembly carrier/cylinder crankcase Nm 40
STARTER

Number Designation ENGINE 651
BA15.30-P-1002-01P Nut, connection for circuit 30 Nm 14
STARTER

Number Designation ENGINE 651
BA15.30-P-1003-01P Nut, connection for circuit 50 Nm 6
STARTER

Number Designation ENGINE 651
BA15.30-P-1004-01P Shield to starter Nm 9
ENGINE SUPPORT (ENGINE SIDE)

Number Designation ENGINE 651
BA22.10-P-1003-02A Bolt, heat shield to engine support Nm 9
