Function Complaints/Implausible Control Of Air Conditioning (LI83.30-P-060551)

Publication date: 2015-09-10
Reference number: LI83.30-P-060551

FUNCTION COMPLAINTS/IMPLAUSIBLE CONTROL OF AIR CONDITIONING

TECHNICAL SERVICE BULLETIN

Reference Number(s): LI83.30-P-060551 Version 3, Date of Issue: September 10, 2015

MERCEDES-BENZ:	Valid for model series W/X 166
DESIGN GROUP:	83.30 Air conditioning
REASON FOR CHANGE:	Validity adapted / attachments added

COMPLAINT

Heating stays on warm/hot even when set cold.
Vehicle heats up suddenly/constantly.
The air conditioning fails intermittently.

CAUSE

Several causes could come into consideration for this complaint:

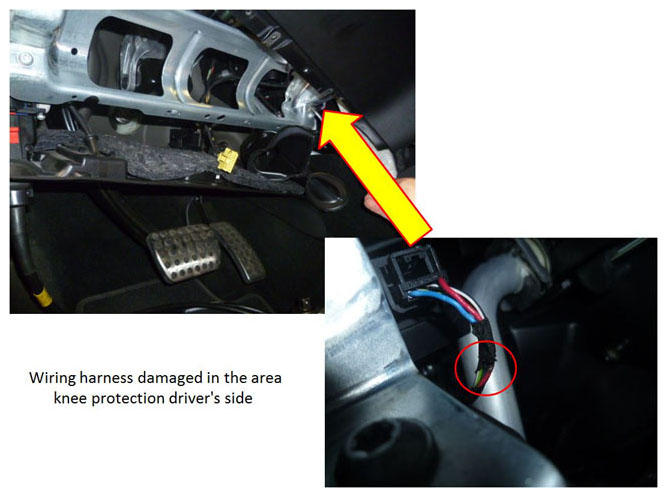

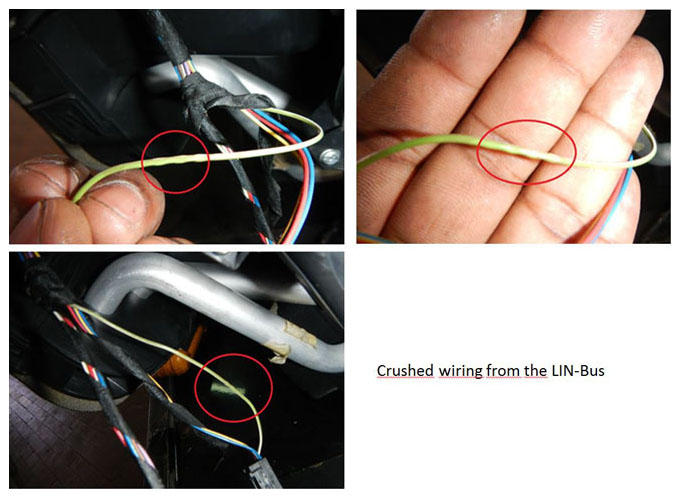

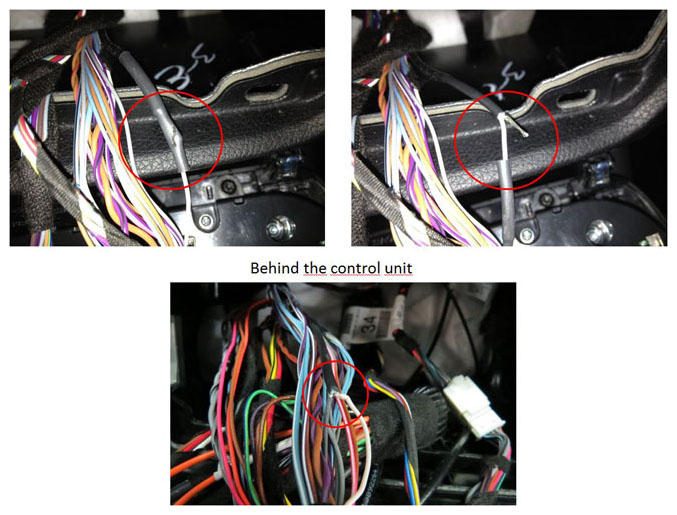

Chafing / damage in wiring harness of air conditioning.

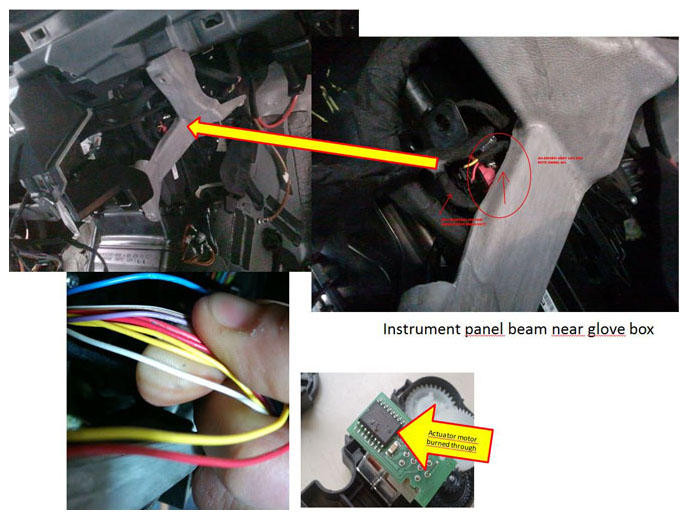

An internally malfunctioning actuator motor can cause sporadic failures in the LIN bus.

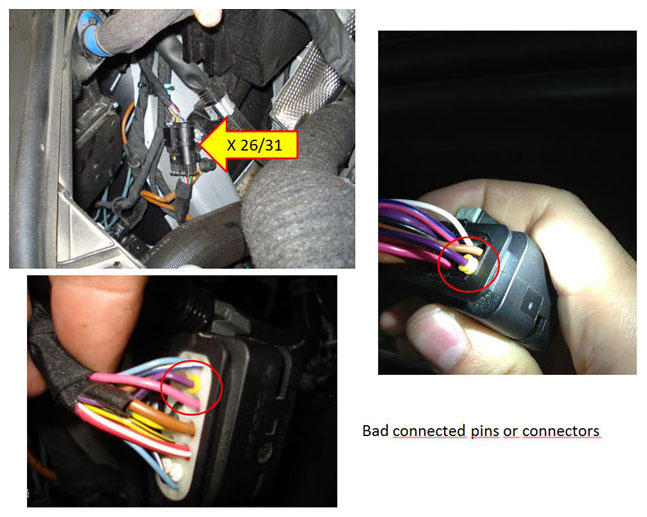

Incorrectly pinned lines in the connectors.

ATTACHMENTS

File	Description
Complaint Wiring	ENG 1
Complaint Wiring	ENG 2
Complaint Wiring	ENG 3
Complaint wiring	ENG 4
Complaint wiring	ENG 5

REMEDY

Clearly identify the fault and document it. Before repairing, take photos of the damaged area and create a PTSS informational case. Attach the pictures to the PTSS case. The pictures should clearly show the area where the damage is located. (See example photos in the attachment).

NOTE: Informational cases do not get replied to by MBUSA technical support.

Repair wiring harness to Mercedes-Benz specifications.

CONTROL UNIT/FAULT CODE

Control unit	Fault code	Fault text
N22/7 - Air conditioning (AAC) (HVAC166)	90FB87	The actuator motor for air flap "Right defroster outlet" has a malfunction. The message is missing.
N22/7 - Air conditioning (AAC) (HVAC166)	910387	The actuator motor for air flap "Right center vent" has a malfunction. The message is missing.
N22/7 - Air conditioning (AAC) (HVAC166)	91E387	The actuator motor for the air distribution flap in the rear passenger compartment has a malfunction. The message is missing.
N22/7 - Air conditioning (AAC) (HVAC166)	90FF87	The actuator motor for air flap "Left center vent" has a malfunction. The message is missing.
N22/7 - Air conditioning (AAC) (HVAC166)	905287	The actuator motor for the rear blend air flap has a malfunction. The message is missing.
N22/7 - Air conditioning (AAC) (HVAC166)	90F787	The actuator motor for air flap "Left defroster outlet" has a malfunction. The message is missing.
N22/7 - Air conditioning (AAC) (HVAC166)	D00887	LIN bus 1 has a malfunction. The message is missing.
N22/7 - Air conditioning (AAC) (HVAC166)	905887	The actuator motor for the fresh air/recirculated air flap has a malfunction. The message is missing.
N22/7 - Air conditioning (AAC) (HVAC166)	90EF87	The actuator motor for air flap "Left footwell vent" has a malfunction. The message is missing.
N22/7 - Air conditioning (AAC) (HVAC166)	90A287	The actuator motor for the left blend air flap has a malfunction. The message is missing.
N22/7 - Air conditioning (AAC) (HVAC166)	90A987	The actuator motor for the right blend air flap has a malfunction. The message is missing.
