Tire Pressure Monitor Reactivation
CAUTION:
The warning system can only operate in a reliable manner if correct tire pressures are set. If an incorrect tire inflation pressure is set, the system will monitor the pressure according to the incorrect value.
- Turn ignition switch to OFF position.
- Ensure inflation pressure of all 4 tires is as specified on tire placard.

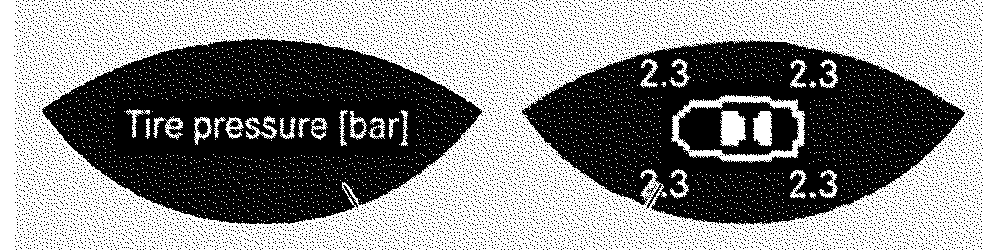

- Turn ignition switch to ON position. The standard display menu will appear in left and right multifunction displays on instrument cluster. See Fig 1.
- Using up or down arrow button (located on left side of multifunction steering wheel), select tire pressure monitor menu.
- Press reset button, located in lower center of instrument cluster.

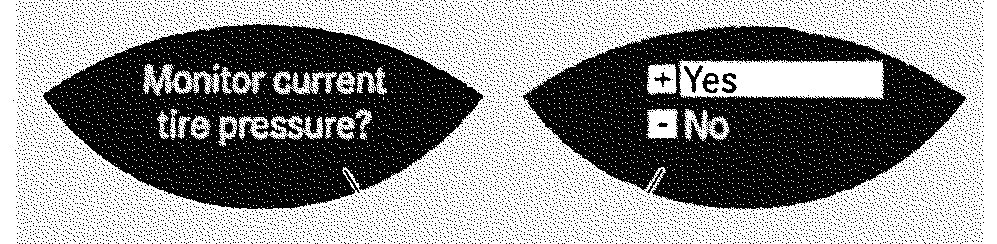

- The message "Monitor current tire pressure?" or "Restart tire pressure monitor?" will appear in the speedometer display field. See Fig 2. Press the "+" button (located on right side of multifunction steering wheel).NOTE: Using any other button for this operation will terminate activation process.

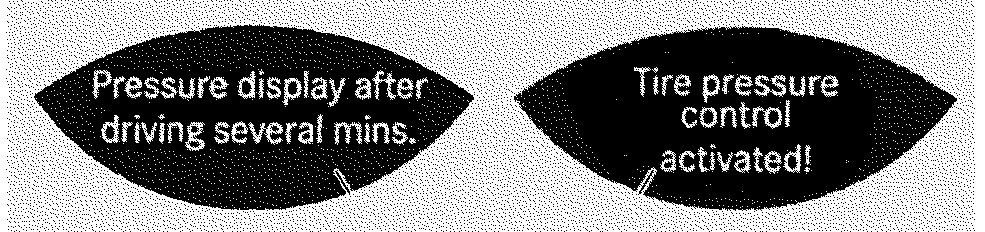

- The multifunction display will now display a confirmation screen. See Fig 3.NOTE: If either of the following messages appear, "Reactivate tire pressure monitor" or "Tire pressure Check tires!", restart reactivation procedures.
- Once engine has started, the pressure value will be displayed immediately without numerical values (---).NOTE: If activation is carried out when engine is running, this display will be shown after a time delay of about 30 seconds.
- Drive vehicle for about 10 minutes. Current tire pressure will be displayed, and activation process is complete. See Fig 1.
