Function Of Shift Lock Override - GF27.10-D-3023H
Transmission 722.6 in MODEL 906.111/113/131/133/135/153/155/211/213/231/233/235/253/255/611/613/631/633/635/637/653/655/657/711/713/731/733/735
If it is not possible to engage a drive position from selector lever position "P" due to a mechanical or electrical/electronic fault, the selector lever position "P" lock can be released using the shift lock override function.

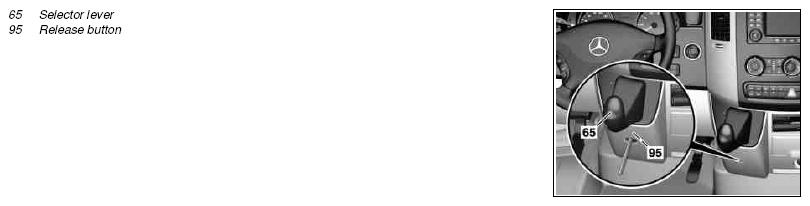

To do this, a cover under the selector lever must be removed and the release button under it pressed using a suitable tool. The selector lever position "P" lock is released via a bolt in the lock solenoid valve. The selector lever can be shifted out of selector lever position "P" when the release button is operated simultaneously.
| R/P-lock, component description | GF27.60-D-5161H |
| Park pawl component description | GF27.60-D-2010H |
