Overview of PRE-SAFE system components - GF91.40-P-9997FQ
MODEL 218

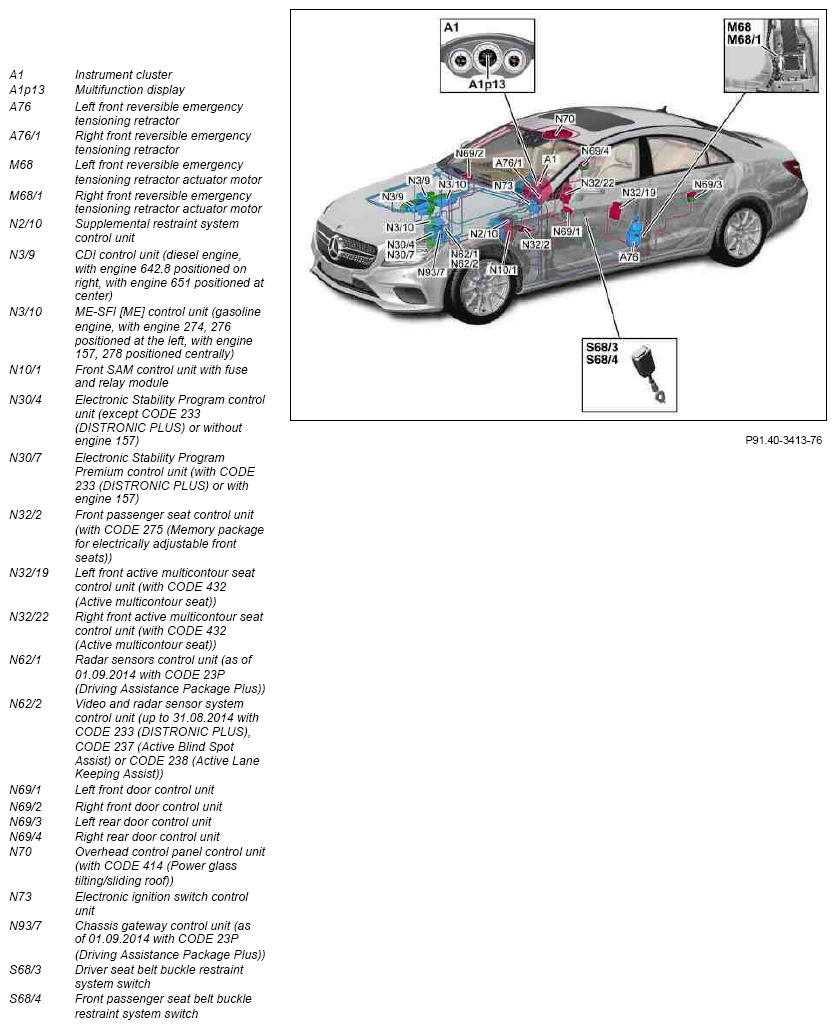

Shows model 218.3
| Component description for instrument cluster | A1 | GF54.30-P-6000FQ | |
| Component description for front reversible emergency tensioning retractors | A76, A76/1 | GF91.40-P-4020FQ | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080FQ | |
| Component description for CDI control unit | MODEL 218 with ENGINE 642.8 N3/9 |
GF07.16-P-6000OG | |
| MODEL 218 with ENGINE 651.9 N3/9 |
GF07.16-P-6000OM | ||
| Component description for ME-SFI (ME) control unit | MODEL 218 with ENGINE 274.9 N3/10 |
GF07.61-P-6000MRB | |
| MODEL 218 with ENGINE 276.8 as of model year 2015 N3/10 |
GF07.61-P-6000MMP | ||
| MODEL 218 with ENGINE 276.9 N3/10 |
GF07.61-P-6000MM | ||
| MODEL 218 with ENGINE 157.9 MODEL 218 with ENGINE 278.9 N3/10 |
GF07.61-P-6000MMA | ||
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070FQ | |
| Component description for Electronic Stability Program control unit | MODEL 218 up to model year 2014 N304, N307 |
GF42.45-P-5119FQ | |
| MODEL 218 as of model year 2014 N304, N307 |
GF42.45-P-5119FQA | ||
| Component description for front passenger seat control unit | MODEL 218 with CODE 275 (Electrically adjustable front seats memory package) N32/2 |
GF91.29-P-5241FQ | |
| Active multicontour seat control unit component description | MODEL 218 with CODE 432 (Active multicontour seat) N32/19, N32/22 |
GF91.25-P-5220FQ | |
| Component description for radar sensors control unit | MODEL 218 as of model year 2015 with CODE 23P (Driving Assistance package Plus) N62/1 |
GF30.30-P-3301FQM | |
| Component description for video and radar sensor system control unit | MODEL 218 up to model year 2015 with CODE 233 (DISTRONIC PLUS) MODEL 218 up to model year 2015 with CODE 237 (Active Blind Spot Assist) MODEL 218 up to model year 2015 with CODE 238 (Active lane keeping Assist) N62/2 |
GF30.30-P-3304FQ | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001FQ | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009FQ | |
| Component description for rear door control unit | N69/3, N69/4 | GF72.29-P-6021FQ | |
| Component description for overhead control panel control unit | MODEL 218 with CODE 414 (Power glass tilting/sliding roof) N70 |
GF82.20-P-5216FQ | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FQ | |
| Component description for chassis gateway control unit | MODEL 218 as of model year 2015 with CODE 23P (Driving Assistance package Plus) N93/7 |
GF54.21-P-1010FQ | |
| Table of contents for PRE-SAFE function description | GF91.40-P-0997FQ |
