Thermal Management, Function - GF07.10-P-1012OLF

ENGINE 651.9 as of 6/1/15 in MODEL 166 as of model year 2016

Function requirements for thermal management, general points

• Circuit 87M (engine management ON)
• Engine runs

Thermal management, general

The thermal management as controlled by the CDI control unit (N3/9) regulates the engine's coolant temperature, exhaust temperature and the fuel pressure. The following advantages arise from this:

• Rapid reaching of the optimal operating temperature
• Reduction of the exhaust emissions
• Fuel saving (up to about 4%)
• Improved heating comfort
• Component protection for engine high load

The controlling of the thermal management is dependent on the following sensors and signals:

• Engine oil temperature sensor (B1)
• Hot film MAF sensor (B25), engine load
• Intake air temperature sensor (B2/5b1)
• Boost pressure sensor (B5/1) and low-pressure turbocharger boost pressure sensor (B5/4), engine load
• Coolant temperature sensor (B11/4)
• Charge air temperature sensor (B17/8)
• Temperature sensor upstream of diesel particulate filter (B19/9) (with code 474 (Particulate filter))
• DPF differential pressure sensor (B28/8) (with code 474 (Particulate filter))
• Accelerator pedal sensor (B37), accelerator pedal actuation (how quickly and how far → vehicle type quiet or sporty)
• Fuel temperature sensor (B50)
• Crankshaft Hall sensor (B70), engine rpm
• Temperature sensor in CDI control unit
• SAM control unit (N10), outside temperature via the interior CAN (CAN B), electronic ignition lock control unit (N73) and chassis CAN 1 (CAN E1)
• Automatic air conditioning control and operating unit (N22/7), status of the A/C via the interior CAN, electronic ignition lock control unit and chassis CAN 1
• Electronic Stability Program control unit (N30/4), vehicle speed via chassis CAN 1
• Fully integrated transmission control unit (Y3/8n4), gear range via drive train CAN (CAN C)

Function sequence for thermal management

The thermal management is described in the following points:

• Function sequence for post-start phase
• Function sequence for heating the coolant thermostat
• Function sequence for maximum heating combustion
• Function sequence for fuel preheating system
• Function sequence for fuel tank protection
• Function sequence for fan control
• Function sequence for radiator shutters
• Function sequence for overheating protection

Function sequence for post-start phase

During the post-start phase, the engine can be warmed up more rapidly by interrupting piston cooling by shutting off the engine oil supply to the oil spray nozzles using the oil spray nozzle shutoff valve (Y131). Interruption of the coolant circulation can additionally take place by switching off the coolant pump with the aid of the coolant pump switchover valve (Y133). The coolant pump switchover valve is actuated in the process by an output stage switching to the ground connection in the CDI control unit and controls a bypass in the coolant pump using vacuum. The engine is warmed up quicker in the process and the exhaust emissions are reduced.

The coolant pump is switched off for a cold start for a maximum of 300 s if the following conditions are fulfilled:

• The limit values stored in the CDI control unit for the intake air and coolant temperature when the engine starts and the injected total fuel quantity when the engine starts have not yet been reached.
• No "heating" is requested by the automatic air conditioning control and operating unit.
• The engine speed or injection quantity has not exceeded its established limit value.

If the conditions for shutoff of the coolant pump are no longer fulfilled the maximum switching time of 300 s is reached and the CDI control unit ends actuation of the coolant pump switchover valve. The coolant pump switchover valve is ventilated over the ventilation connection and the bypass in the coolant pump is closed again. The coolant pump is therefore switched on and the coolant circulation is achieved again. If the coolant pump was activated once, it remains active in the entire ignition sequence.

At high engine oil temperatures, cut-in of the oil spray nozzles can be interrupted depending on the engine speed.

The oil spray nozzles are switched off in the post-start phase if all of the following conditions are met:

• Engine oil temperature > -5°C
• The max. shutoff time (depending on the engine performance, intake air and engine oil temperature for an engine start) is not yet reached
• The engine speed or injection quantity has not reached an established limit value

Function sequence for heating the coolant thermostat

Depending on the operating conditions (as a function of a characteristic map), the CDI control unit actuates the heating element in the coolant thermostat (R48) using a ground signal. The power supply is over "circuit 87" from the CDI control unit.

Through heating the two-disk thermostat in the coolant thermostat already opens at a low coolant temperature, which leads to lowering of the coolant temperature.

The opening cross-section of the two-disk thermostat is determined over the duty cycle of the electrical power and over the coolant temperature. The coolant thermostat heating element regulates the coolant temperature within the range from approx. 55°C to 106°C. The limp-home function ensures that the two-disk thermostat is completely opened above around 106°C, irrespective of actuation.

The two-disk thermostat can take the following positions:

• Short-circuit mode position; t < 55°C; coolant flow in engine only, flow through the passenger compartment heater is possible
• Mixed-fuel mode position; 55°C < t < 106°C; the coolant thermostat opens, radiator throughflow begins
• Radiator operation position; t > 106°C; the coolant thermostat is opened, full radiator throughflow

The following advantages result from regulating the coolant temperature of the engine:

• Operating temperature is reached faster
• Emissions reduced
• Improved heating comfort
• Component protection for engine high load

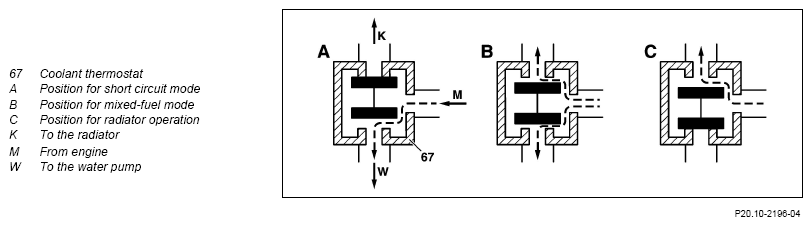

Schematic diagram

Courtesy of MERCEDES-BENZ USA

Function sequence for maximum heating combustion

With the maximum heating combustion more heat is introduced into the coolant by a new combustion strategy on the engine side.

The following function conditions must be met simultaneously:

• Accelerator pedal position reported by the accelerator pedal sensor is below 80% (partial throttle)
• No regeneration mode for the diesel particulate filter (DPF) (with code 474 (Particulate filter))
• At least 90% heat output is requested by the automatic air conditioning control and operating unit
• Outside temperature under 7°C (renewed cut-in takes place at 4°C by the SAM control unit)
• Coolant temperature from coolant temperature sensor is below 82°C (renewed cut-in takes place at 74°C)

During maximum heating combustion, a higher exhaust temperature is generated by means of 2 preinjections by the fuel injectors (Y76), for which a significantly greater fuel quantity is used, followed by a late main injection. This process, in combination with exhaust gas recirculation (EGR), causes more heat to be transferred to the coolant inside the engine, allowing for more rapid attainment of the optimum operating temperature and improved warming of the vehicle interior. To do this the exhaust gas recirculation actuator (Y27/9) is actuated by the CDI control unit.

The CDI control unit regulates, stabilizes and increases the idle speed depending on operating conditions and engine loads if the accelerator pedal is not actuated.

Function sequence for fuel preheating system

Fuel preheating is achieved using the following regulation strategies:

• Pressure regulating valve (Y74) regulation
• Quantity control valve (Y94) regulation

Pressure regulating valve regulation

The fuel pressure is regulated by the pressure regulating valve during the starting procedure and for fuel heating. The quantity control valve is opened in a controlled manner.

Pressure regulating valve regulation takes place under one of the following conditions:

• Up to 30 s after the engine starts in idle
• Up to a fuel temperature of 20°C

Pressure regulating valve regulation causes the cold fuel to be heated rapidly by the fuel being forced at high pressure through a narrow gap in the pressure regulating valve.

Quantity control valve regulation

Fuel pressure regulation over the quantity control valve takes place from 30 s following engine start and from a fuel temperature of 20°C.

Function sequence for fuel tank protection

Increasing the fuel pressure via the high-pressure pump from 4.5 bar up to 1800 bar also increases the temperature of the fuel.

To protect the fuel tank from overheating, the CDI control unit reads in the fuel temperature sensor and thus monitors the temperature of the fuel delivered to the high-pressure pump.

If the temperature of the fuel delivered to the high-pressure pump rises above 90°C, the CDI control unit reduces the injection quantity and the fuel pressure using the pressure regulating valve. This causes less fuel to be compressed.

The CDI control unit causes the excess fuel to return to the fuel tank via the quantity control valve. When the temperature of the fuel delivered to the high-pressure pump drops below 90°C, the container protection function is deactivated by the CDI control unit.

Function sequence for fan control

The CDI control unit actuates the fan motor (M4/7). The nominal fan speed is specified via a pulse width modulated signal by the CDI control unit.

The duty cycle of the pulse width modulated signal is 10 to 90%.

Here for example the following mean.:

• 10% fan motor off "OFF"
• 20% fan motor "ON", minimum rpm
• 90% fan motor "ON", maximum rpm

A fault in the fan motor is sent to the CDI control unit via a PWM signal. In the case of a fault in the signal line (loss of frequency) by the CDI control unit the fan motor switches itself to the maximum rpm (fan emergency mode).

The automatic air conditioning control and operating unit sends the air conditioning status via the interior CAN and chassis CAN 1 to the CDI control unit including a fan request. If the CDI control unit does not receive a valid fan request from the AAC control and operating unit, the fan motor is actuated at the maximum rpm.

Delayed fan switch off

The fan motor runs on for up to 5 min for "ignition OFF" if a thermal input integral calculated based on the coolant temperature, vehicle speed and outside temperature (averaged over the last 6 min) has exceeded a prescribed threshold value.

The duty cycle of the pulse width modulated signal for delayed fan switch off is a maximum of 40%. If the battery voltage drops down a lot, the delayed fan switch off is suppressed.

The delayed fan switch off is not broken off by "ignition ON". When starting the engine in delayed fan switch off the fan regulation for normal operation is suppressed until the delayed fan switch off is completed.

Function sequence for radiator shutters

The radiator shutters is closed in order to lower the fuel consumption (thorough having a lower aerodynamic drag). This also causes reduced engine compartment cooling off and a dampening of engine external noise emissions to the outside. The radiator shutters actuator (Y84) (except code 550 (Trailer hitch)) is actuated by the CDI control unit after the engine start by means of a ground signal. In this way the vacuum in the vacuum unit is built up and the radiator shutters closed by means of a linkage. Upon reaching a coolant temperature of 106°C the radiator shutters is opened and closed again at 94°C.

Further opening conditions are:

• Request for delayed fan switch off
• Request for basic ventilation of the A/C
• Charge air temperature above the threshold value
• Request to lower the coolant temperature for component protection

Function sequence for overheating protection

The overheating protection protects against engine damage if there is a thermal overload. At a coolant temperature above 106°C the injection quantity is reduced based on the characteristics maps stored in the CDI control unit. Reduction occurs depending on the coolant temperature and oil temperature.

To do this the CDI control unit reads in signals from the coolant temperature sensor, the engine oil temperature sensor and the temperature sensor upstream of ATL (B19/11) (turbocharger protection). After evaluating the input signals, the CDI control unit regulates the fuel pressure in the rail via the quantity control valve and the pressure regulating valve and the injection period by actuating the fuel injectors.

If engine oil or coolant temperature is too high, a warning message is shown in the multifunction display (A1p13) on the instrument cluster (A1). To do this the CDI control unit sends an appropriate signal via the chassis CAN 1, the electronic ignition lock control unit and the chassis CAN 2 (CAN E2) to the IC.
