Remove/Install Starter - AR15.30-P-7100MNB

Engine 178 In Model 190

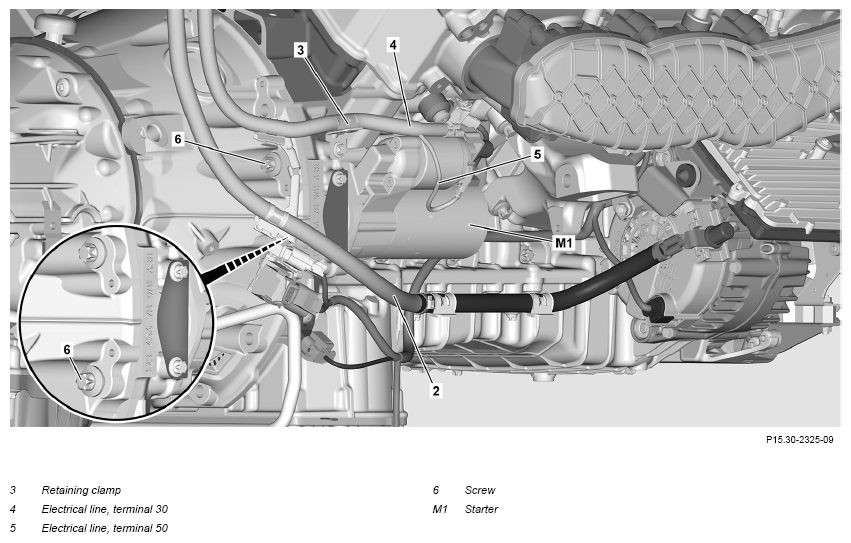

Fig 1: Starter Components Location - Engine 178 In Model 190
G16681601DANGERWARNINGCAUTIONREMOVINGINSTALLINGTORQUE SPECIFICATIONTORQUE SPECIFICATIONTORQUE SPECIFICATIONTORQUE SPECIFICATIONIMPORTANTCourtesy of MERCEDES-BENZ USA
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
WARNING Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.		 AS00.00-Z-0017-01A
Notice  Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
Notice  Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
Notice  Notes on self-locking nuts and bolts   AH00.00-P-0001-01KOA
REMOVINGINSTALLING Remove/install
1 Clamp off ground line of on-board electrical system battery (G1).   AR54.10-P-0003RG
Notice  Notes on battery   AH54.10-P-0001-01A
2 Remove bottom Engine compartment lining. Engine 178 in model 190.381 AR61.20-P-1105RGB
    Engine 178 in model 190 (except 190.381) AR61.20-P-1105RG
3 Remove the front-right underfloor paneling. Engine 178 in model 190.381 AR61.30-P-1001RG
4 Remove terminal 50 electric line (5). TORQUE SPECIFICATION Nut, connection for terminal designation 50 *BA15.30-P-1003-01T
5 Remove contact protection of terminal 30 electric line (4).
6 Remove electric line circuit 30 (4) from starter (M1). TORQUE SPECIFICATION Nut, connection for terminal designation 30 *BA15.30-P-1004-01T
7 Unclip electric line, terminal 30 (4) at retaining clamp (3).
8 Remove heat shield from transmission. Engine 178 in model 190.381
    TORQUE SPECIFICATION M6x1 *BA00.10-P-1002-03A
9 Remove screws (6). TORQUE SPECIFICATION Screw/nut, starter to crankcase and transmission *BA15.30-P-1001-01T
10 Remove starter (M1) downward.
11 Check ring gear on drive plate for wear and damage. IMPORTANT Rotate Engine at center Bolt, crankshaft in the direction of Engine rotation.
    If there is a problem,
↓
Replace drive plate.		 AR03.30-P-8001MNA
12 Install in the reverse order.
METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 142

Number Designation 8.8 10.9
BA00.10-P-1002-03A M6x1 Nm 8 12
STARTER

Number Designation Engine 178
BA15.30-P-1001-01T Screw/nut, starter to crankcase and transmission Nm 39
STARTER

Number Designation Engine 178
BA15.30-P-1003-01T Nut, connection for terminal designation 50 Nm 9
STARTER

Number Designation Engine 178
BA15.30-P-1004-01T Nut, connection for terminal designation 30 Nm 16
