Wiring Diagram For Active Brake Assist Controller Unit - PE30.30-S-2108-97VKA
Model 447 With Code BA3 (Active Brake Assist System) With Code XM7 (MOPF II) B92
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 23L |

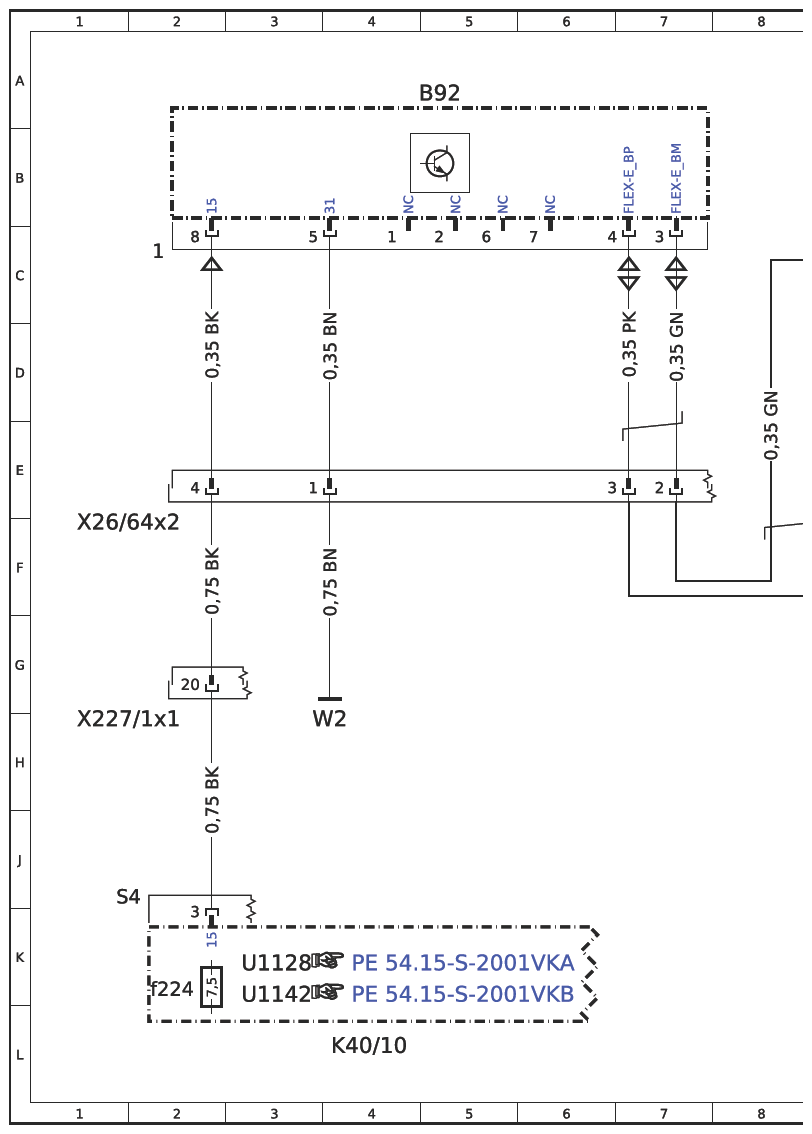

| B92 | Active Brake Assist controller unit | 5A |
| Code CA4 | AIRMATIC | 10D |
| Code CA4 | AIRMATIC | 14D |
| Flex E | Chassis FlexRay | 11K |
| Flex E | Chassis FlexRay | 16K |
| K40/10 | Engine compartment fuse and relay module | 4L |
| K40/10f224 | Fuse 224 | 2K |
| N51/3 | AIRMATIC control unit | 16L |

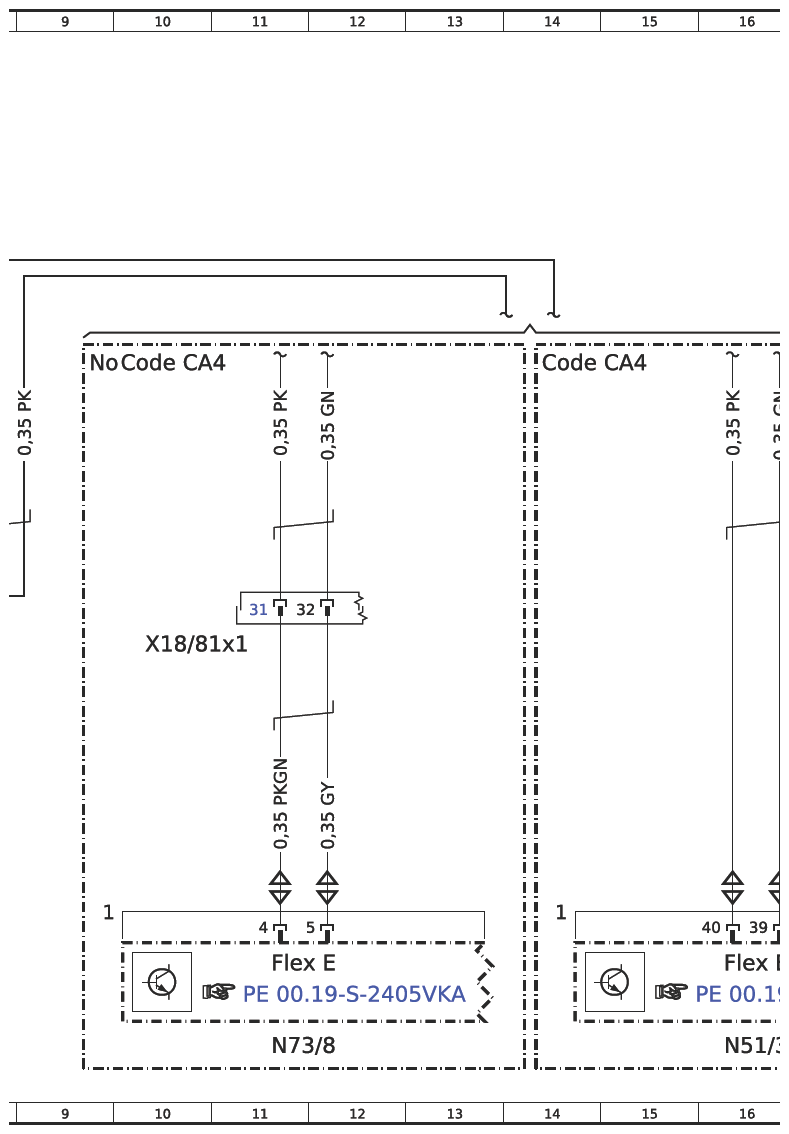

| N73/8 | Electronic ignition lock (EZS) control unit | 11L |
| U1128 | Valid for combustion engine | 3K |
| U1142 | Valid for electric vehicle | 3K |
| W2 | Right front lamp unit ground point | 4H |
| X18/81x1 | Left cockpit/main wiring harness electrical connector 1 | 10G |
| X227/1x1 | Main wiring harness/fuse and relay module electrical connector 1 | 2H |
| X26/64x2 | Front bumper electrical connector 2 | 2F |
