Remove/Install Regulator For Alternator - AR15.40-P-5760LFA

Engine 276.8 in model 217, 222

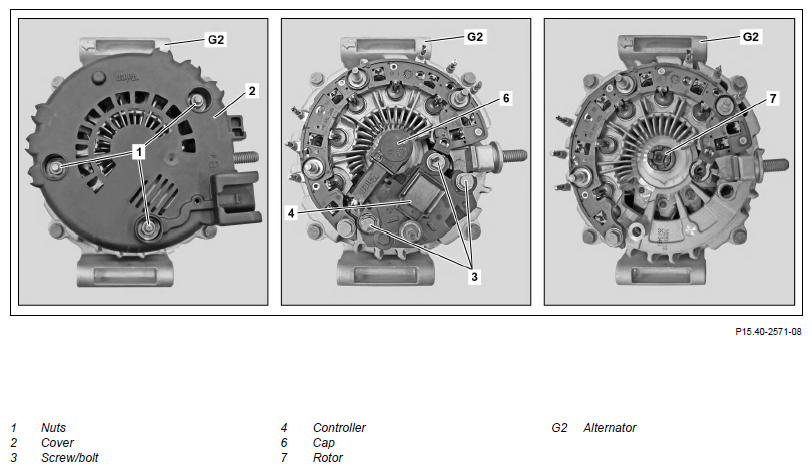

Fig 1: Regulator For Alternator Components Location - Engine 276.8 In Model 222

Courtesy of MERCEDES-BENZ USA

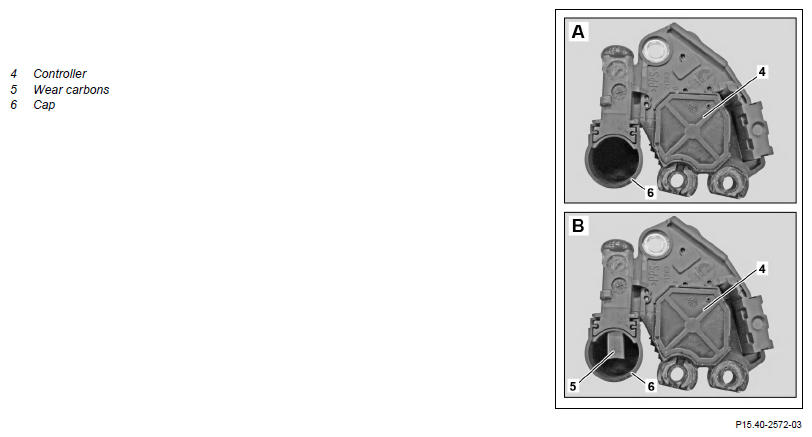

Shown: control with locked carbon brushes (A) and with extended carbon brushes (B)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove alternator (G2)		AR15.40-P-5032LFA
2	Unscrew nuts (1) and remove cover (2)	Bolt/nut, cover to alternator	*BA15.40-P-1008-01F
3	Unscrew screws/bolts (3) and remove control (4)	:  The carbon brushes (5) of the new control (4) are locked by means of the protective cap (6) upon delivery. After assembly of the control (4), the carbon brushes (5) must be audibly applied to the rotor (7) of the alternator (G2) by pressing on the protective cap (6).
		Bolt, regulator to alternator	*BA15.40-P-1005-01F
4	Install in the reverse order
