Service Campaign 2024110001 - Update Engine Control Unit Software (2024110001)

SERVICE CAMPAIGN 2024110001 - UPDATE ENGINE CONTROL UNIT SOFTWARE

SERVICE CAMPAIGN BULLETIN

SERVICE INFORMATION

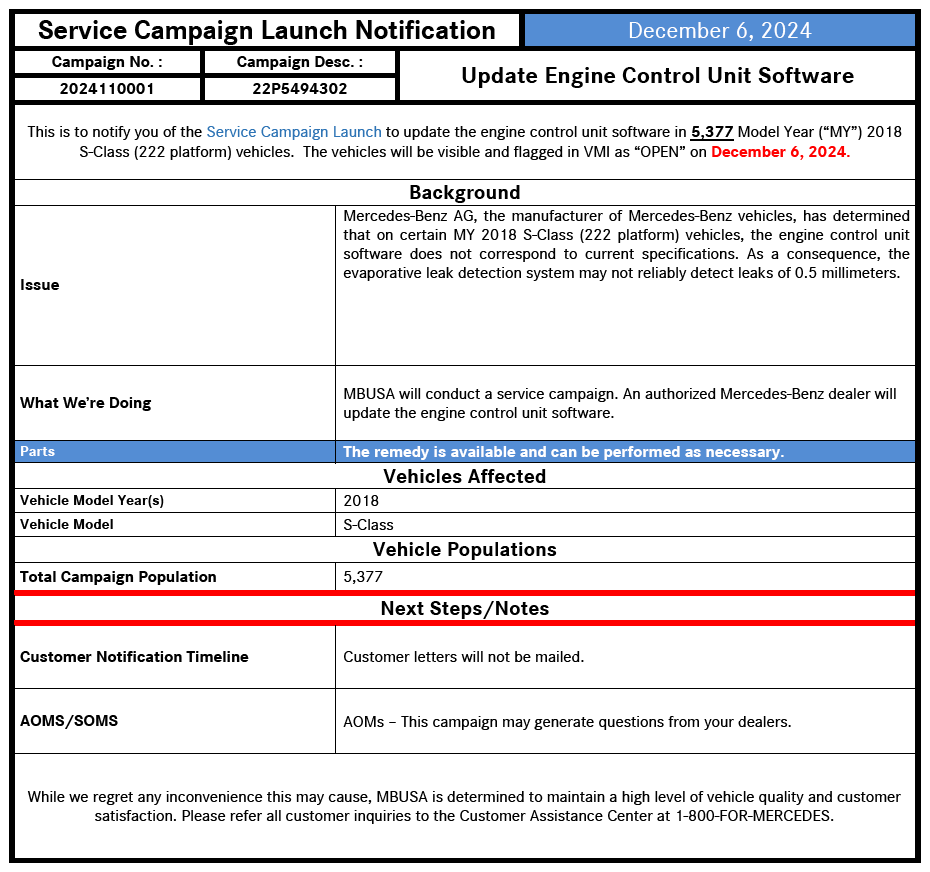

IMPORTANT SERVICE CAMPAIGN LAUNCH

Please note that all customer inquiries should be directed to the Customer Assistance Center at 1-800-FORMERCEDES (1-800-367-6372).

Sincerely,

Gregory Gunther

Senior Manager, Vehicle Compliance & Analysis

Campaign No. 2024110001, December 2024

TO: ALL MERCEDES-BENZ CENTERS

SUBJECT

Model S-Class (222 platform)

Model Year 2018

Update Engine Control Unit Software

Mercedes-Benz AG, the manufacturer of Mercedes-Benz vehicles, has determined that on certain MY 2018 S-Class (222 platform) vehicles, the engine control unit software does not correspond to current specifications. As a consequence, the evaporative leak detection system may not reliably detect leaks of 0.5 millimeters. An authorized Mercedes-Benz dealer will update the engine control unit software.

Prior to performing this Campaign:

• VMI must be checked before performing campaigns to verify that the campaign is required on a specific vehicle. Always check for any other open campaigns and perform accordingly.
• Please review the entire Campaign bulletin and follow the repair procedure exactly as described.

• Always use the latest  XENTRY Diagnosis software release with all available add-ons.
• Follow the operation steps exactly as described in XENTRY Diagnosis.
• Use a charger to ensure sufficient power supply to the vehicle's on-board electrical system battery  (greater than 12.5 V).
• If XENTRY Diagnosis is already connected to the vehicle, start with Work Procedure Step   2 .

If two or more software updates or SCN codings are performed during a single workshop visit, operation items 02-4762 and 02-5058  may be invoiced only on one of the workshop orders.

WORK PROCEDURE

1. Connect XENTRY Diagnosis.
2. Update Engine Electronics Control Unit  software.

   To do so, select menu item "Quick test - View → N3/10 - Motor electronics 'MED177V6LA' for combustion engine 'M276 Turbocharger' (ME)  → Adaptations → Control units update → Updating of the control unit software".

   Then follow the user guidance in XENTRY Diagnosis.

3. Disconnect XENTRY Diagnosis.

WARRANTY INFORMATION

Damage Code	Operation Number	Description	Labor Time (hrs.)
54 943 02	02-9334(2)	Update N3/10 - Motor Electronics (ME)  control unit software (with XENTRY Diagnosis connected)	0.1
	02-4762(1)	Connect/disconnect diagnosis system (XENTRY Diagnosis)	0.1
	02-5058(1)	Connect/disconnect starter battery charger (with XENTRY Diagnosis connected)	0.1
(1) Invoice operation item only once for each workshop order! (2) Please enter the code and accounting number manually in the workshop order as per the work instructions.
