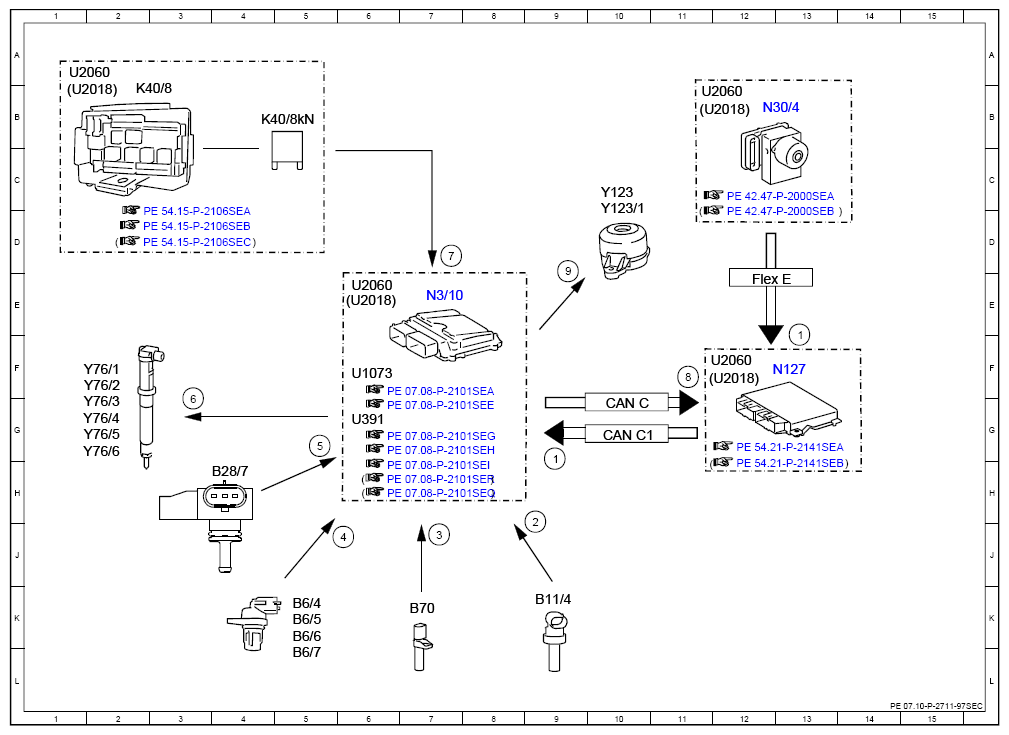

Electrical Function Schematic For Smooth Running Control - PE07.10-P-2711-97SEC
Engine 276.8 in model 217, 222
Engine 276.9 in model 222
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Wheel speed, signal | 9H |
| 1 | Wheel speed, signal | 13F |
| 2 | Coolant temperature sensor, signal | 9J |
| 3 | Engine speed, signal | 7J |
| 4 | Camshaft Hall sensor, signal | 6J |
| 5 | Engine load, signal | 5G |
| 6 | Fuel injectors, actuation | 3G |
| 7 | Circuit 87, status | 7D |
| 8 | Engine running, signal | 11F |
| 9 | Switchable engine mount, actuation | 9E |
| B11/4 | Coolant temperature sensor | 9K |
| B28/7 | Pressure sensor downstream of throttle valve | 4H |
| B6/4 | Left intake camshaft Hall sensor | 5K |
| B6/5 | Right intake camshaft Hall sensor | 5K |
| B6/6 | Left exhaust camshaft Hall sensor | 5K |
| B6/7 | Right exhaust camshaft Hall sensor | 5L |
| B70 | Crankshaft Hall sensor | 7K |
| CAN C | Engine CAN | 10G |
| CAN C1 | Drive train CAN | 10G |
| Flex E | Chassis FlexRay | 12E |
| K40/8 | Engine fuse and relay module | 2B |
| K40/8kN | Circuit 87M relay | 5B |
| N127 | Drivetrain control unit | 13F |
| N3/10 | ME-SFI [ME] control unit | 7E |
| N30/4 | Electronic Stability Program control unit | 12B |
| U1073 | Valid for gasoline engine 276.9 | 6F |
| U2018 | Valid as of model year 2018 | 6E |
| U2018 | Valid as of model year 2018 | 1B |
| U2018 | Valid as of model year 2018 | 11B |
| U2018 | Valid as of model year 2018 | 11F |
| U2060 | Valid up to model year 2018 | 6E |
| U2060 | Valid up to model year 2018 | 1A |
| U2060 | Valid up to model year 2018 | 11B |
| U2060 | Valid up to model year 2018 | 11F |
| U391 | Valid for gasoline engine 276.8 | 6G |
| Y123 | Left switchable engine mount | 10C |
| Y123/1 | Right switchable engine mount | 10D |
| Y76/1 | Cylinder 1 fuel injector | 1F |
| Y76/2 | Cylinder 2 fuel injector | 1F |
| Y76/3 | Cylinder 3 fuel injector | 1G |
| Y76/4 | Cylinder 4 fuel injector | 1G |
| Y76/5 | Cylinder 5 fuel injector | 1G |
| Y76/6 | Cylinder 6 fuel injector | 1G |
