Service Campaign 2024020005 - Perform SCN Coding In DRVU Control Unit (P-SC-2024020005)

SERVICE CAMPAIGN 2024020005 - PERFORM SCN CODING IN DRVU CONTROL UNIT

SERVICE CAMPAIGN BULLETIN

SERVICE INFORMATION

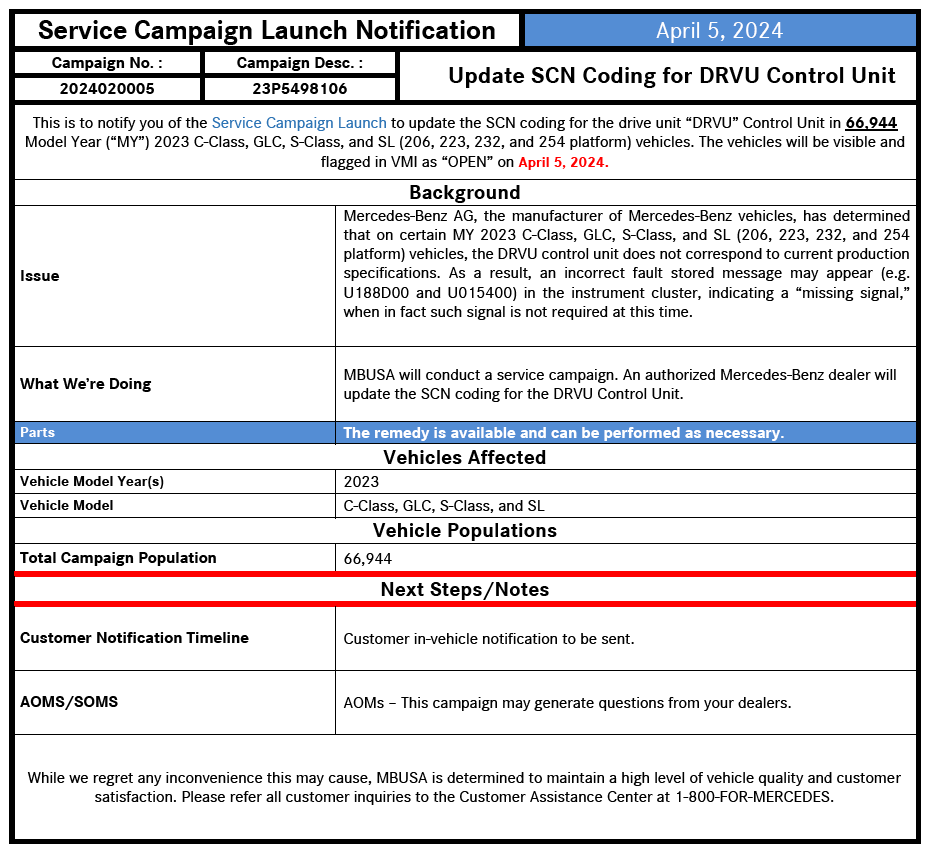

IMPORTANT SERVICE CAMPAIGN LAUNCH

Please note that all customer inquiries should be directed to the Customer Assistance Center at 1-800-FORMERCEDES

(1-800-367-6372).

Sincerely,

Gregory Gunther

Senior Manager, Vehicle Compliance & Analysis

April 2024

TO: ALL MERCEDES-BENZ CENTERS

SUBJECT

Model C-Class, GLC, S-Class, and SL (206, 223, 232, and 254 platform)

Model Year 2023

Mercedes-Benz AG, the manufacturer of Mercedes-Benz vehicles, has determined that on certain MY 2023 C-Class, GLC, S-Class, and SL (206, 223, 232, and 254 platform) vehicles, the DRVU control unit does not correspond to current production specifications. As a result, an incorrect fault stored message may appear (e.g. U188D00 and U015400) in the instrument cluster, indicating a "missing signal," when in fact such signal is not required at this time. An authorized Mercedes-Benz dealer will update the SCN coding for the DRVU Control Unit.

Prior to performing this Campaign:

• VMI must be checked before performing campaigns to verify that the campaign is required on a specific vehicle. Always check for any other open campaigns and perform accordingly.
• Please review the entire Campaign bulletin and follow the repair procedure exactly as described.

Approximately 66,944 vehicles are affected.

Order No. P-SC-2024020005

• Always use the latest XENTRY Diagnosis software release with all available add-ons.
• Follow the operation steps exactly as described in XENTRY Diagnosis.
• Use a charger to ensure sufficient power supply to the vehicle's on-board electrical system battery (greater than 12.5 V).
• If XENTRY Diagnosis is already connected to the vehicle, start with Work Procedure Step  2.

  If two or more software updates or SCN codings are performed during a single workshop visit, operation items 02-4762 and 02-5058 may be invoiced only on one of the workshop orders.

WORK PROCEDURE

1. Connect XENTRY Diagnosis.
2. Perform SCN coding in DRVU  control unit.

   To do this, select menu item "Quick test view → N145, N145/1 or N4 (DRVU)  → Adaptations → Control unit update → Update of SCN coding".

   Then follow the user guidance in XENTRY Diagnosis.

3. Perform teach-in process for the "rear wing"  component part.

   Only for model 232.

   To do this, select menu item "Quick test view → N145 Transmission mode Control Unit (DRVU)  → Adaptations → Teach-in processes → Teach-in process for "rear wing" component part".

   Then follow the user guidance in XENTRY Diagnosis.

4. Disconnect XENTRY Diagnosis

WARRANTY INFORMATION

Damage Code	Operation Number	Description	Labor Time (hrs.)
54 981 06	02-9446	Perform SCN coding in DRVU  control unit (with XENTRY Diagnosis connected)	0.1
	12-2105 (1)	Perform teach-in process for the "rear wing"  component part Only for model 232  (with XENTRY Diagnosis connected)	0.1
	02-4762 (1)	Connect/disconnect diagnostic system (XENTRY Diagnosis)	0.1
	02-5058 (1)	Connect/disconnect starter battery charger (with XENTRY Diagnosis connected)	0.1
(1) Invoice operation items only on one of the workshop orders, if two or more software updates or SCN codings are performed during a single workshop visit.
