Fig. 44 Calib. Code 2-12T-R04 Federal
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

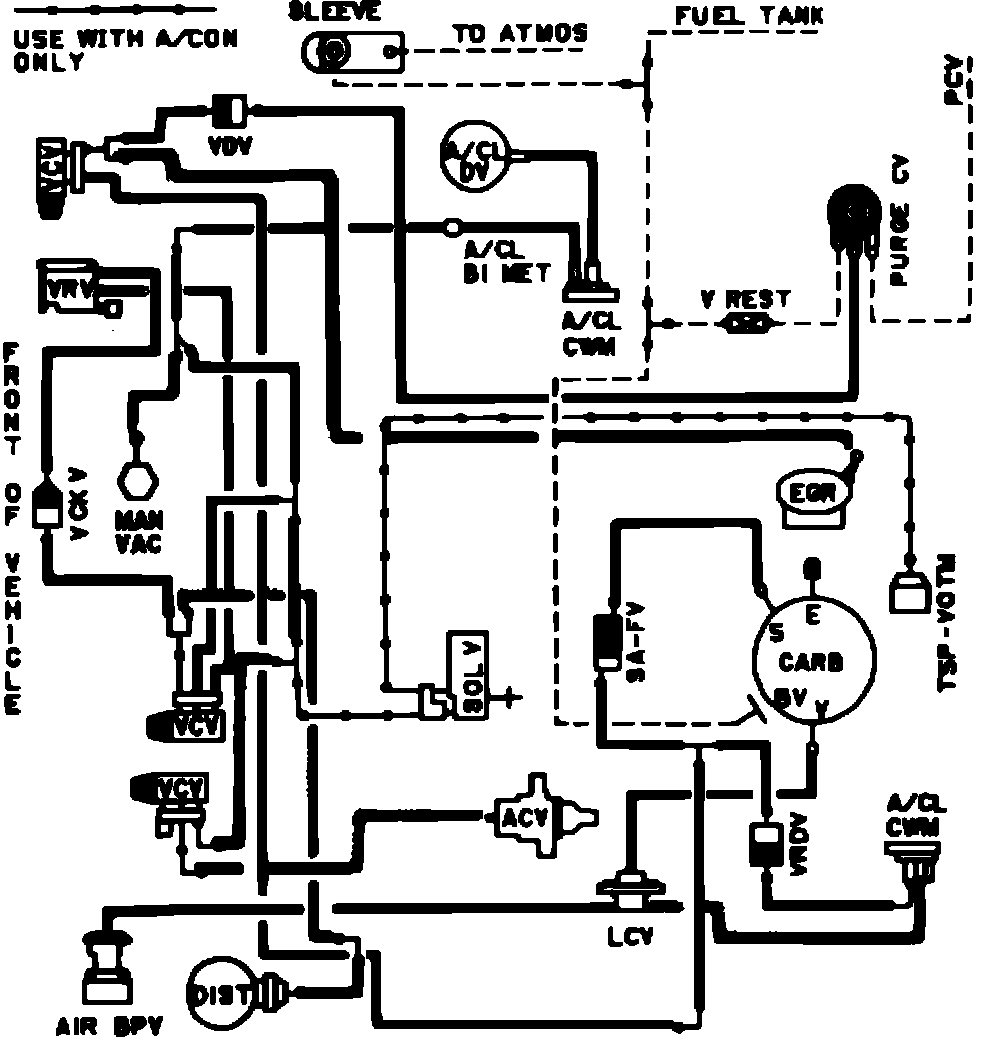

Fig. 44 Calib. Code 2-12T-R04 Federal
Vacuum hose routing:
