Connecting Rod Bearing

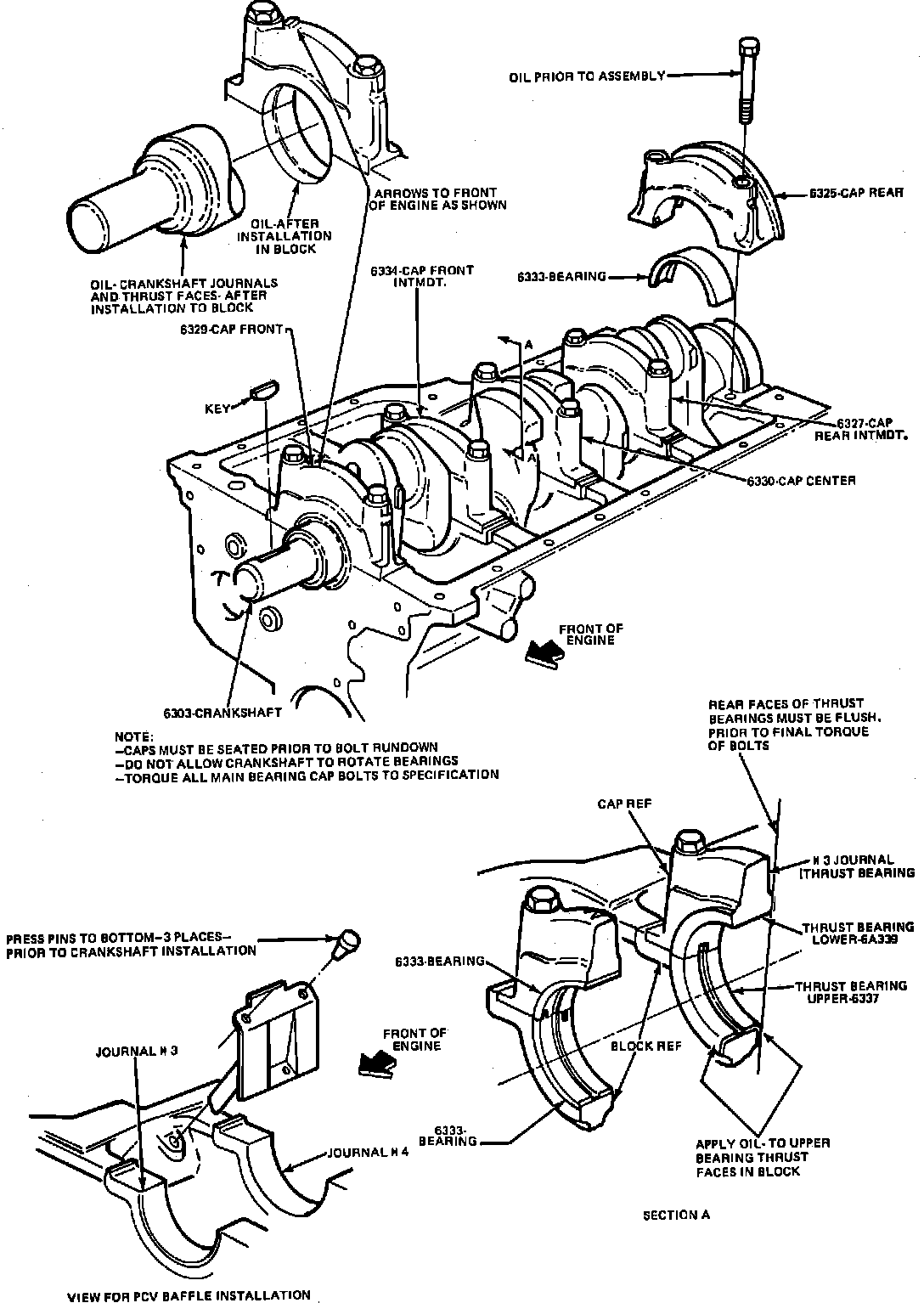

Fig. 13 Crankshaft & Main Bearing Installation:

Undersize main bearings are available in .002 inch, .020 inch, .030 inch and .040 inch undersizes. Undersize rod bearings are available in undersizes of .002 inch, .010 inch, .020 inch, .030 inch and .040 inch. The crankshaft and main bearings are installed with arrows on main bearing caps facing front of engine, Fig. 12. Install PCV baffle between bearing journals No. 3 and 4.
