Radiator Cooling Fan Control Module

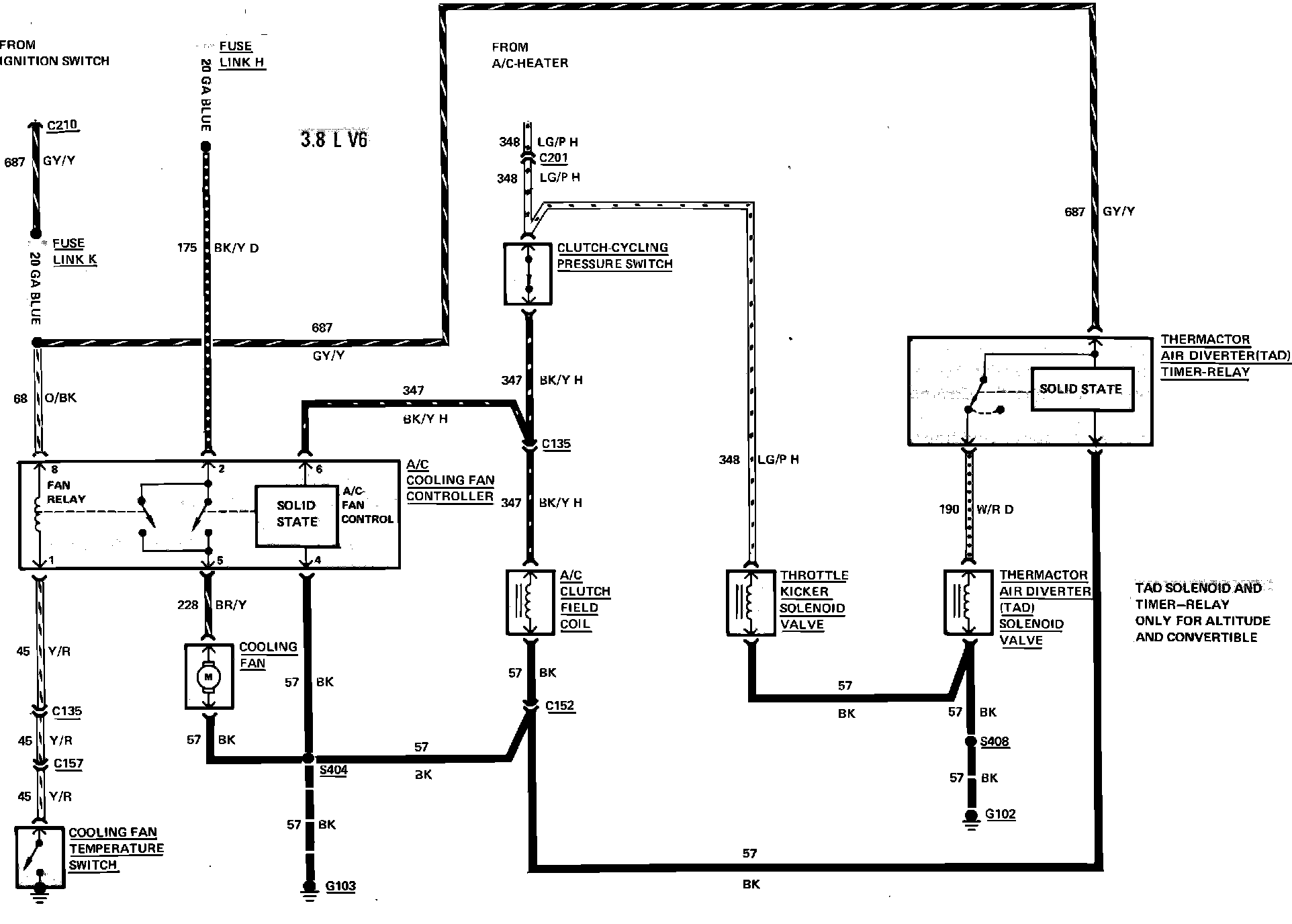

Fig. 8 Air conditioning compressor clutch & cooling fan wiring circuit. 1983 Capri & Mustang with 6 cyl engine:
