Fig. 21 Calib. Code 3-14A-R04 Federal
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

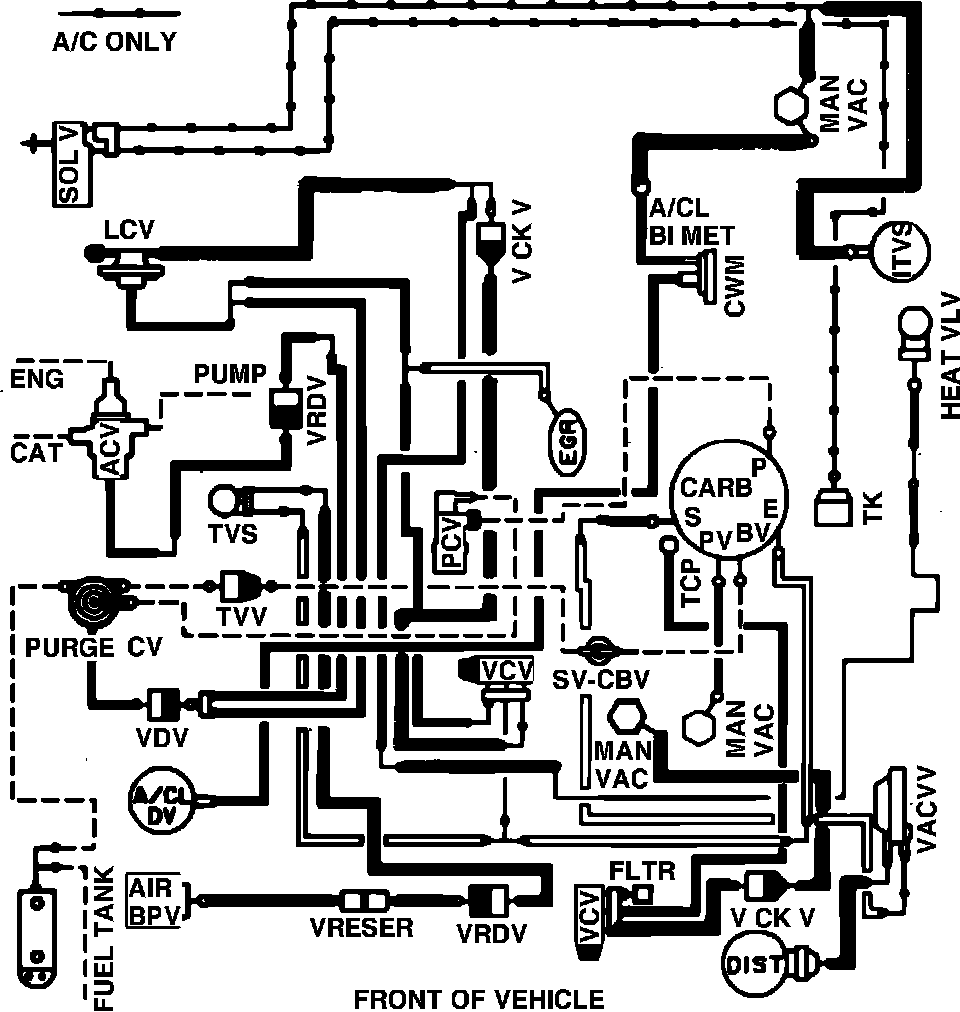

Fig. 21 Calib. Code 3-14A-R04 Federal
Vacuum hose routing:
