Service Point Locations

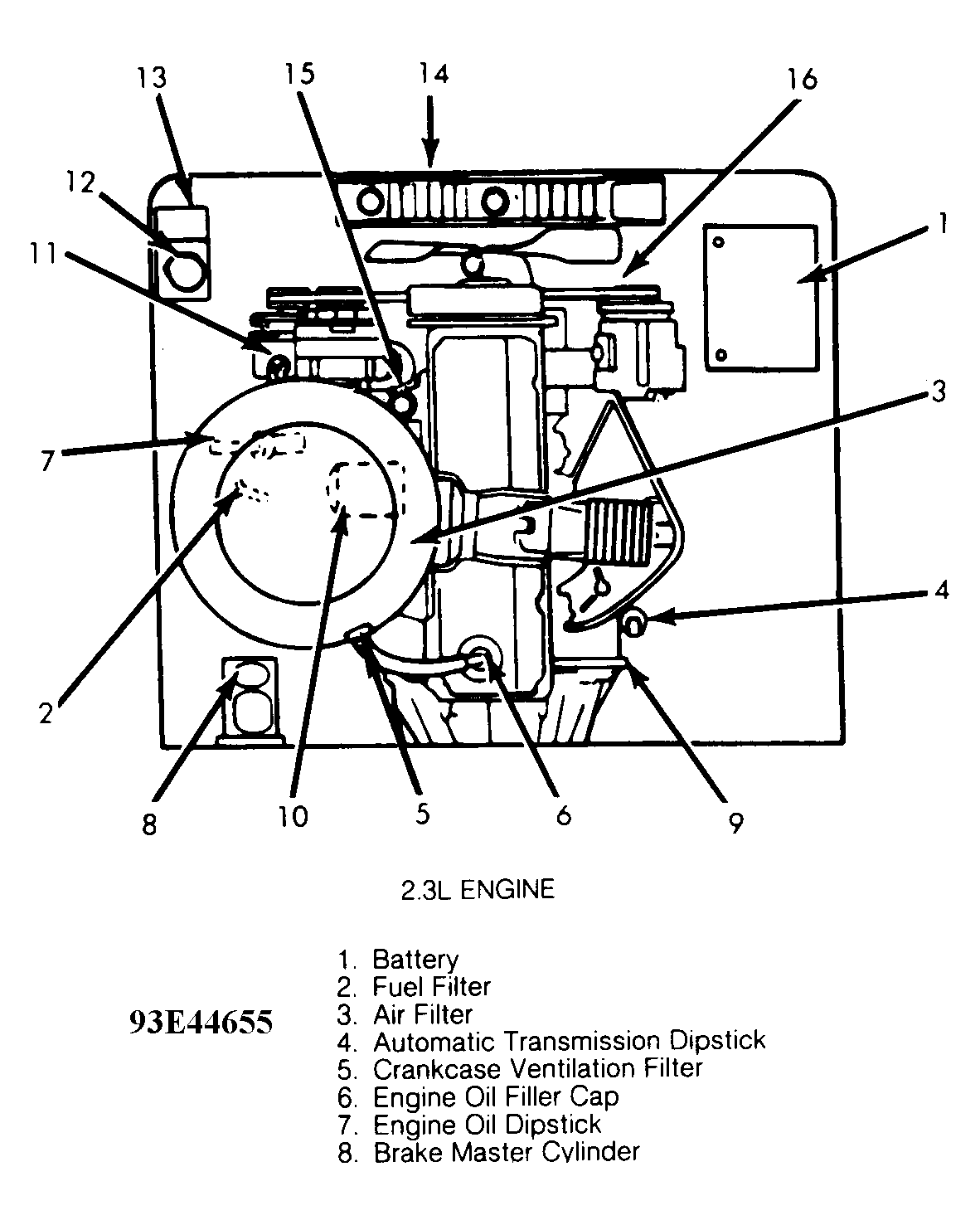

Fig 1: Service Point Locations (2.3L Engine)
G93E44655Courtesy of FORD MOTOR CO.

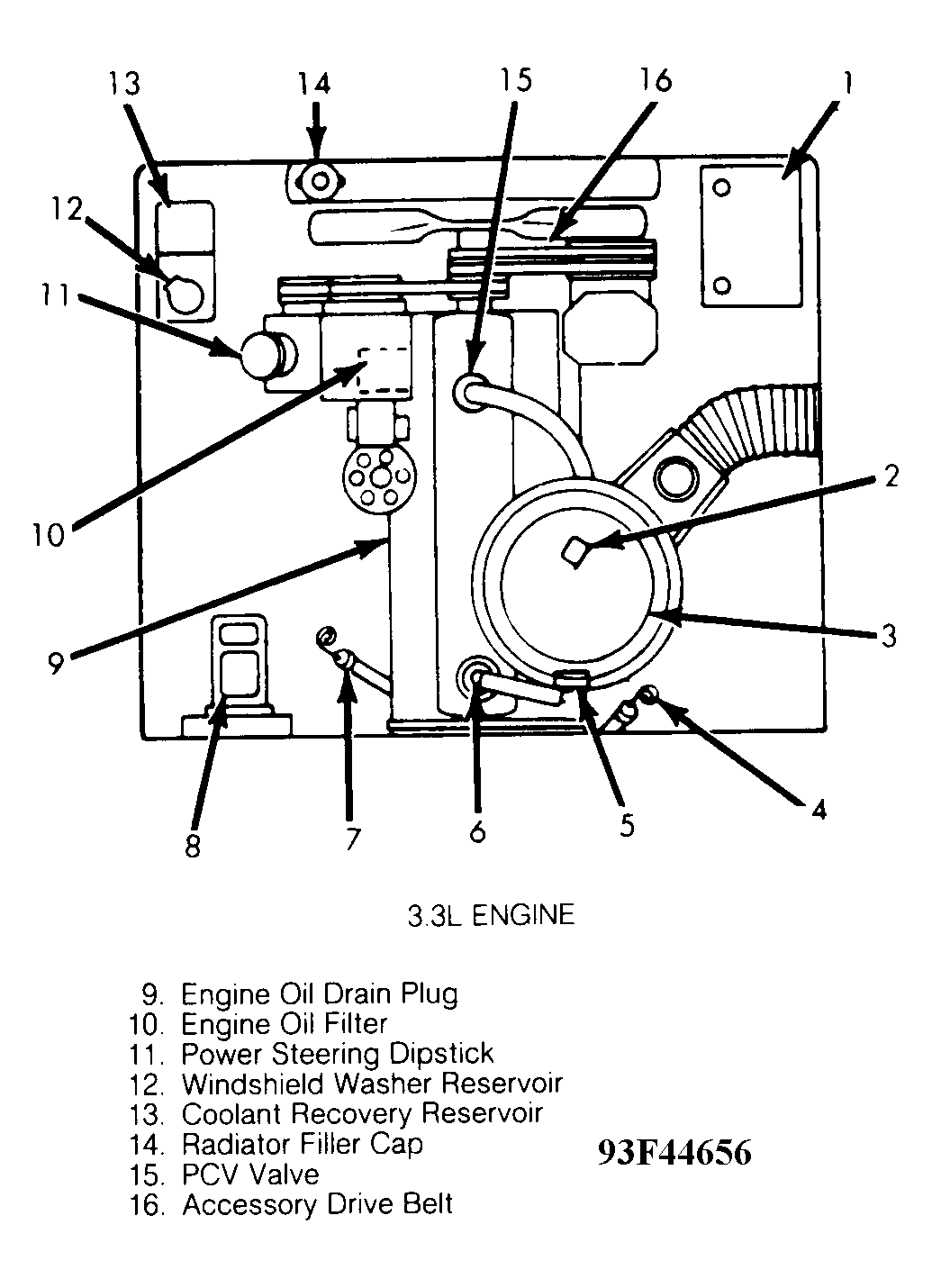

Fig 2: Service Point Locations (3.3L Engine)
G93F44656Courtesy of FORD MOTOR CO.
