Exploded View With Feedback Carburetor

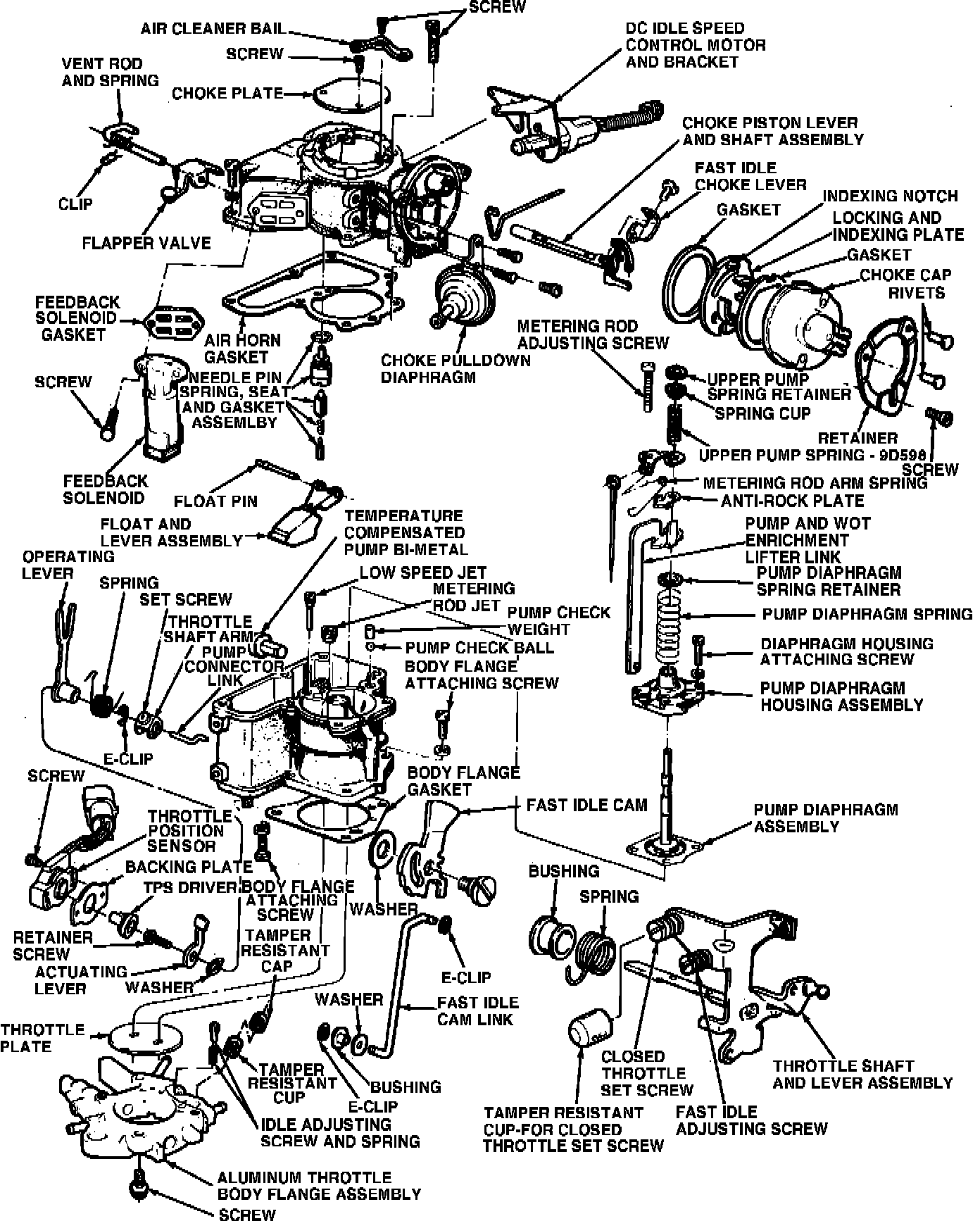

Fig. 2 Exploded view of Carter Model YF series carburetor. 1983 - 86 models w/feedback solenoid (1984 shown, 1983, 85, 86 similar):
