Ignition Timing - Procedure/Diagnostics Correction

89Ford09

Article No. 89-5A-7

IGNITION SYSTEM - TFI-IV AND TFI WITH CCD - REVISED TIMING PROCEDURE AND DIAGNOSTICS
- SHOP MANUAL CORRECTION

FORD: 1989 ESCORT, TEMPO, MUSTANG, TAURUS, AND THUNDERBIRD

LINCOLN-MERCURY: 1989 TOPAZ, CONTINENTAL, SABLE, COUGAR, MARK VII, LINCOLN TOWN CAR, AND GRAND MARQUIS

LIGHT TRUCK: 1989 RANGER, BRONCO II, AEROSTAR, ECONOLINE, BRONCO, AND F-SERIES

ISSUE: The Ignition Systems Timing Procedures and Diagnostics, - "Wiring Harness Test Step" on page 13-47 of the 1989 Engine Emissions Diagnosis Shop Manual, Volume H is incorrect as published.

ACTION: Refer to this TSB for revised wiring harness test step information. This information should be inserted in your 1989 Engine Emissions Diagnosis Shop Manual, Volume H, page 13-47.

OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: "INFORMATION ONLY"
OASIS CODES: 680000

1989

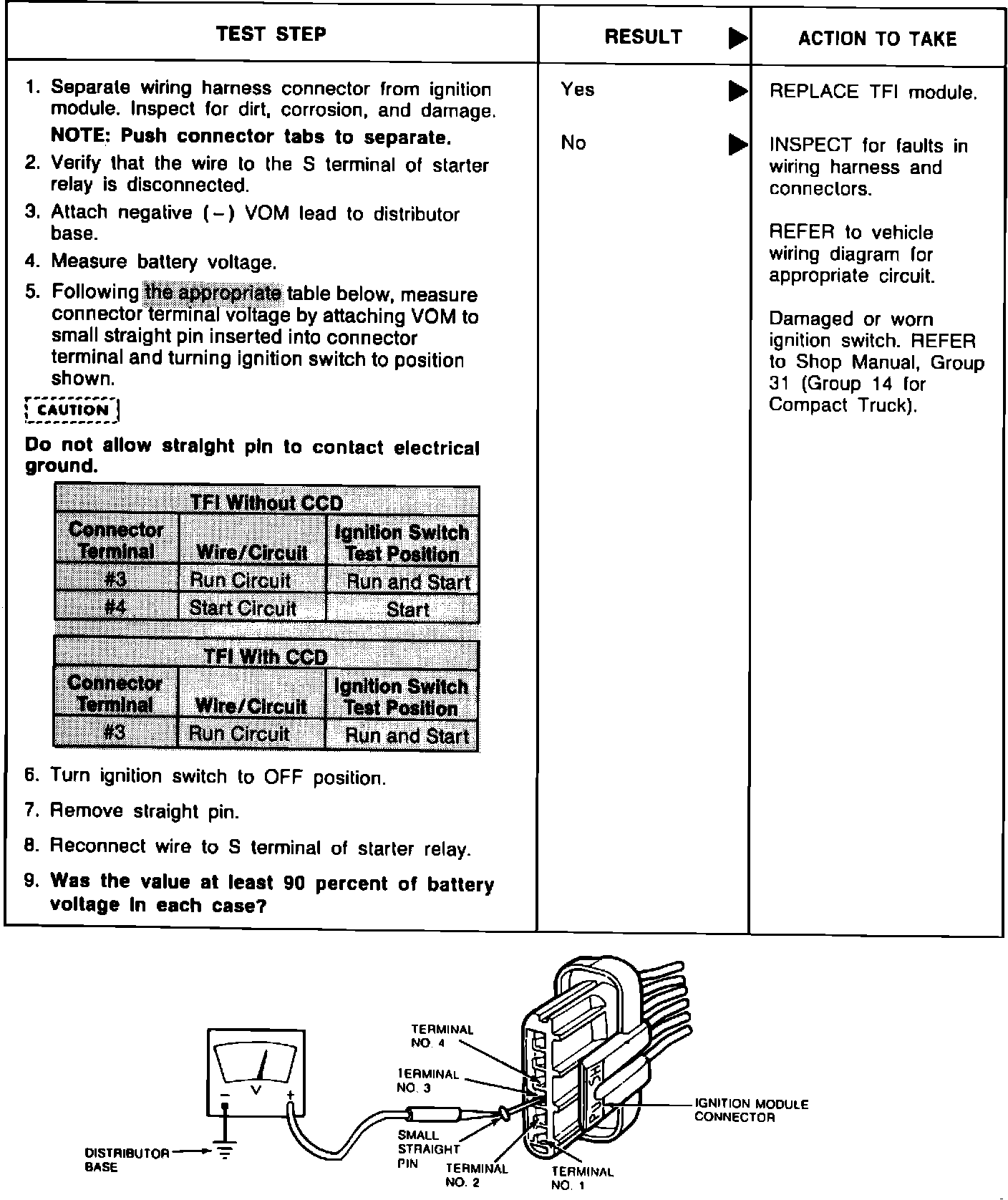

Ignition Systems, Timing Procedures and Diagnostics 13-47




Wiring Harness

TFI-IV

And

TFI With CCD

Part 2

Test 3
1989

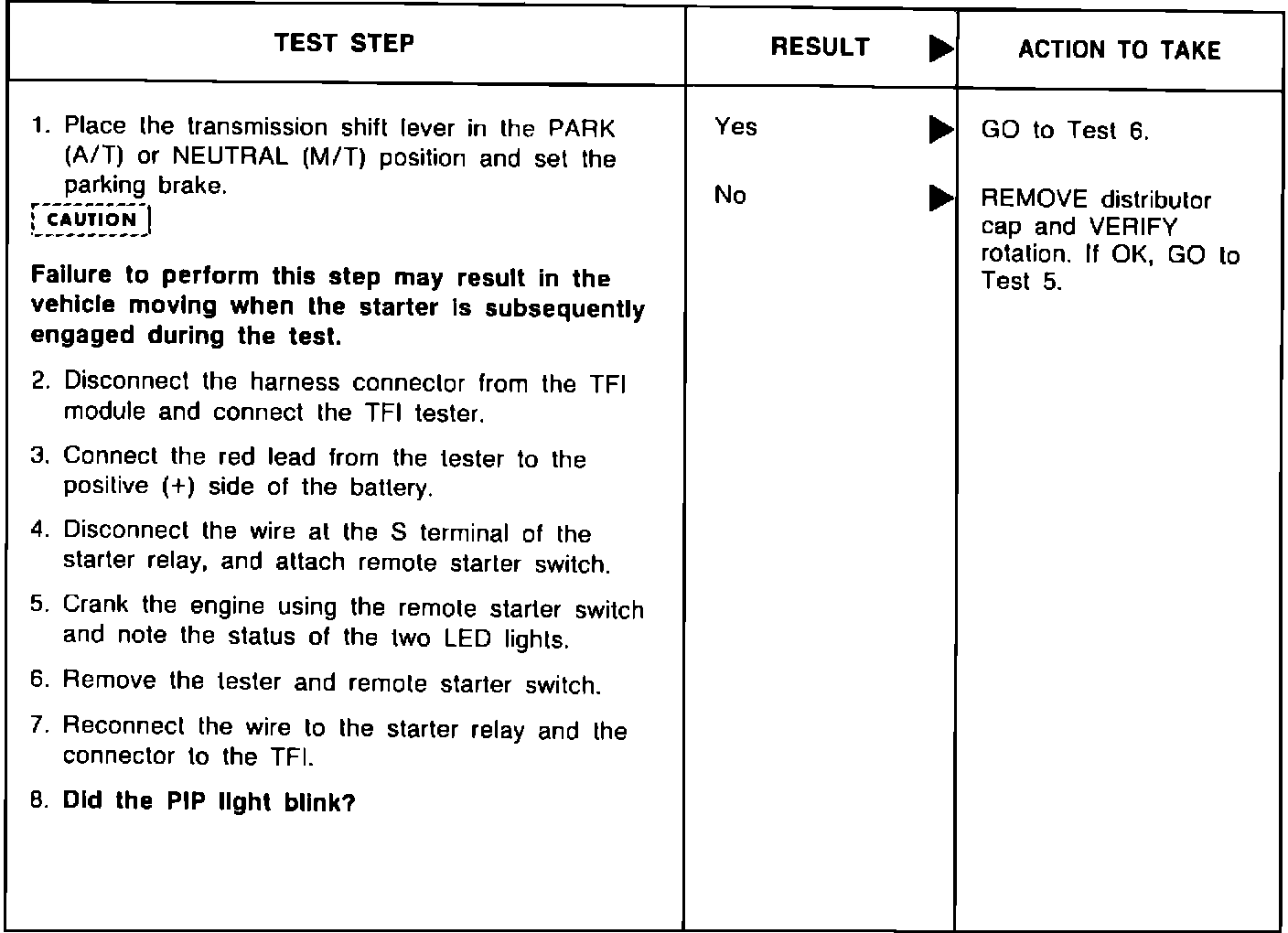

13-48 Ignition Systems, Timing Procedures and Diagnostics



Stator - TFI
TFI-IV

And

TFI With CCD
Part 2

Test 4
