Cabin Temperature Sensor / Switch: Testing and Inspection

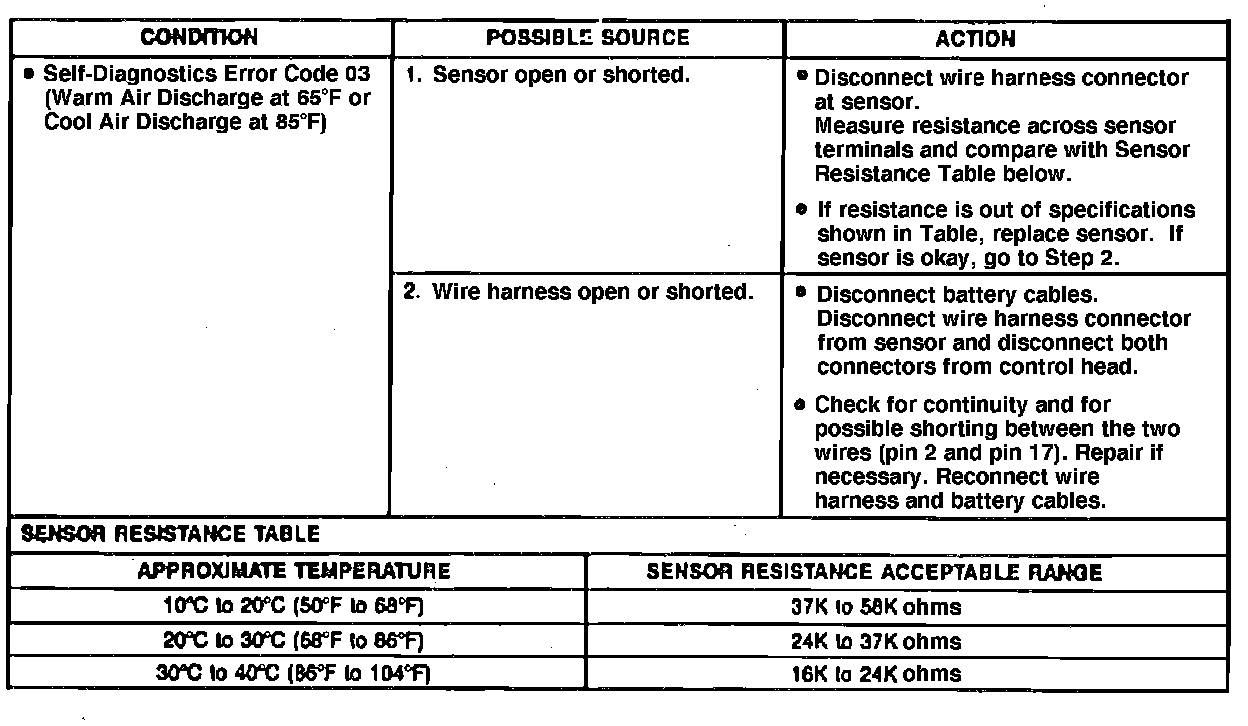

Fig. 6 In Car Temperature Sensor Diagnosis:
