Condenser HVAC: Service and Repair

Fig. 2 Spring lock coupling disconnect & connect:

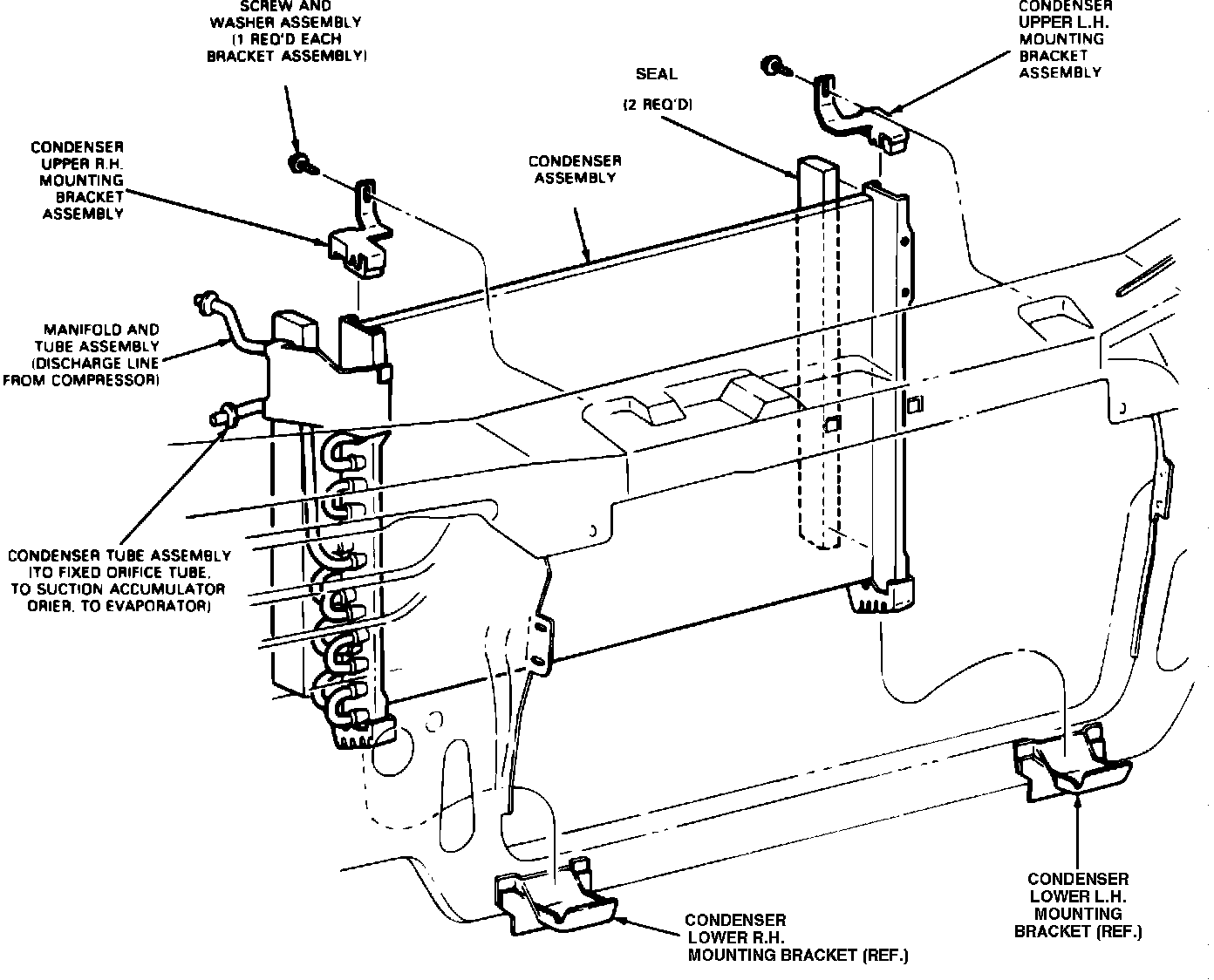

Fig. 5 Condenser assembly removal:

1. Discharge refrigerant from system.
2. Disconnect the two refrigerant lines from right side of radiator, Fig. 2.
3. Remove condenser-to-radiator support attaching bolts and the condenser, Fig. 5.
4. Reverse procedure to install. Leak test, evacuate and charge refrigerant system.
