Drive Belt: Service and Repair

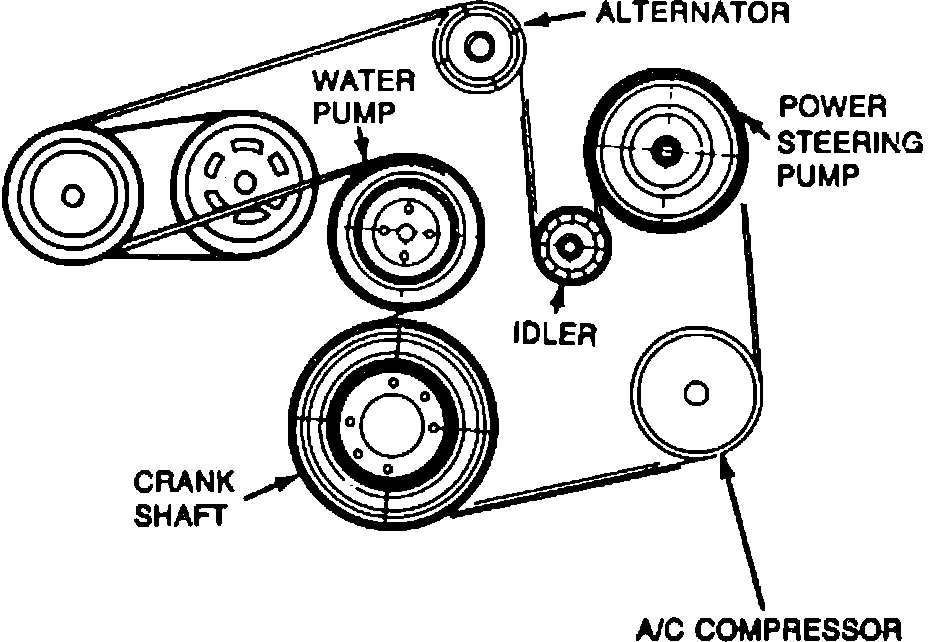

Serpentine Drive Belt Routing:

1. Disconnect battery ground cable.
2. Install suitable 1/2 inch flex handle in square hole in tensioner.
3. Rotate tensioner counterclockwise, then remove belt.
4. Reverse procedure to install.
