Alternator & Regulator: Description

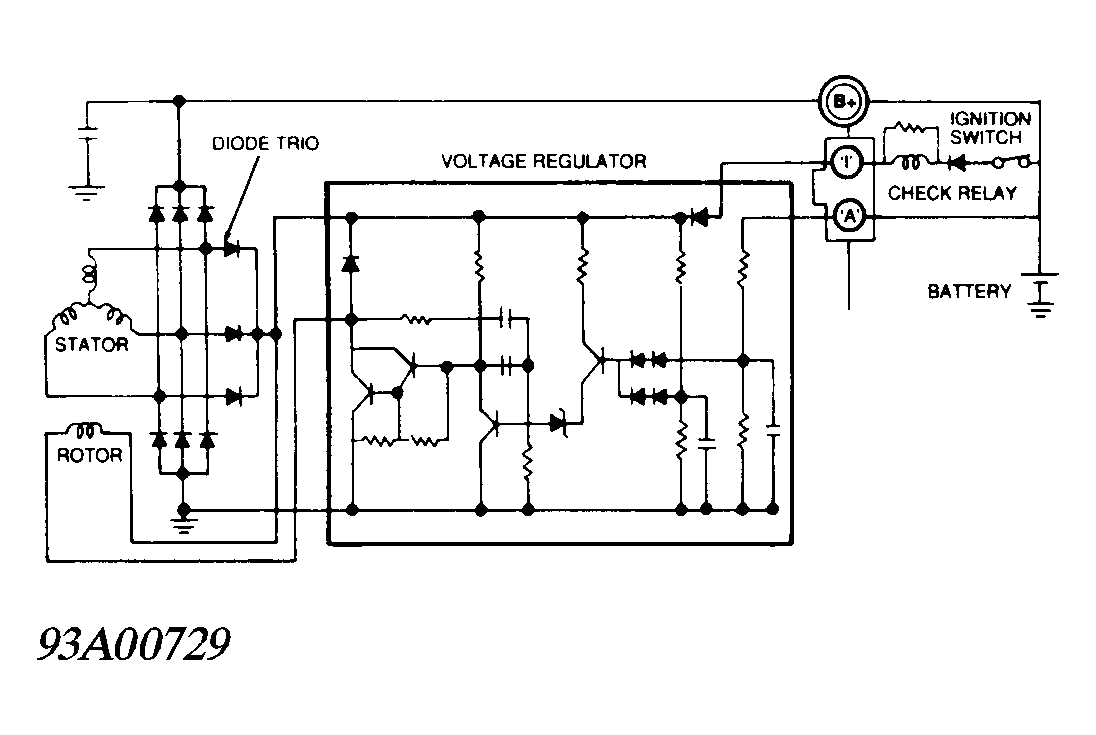

The Mitsubishi alternator is an 85-amp, conventional 3-phase, self-rectifying unit, which contains 3 positive diodes and 3 negative diodes. The integral rear case-mounted regulator is solid-state and contains the brushes. A charge indicator light in the instrument panel indicates charging system malfunctions. See Fig 1.
