Component Locations

COMPONENT LOCATIONS

Component Location
Brake On/Off (BOO) Switch Behind Left Side Of Instrument Panel, Top Of Brake Pedal Support
Ground G110 Engine Compartment, On Left Shock Tower. See Fig 4 .
Ground G200 Behind Left Side Of Instrument Panel. See Fig 5 .
Ground G201 Behind Center Console. See Fig 6 .
Horn Relay In Engine Compartment Left Relay Block
Inhibit Relay In Engine Compartment Left Relay Block. See Fig 8 .
Instrument Panel Fuse Panel Behind Left Side Of Instrument Panel, Left Of Steering Column
Slip Ring Top Of Steering Column, Below Steering Wheel
Speed Control Module Below Center Of Instrument Panel, Mounted On Center Instrument Panel Support Brace
Speed Control Module Relay Left Front Of Engine Compartment
Speed Control Switch In Center Of Steering Wheel

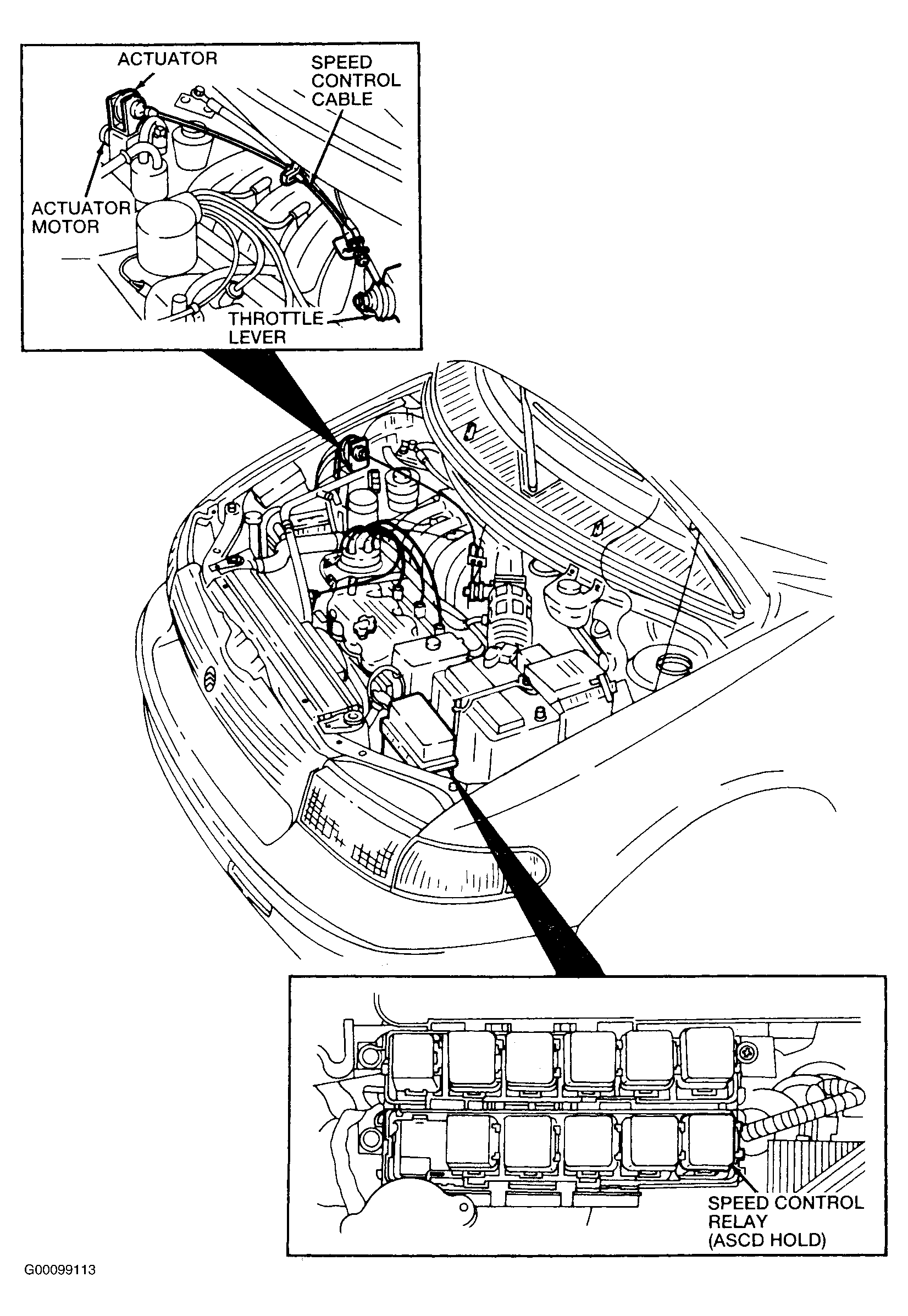

Fig 1: Locating Cruise Control System Components (1 of 2)
G00099113Courtesy of FORD MOTOR CO.

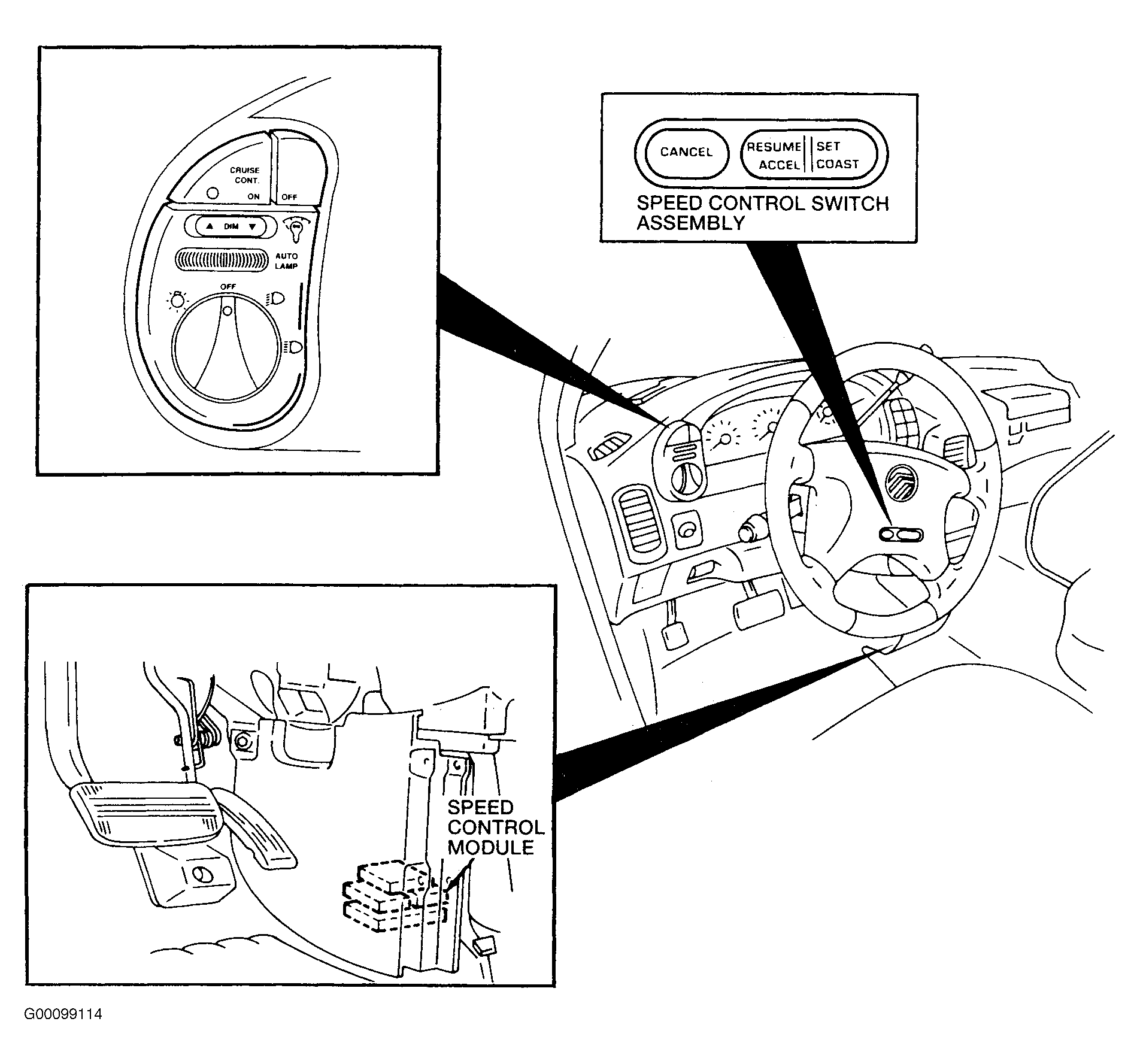

Fig 2: Locating Cruise Control System Components (2 of 2)
G00099114Courtesy of FORD MOTOR CO.

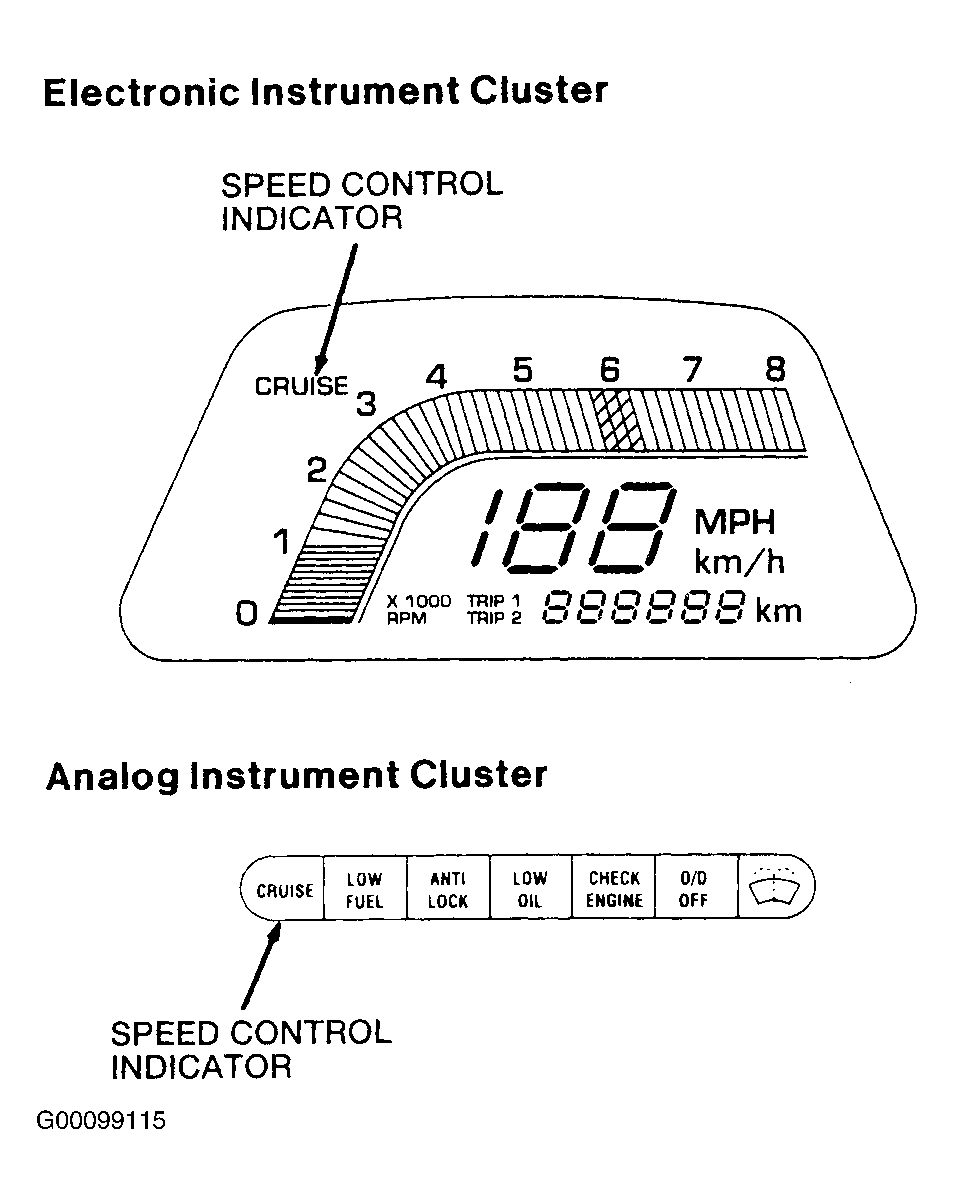

Fig 3: Identifying Cruise Control Indicator
G00099115Courtesy of FORD MOTOR CO.

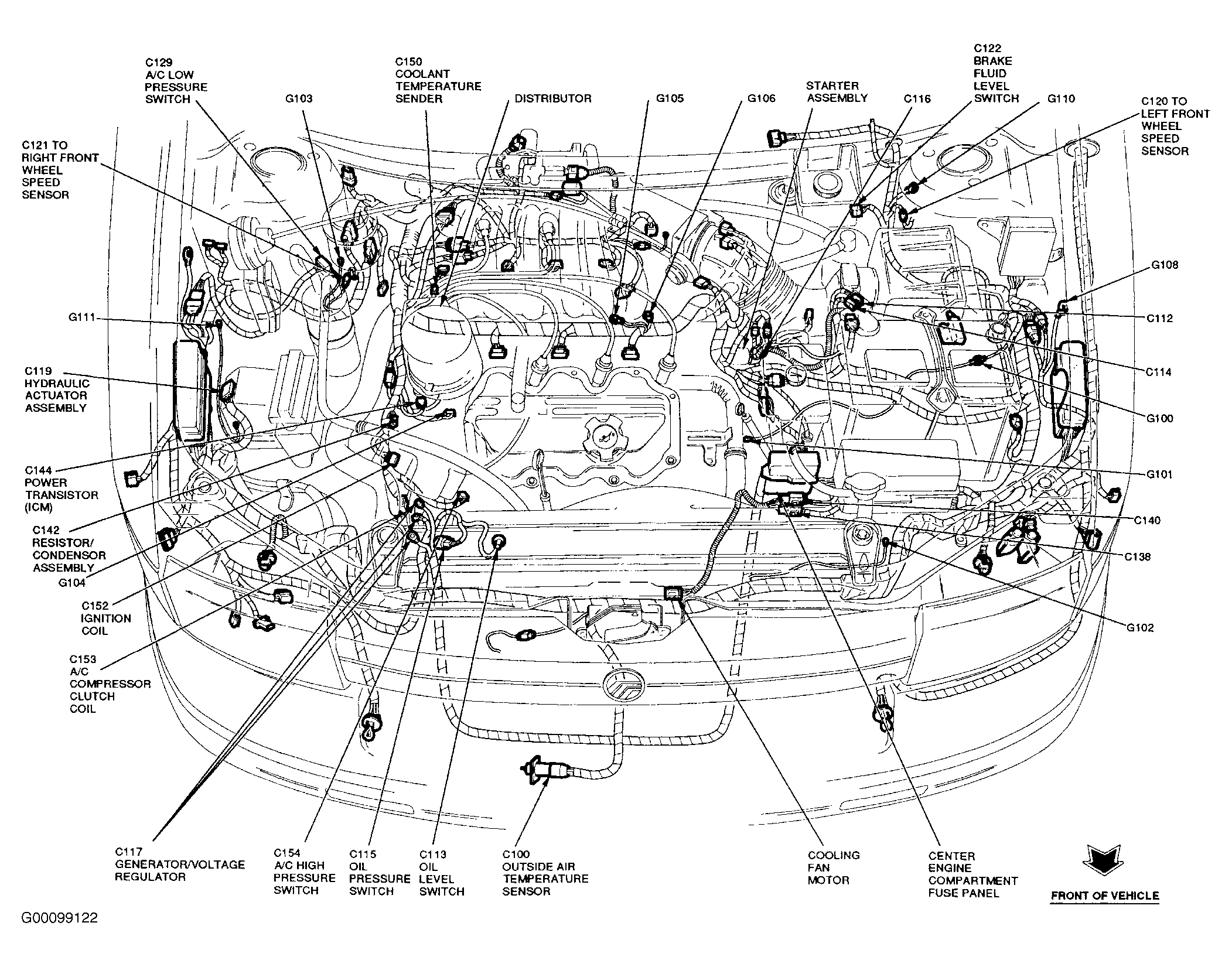

Fig 4: Locating Ground G110
G00099122Courtesy of FORD MOTOR CO.

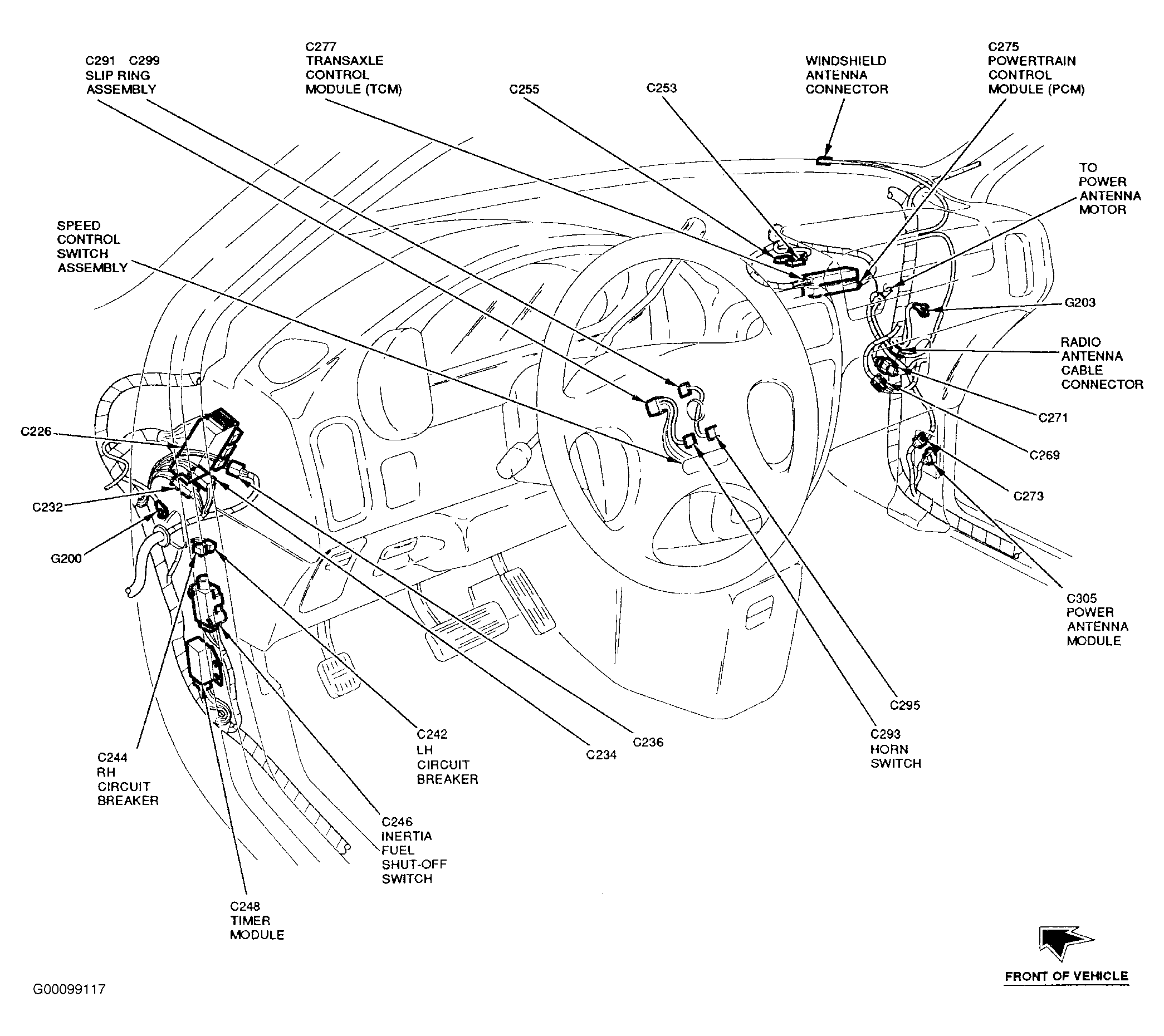

Fig 5: Locating Ground G200
G00099117Courtesy of FORD MOTOR CO.

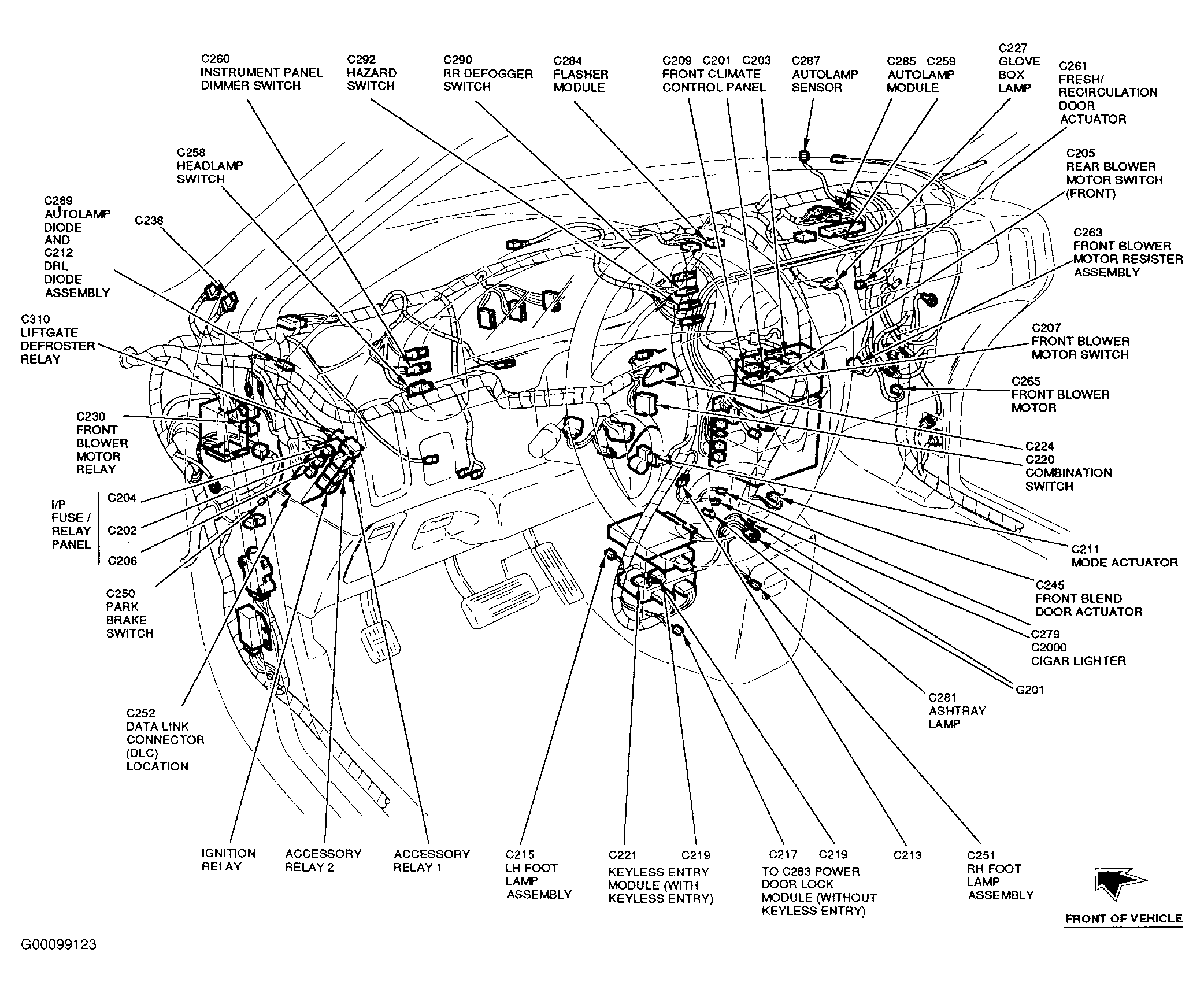

Fig 6: Locating Ground G201
G00099123Courtesy of FORD MOTOR CO.

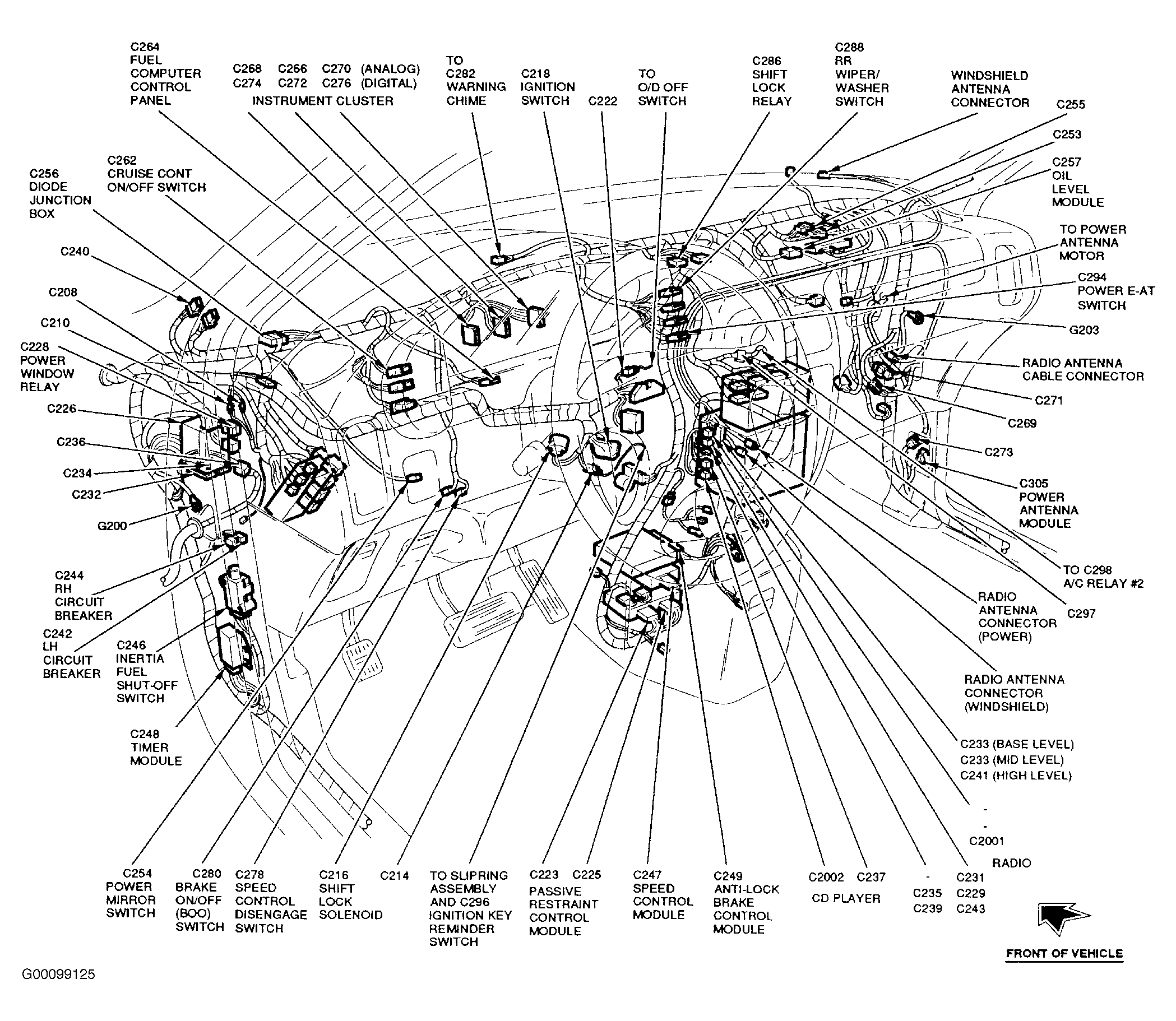

Fig 7: Locating Ground G203
G00099125Courtesy of FORD MOTOR CO.

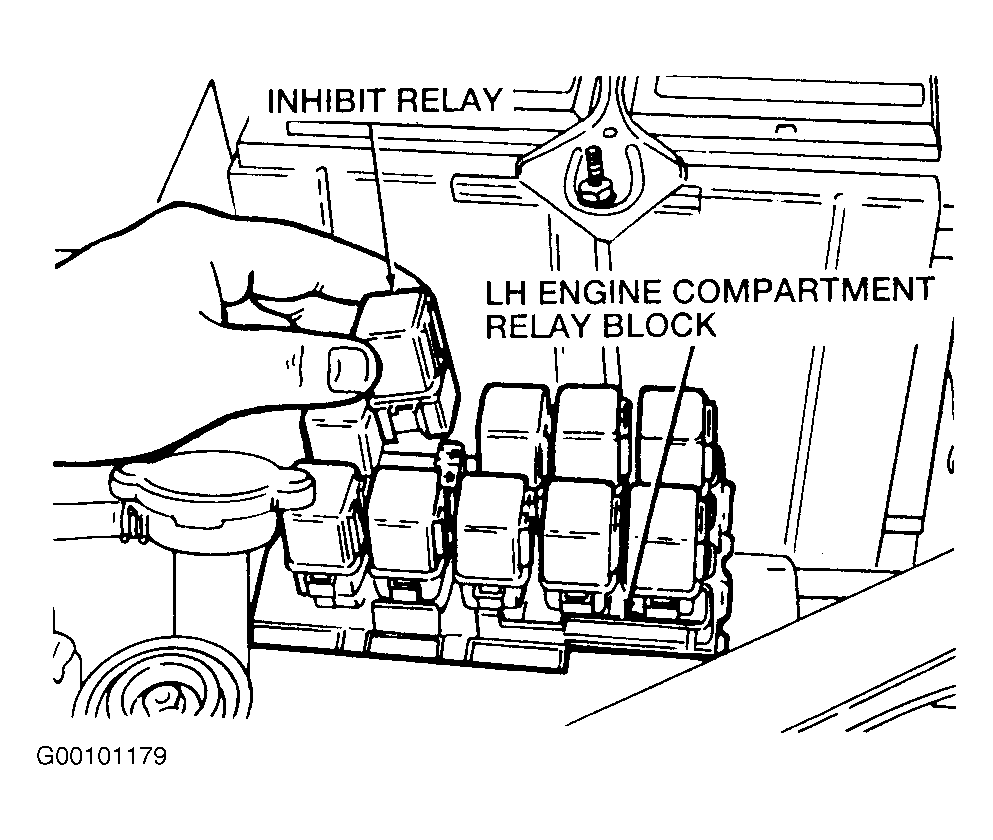

Fig 8: Locating Inhibit Relay
G00101179Courtesy of FORD MOTOR CO.
