Fuel Injection - Diesel: Sensor-Temperature/Pressure-Intake: Removal

WARNING: This page is about a different car, the 2005 Dodge Pickup and 2005 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: IAT/PRESSURE SENSOR LOCATION - 5.9L DIESEL

Courtesy of DAIMLERCHRYSLER CORP.

1 - CLIPS

2 - FILTER COVER

3 - FILTER MINDER(tm)

4 - INLET AIR TEMPERATURE/PRESSURE SENSOR

5 - FILTER HOUSING

The Inlet Air Temperature/Pressure Sensor is located on the air cleaner cover. See Fig 1.

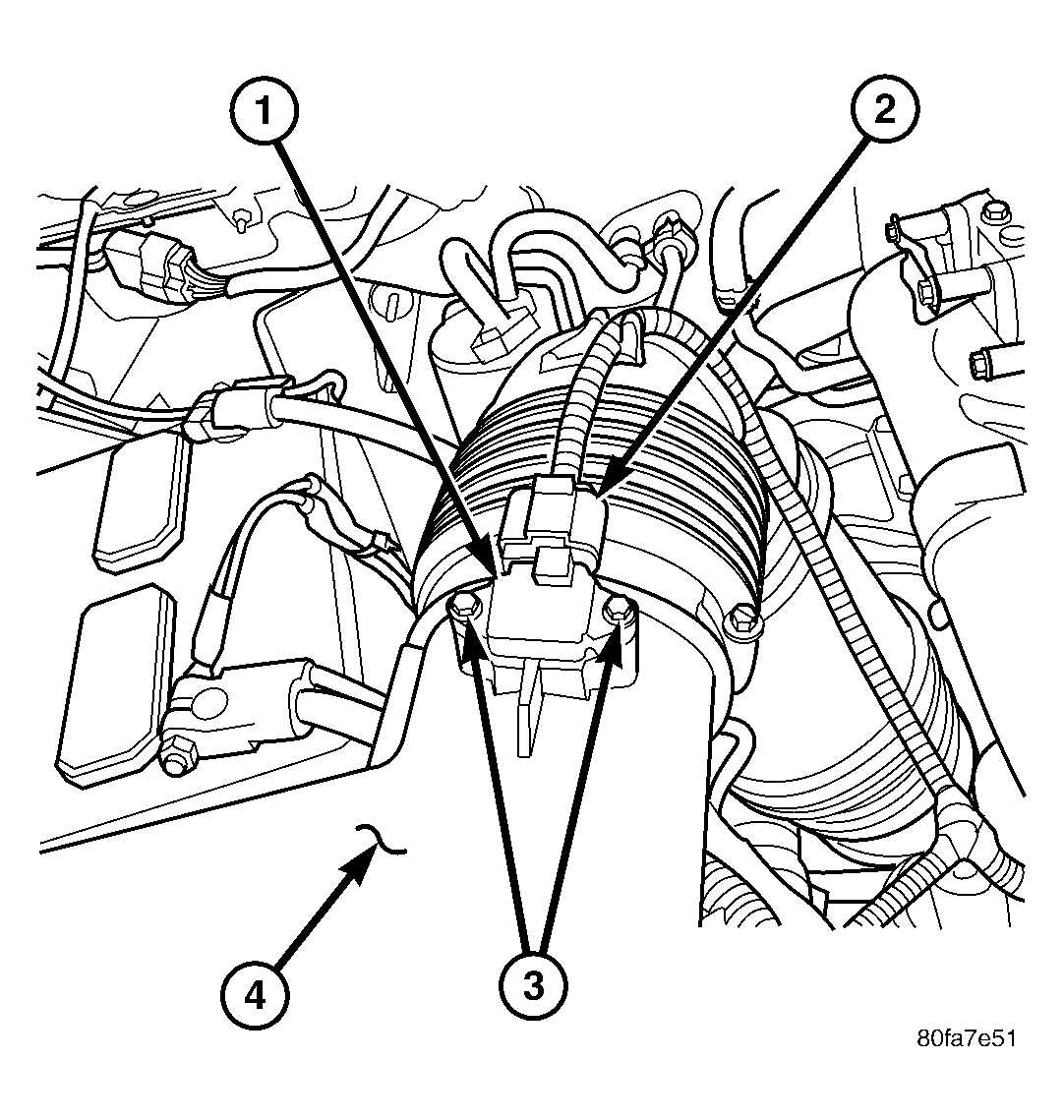

Fig 2: INLET/PRESSURE SENSOR REMOVAL/INSTALLATION

Courtesy of DAIMLERCHRYSLER CORP.

1 - INLET/PRESSURE SENSOR

2 - ELEC. CONNECTOR

3 - SENSOR MOUNTING SCREWS (2)

4 - TOP OF AIR FILTER COVER

Disconnect electrical connector at sensor. See Fig 2.
Remove two Torx-type mounting screws (3).
Remove sensor from air cleaner cover.

Fig 3: SENSOR O-RING
Courtesy of DAIMLERCHRYSLER CORP.

1 - IAT/PRESSURE SENSOR

2 - O-RING
Check condition of sensor o-ring (2). See Fig 3.
