Fuel Injection - Diesel: Sensor-Temperature/Pressure-Map: Description
WARNING: This page is about a different car, the 2005 Dodge Pickup and 2005 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of DAIMLERCHRYSLER CORP.

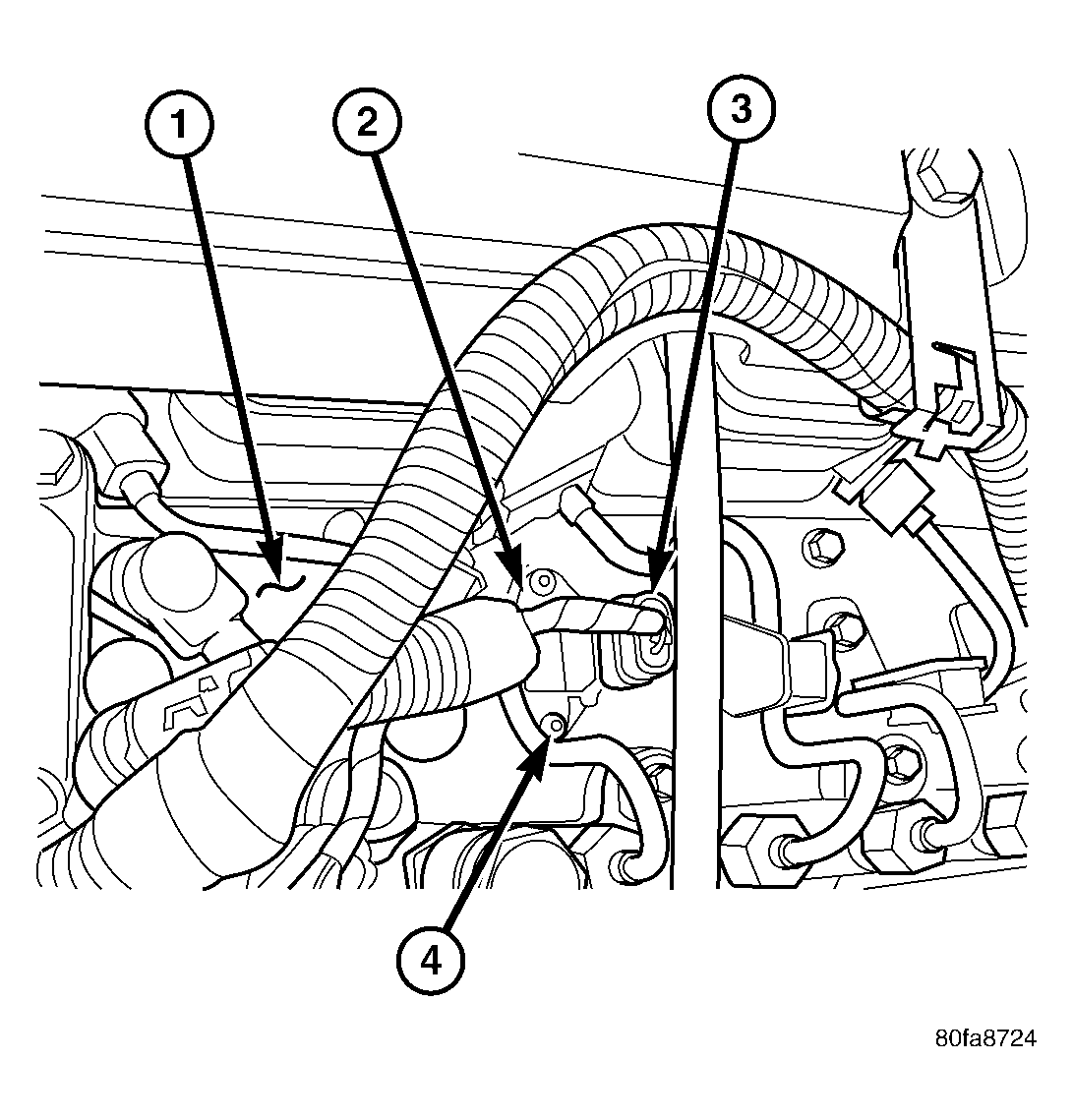

| 1 - TOP OF INTAKE MANIFOLD |
| 2 - IAT/MAP SENSOR |
| 3 - ELEC. CONNECTOR |
| 4 - MOUNTING BOLTS (2) |
The combination, dual function Intake Manifold Air Temperature Sensor/MAP Sensor (2) is installed into the top of the intake manifold.
