Center Console Rear: Installation

  1. Connect wiring harness and position rear console in front console opening. See Fig 2 .
  2. Install front screws in rear console.
  3. Slide front seats completely forward.
  4. Install screws in the back of the rear console. See Fig 1 .
  5. Release parking brake lever.

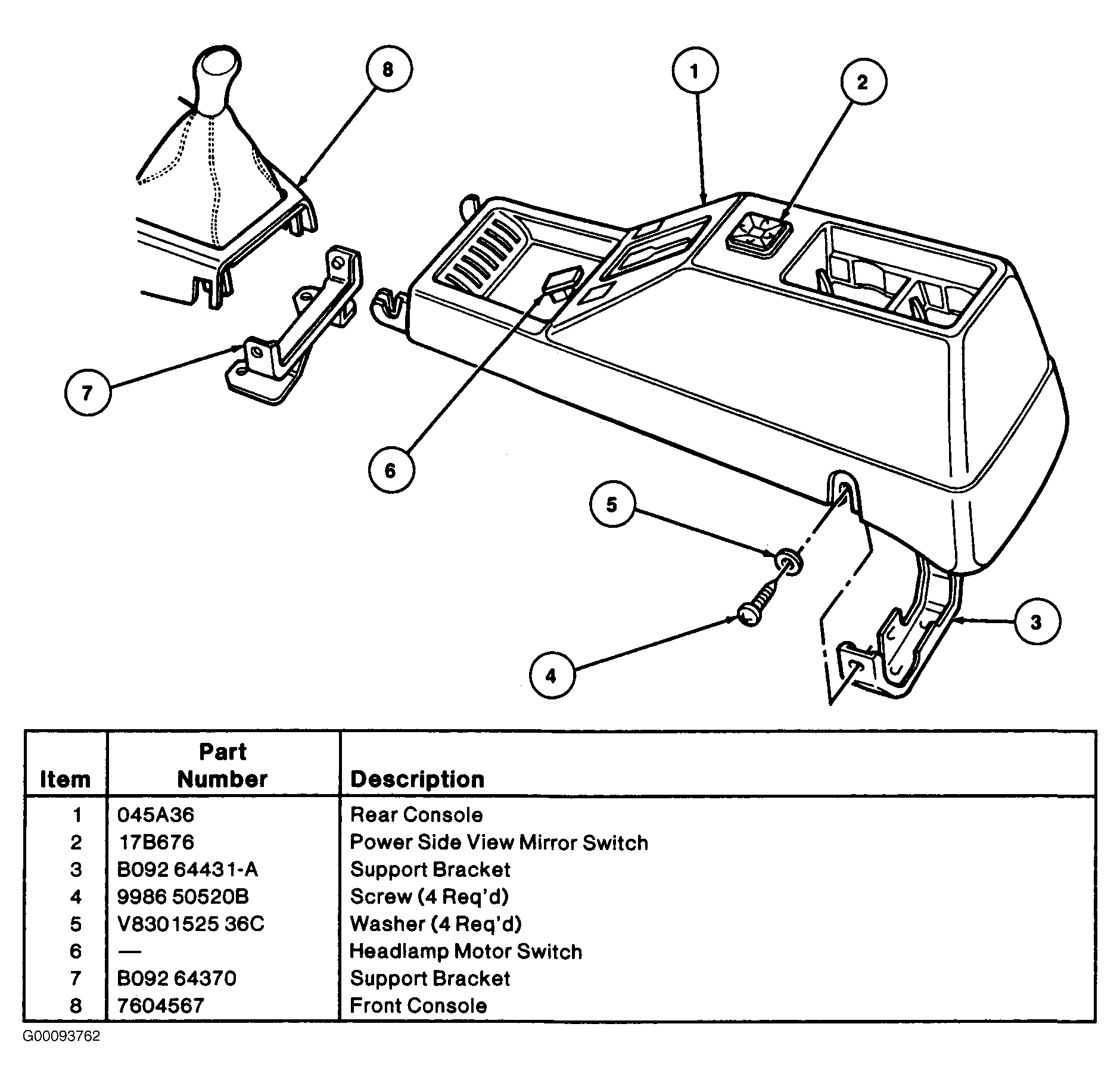

Fig 1: Replacing Center Console
G00093762Courtesy of FORD MOTOR CO.

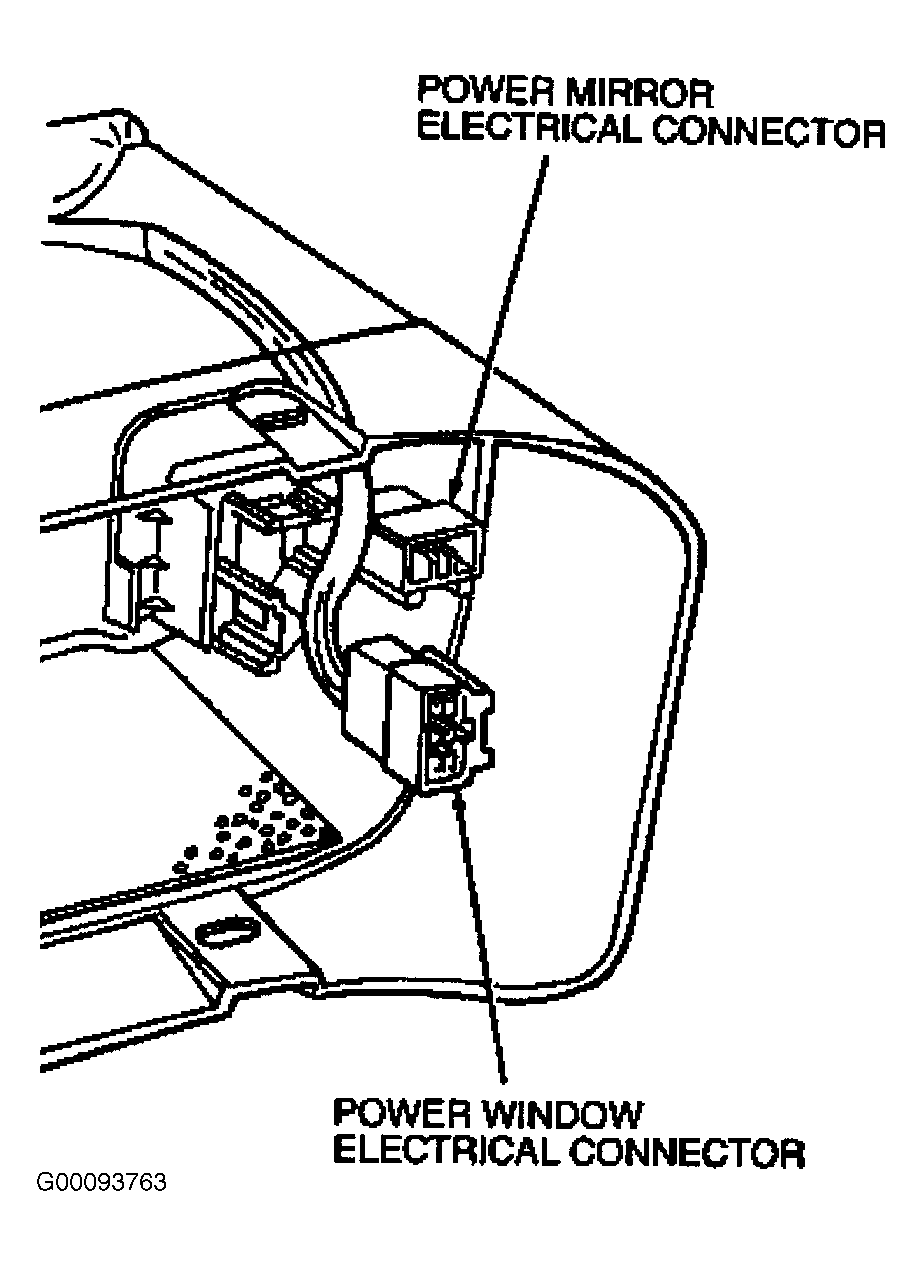

Fig 2: Identifying Connectors
G00093763Courtesy of FORD MOTOR CO.
