Front Wiper/Washer Switch Test

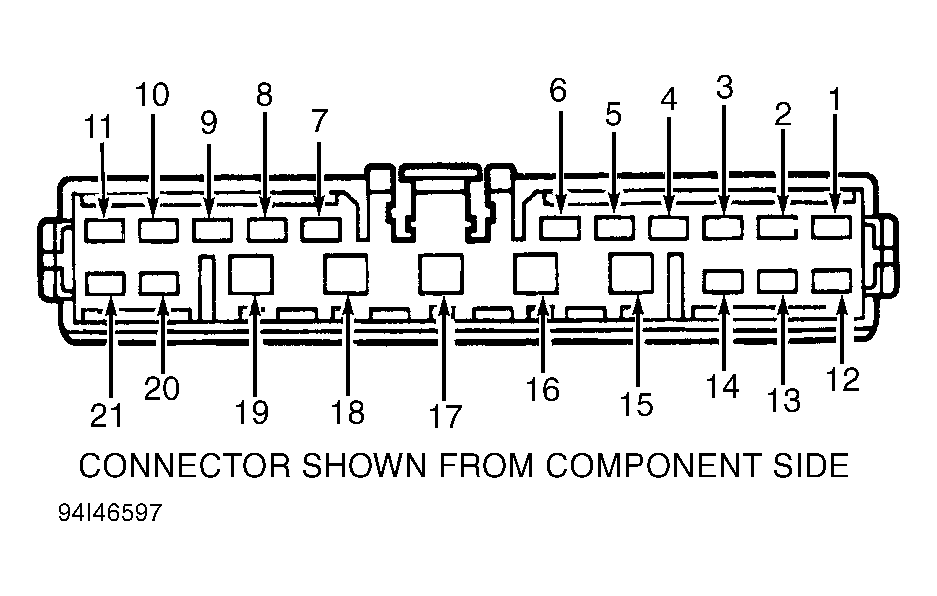

Remove steering column cover. Unplug wiper/washer switch. Test for continuity between specified terminals with wiper switch set to positions listed in table. See FRONT WIPER/WASHER SWITCH TEST table. See Fig 1 . Replace switch if continuity is not as specified.
FRONT WIPER/WASHER SWITCH TEST
| Position | Terminals |
|---|---|
| OFF | 1 - 5 |
| INT | 1 - 5 |
| LOW | 5 - 15 |
| HIGH | 4 - 15 |
| MIST | 4 -15 |
| WASH | 3 - 15 |
Remove lower steering column cover to gain access to wiper switch connector. Check for continuity between terminals listed in table at specified switch positions. See FRONT WIPER/WASHER SWITCH CONTINUITY table. See Fig 2 . If continuity is not as specified, replace wiper/washer switch.
FRONT WIPER/WASHER SWITCH CONTINUITY
| Terminal | Position | Continuity | ||
|---|---|---|---|---|
| BLU - BLU/ORG | Pull Washer Lever | Yes | ||
| BLU/ORG - BLU | Release Washer Lever | No | ||
| BLU - BRN/WHT | Intermittent | Yes | ||
| BLU - BRN/WHT | All Other Positions | No | ||
| BLU - GRN | Low | Yes | ||
| BLU - GRN | High | Yes | ||
| BLU - GRN | All Other Positions | No | ||
| BLU - BLU/RED | High | Yes | ||
| BLU - BLU/RED | All Other Positions | No | ||
| ORG - YEL/RED | Rotate INT Control Knob | (1) | ||
|
||||
