Power Mirror Switch
- Turn the ignition key to the OFF position.
- Remove the power outside rear view mirror control switch. Leave the electrical connector connected.
- Turn the ignition key to the ON position.

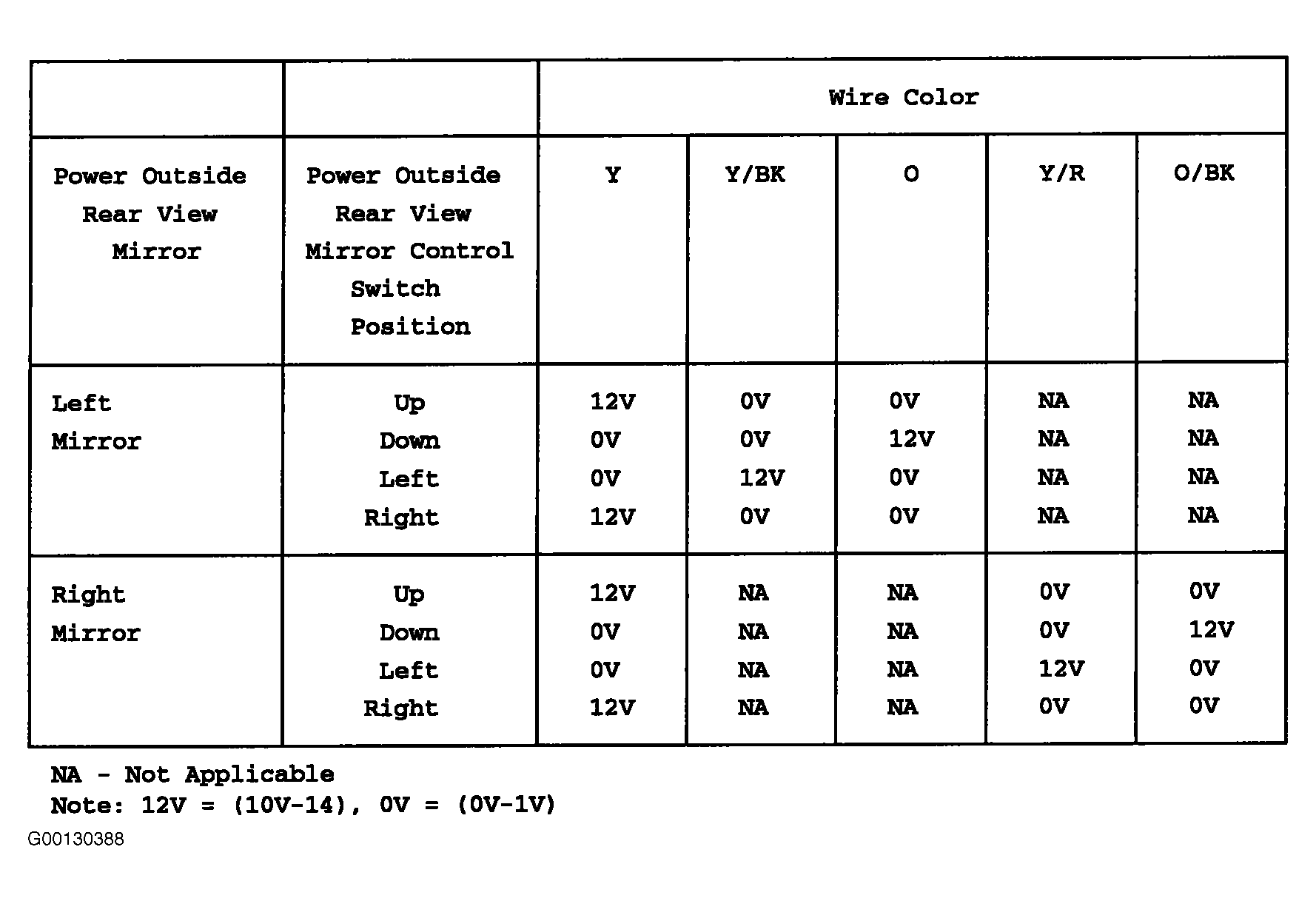

- Check for voltage at the power outside rear view mirror control switch at the specified switch positions. See Fig 1
. When the power outside rear view mirror control switch is in the neutral (resting) position, 0 volts should be on all wires.
- If the voltages are not as specified, replace the power outside rear view mirror control switch. Otherwise, See PINPOINT TEST
.
Courtesy of FORD MOTOR CO.
