Pr7: Check Passive Restraint Control Module Grounds

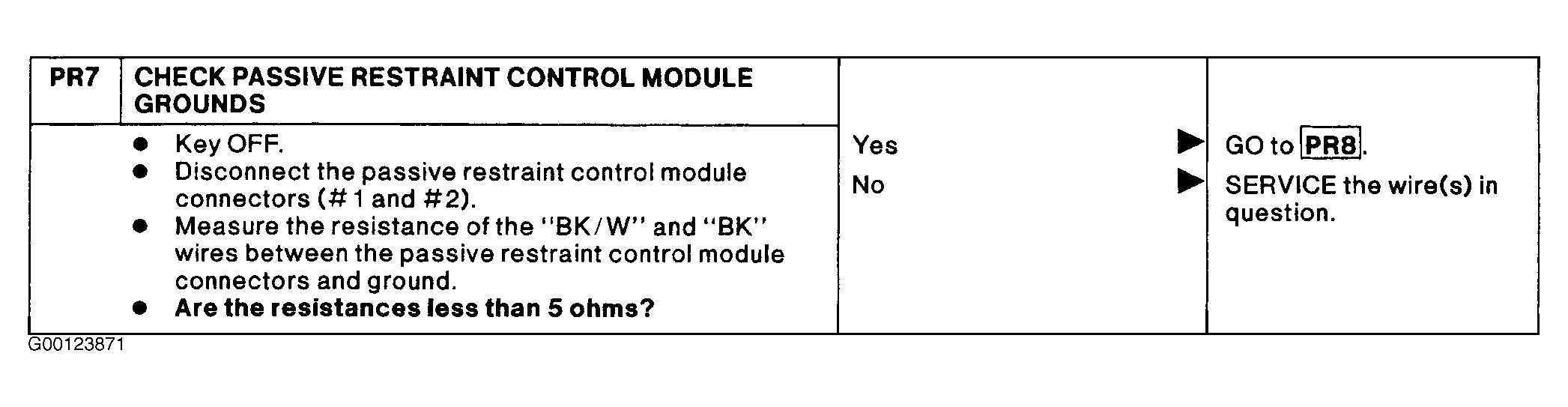

Fig 1: PR7: Checking Passive Restraint Control Module Grounds
G00123871Courtesy of FORD MOTOR CO.
