Home >> Mercury >> 1994 >> Villager V6-181 3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Lighting and Horns >> Headlamp Control Module >> Timer Module

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

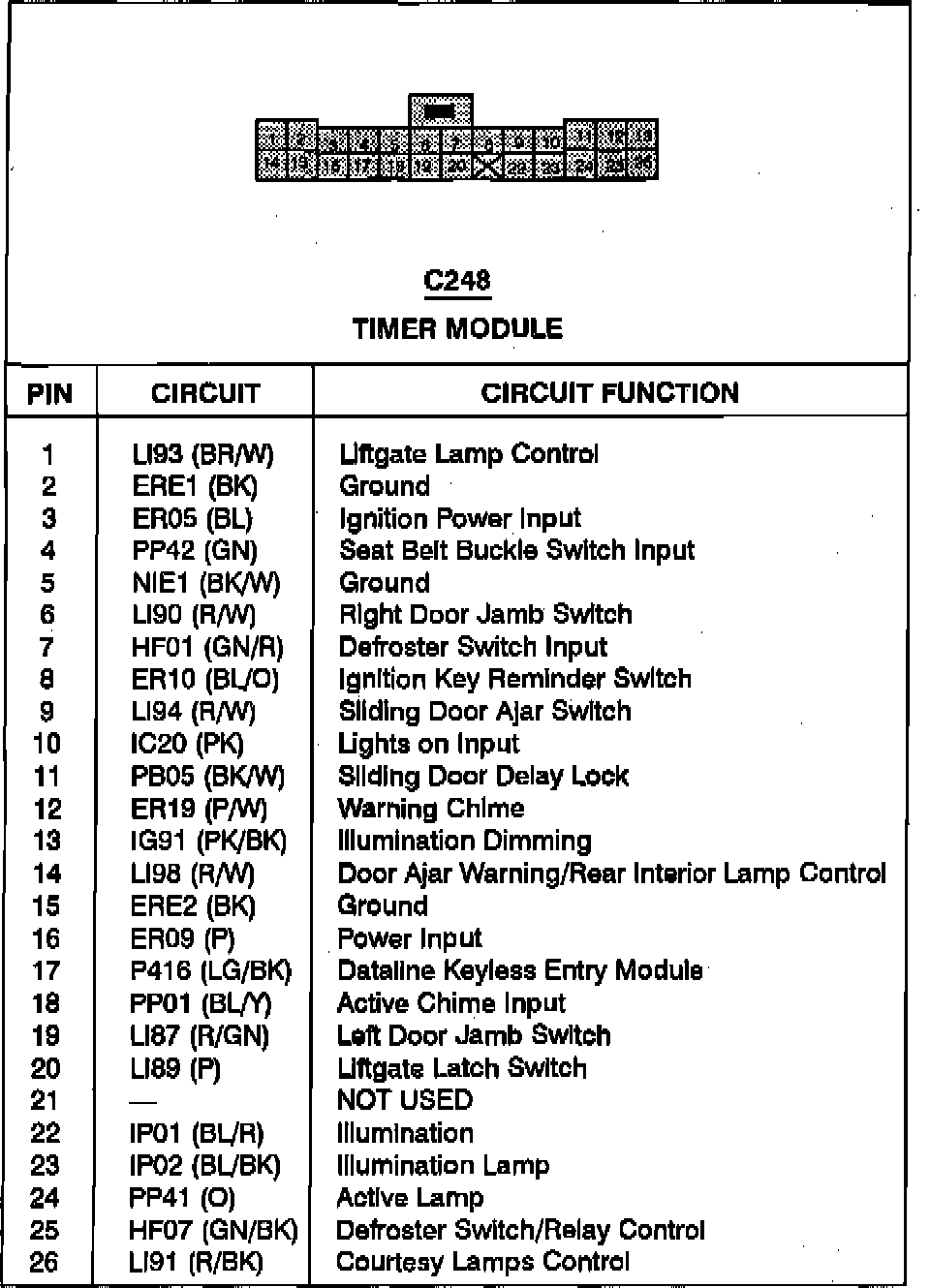

Timer Module

Timer Module:
