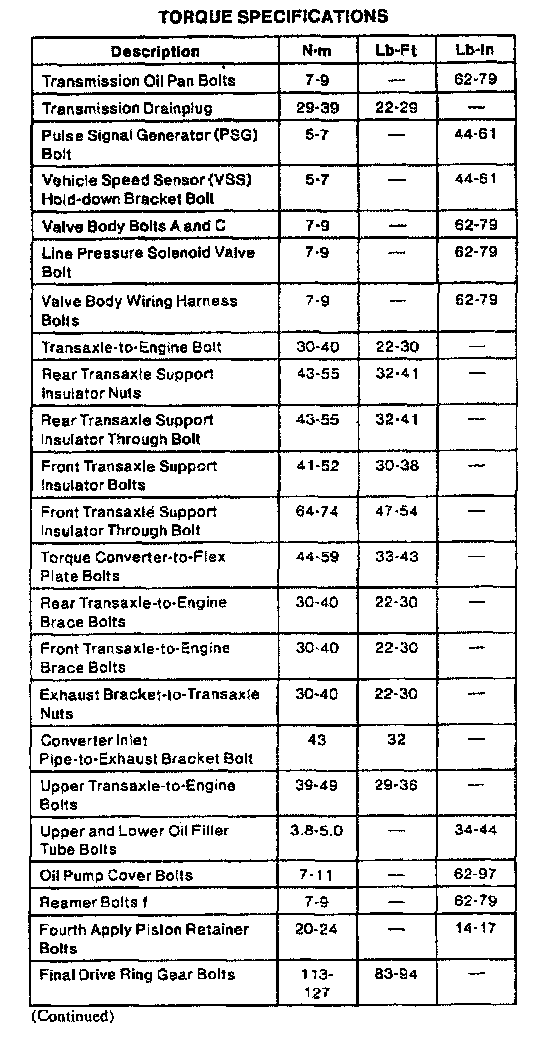

A/T Torque Data

4F20E 4-spd A/T, Transaxle Torque (Villager):





4F20E 4-spd A/T, Transaxle Torque:





4F20E 4-spd A/T, External Controls/Range Switch:
